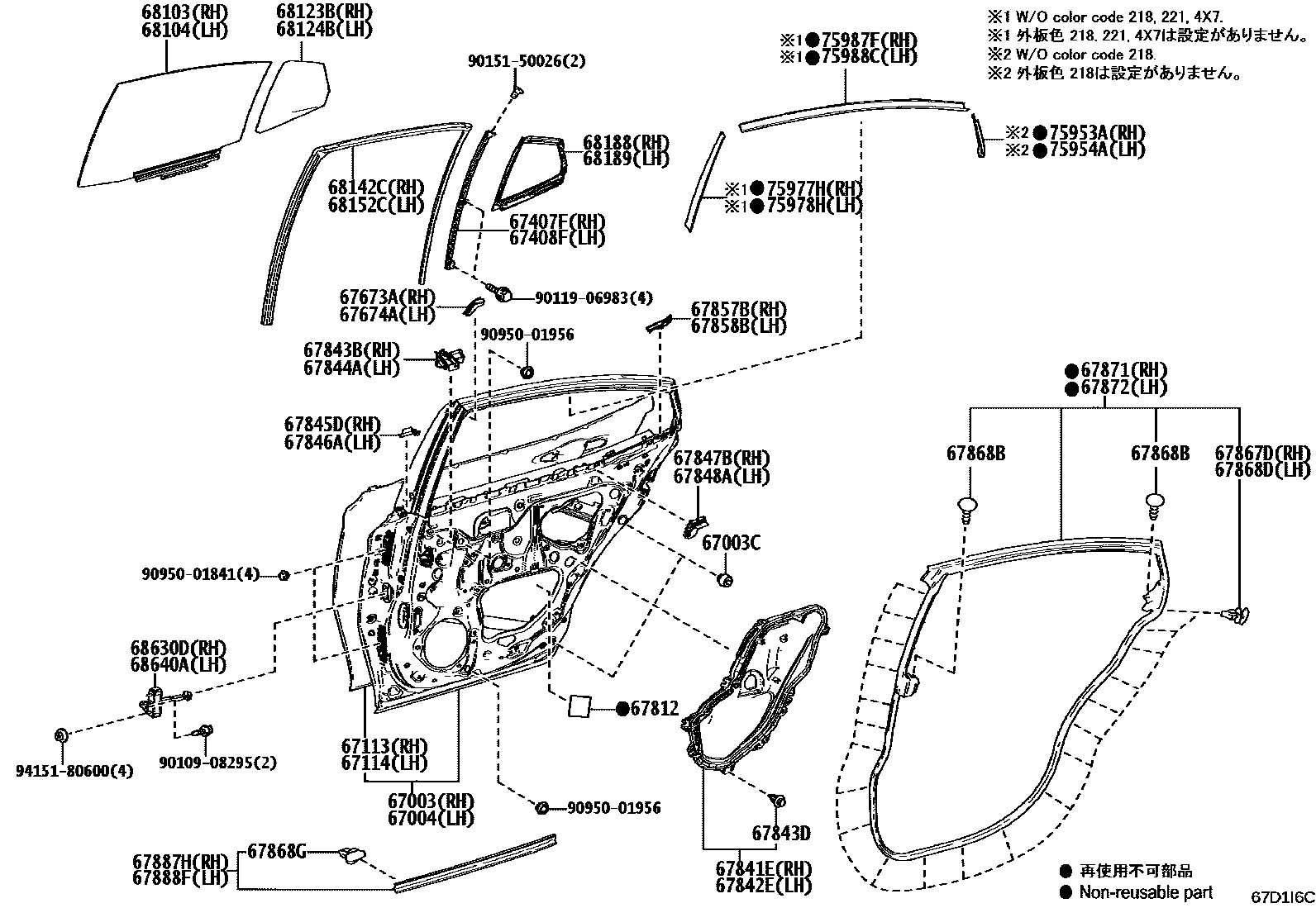

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
main67003-33260supersedes 67003-33320iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
main67004-33290supersedes 67004-33320iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH
67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH
67673AGARNISH, REAR DOOR FRAME, RH
67674AGARNISH, REAR DOOR FRAME, LH
67812PAD, REAR DOOR SILENCER
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67843DCLIP, REAR DOOR SERVICE HOLE
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67845DSEAL, REAR DOOR FRONT OUTSIDE, RH
67846ASEAL, REAR DOOR FRONT OUTSIDE, LH
67847BSEAL, REAR DOOR VENT, RH NO.1
67848ASEAL, REAR DOOR VENT, LH NO.1
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868BCLIP, DOOR GLASS WEATHERSTRIP(FOR REAR DOOR)
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67887HWEATHERSTRIP, REAR DOOR, NO.2 RH
67888FWEATHERSTRIP, REAR DOOR, NO.2 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
PRIVACY PACKAGE
68104GLASS SUB-ASSY, REAR DOOR, LH
PRIVACY PACKAGE
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
PRIVACY PACKAGE
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
PRIVACY PACKAGE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75953ATAPE, BLACK OUT, INNER REAR RH
main75953-33030iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC); AXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC); AXVH80..G..TAIW202406
0 OR 1PIECE,REF.ILL.; UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75954ATAPE, BLACK OUT, INNER REAR LH
main75954-33030iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC); AXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC); AXVH80..G..TAIW202406
0 OR 1PIECE,REF.ILL.; UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
main75977-33040iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC); AXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC); AXVH80..G..TAIW202406
0 OR 1PIECE,REF.ILL.; UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
main75978-33040iAXVA80..G..EUR;AXVH80..LHD..G..(EUR,GCC); AXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC); AXVH80..G..TAIW202406
0 OR 1PIECE,REF.ILL.; UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
main75987-33130supersedes 75987-33140iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
0 OR 1PIECE,REF.ILL.
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
75988CSTRIPE, REAR DOOR, OUTSIDE LH
main75988-33130supersedes 75988-33140iAXVH80..D,N;AXVA80,MXVA80;AXVH80..LHD..G..EUR;AXVH80..G..(ARL,GCC)202406
0 OR 1PIECE,REF.ILL.
UPPER GRADE PACKAGE&ILLUMINATED ENTRY SYSTEM-WITH(ROOM & KEY & INSIDE HANDLE & FOOT)
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095001841
main90950-01841
9095001956
main90950-01956
9415180600
main94151-80600
51 parts on this diagram · 2 diagrams in section
