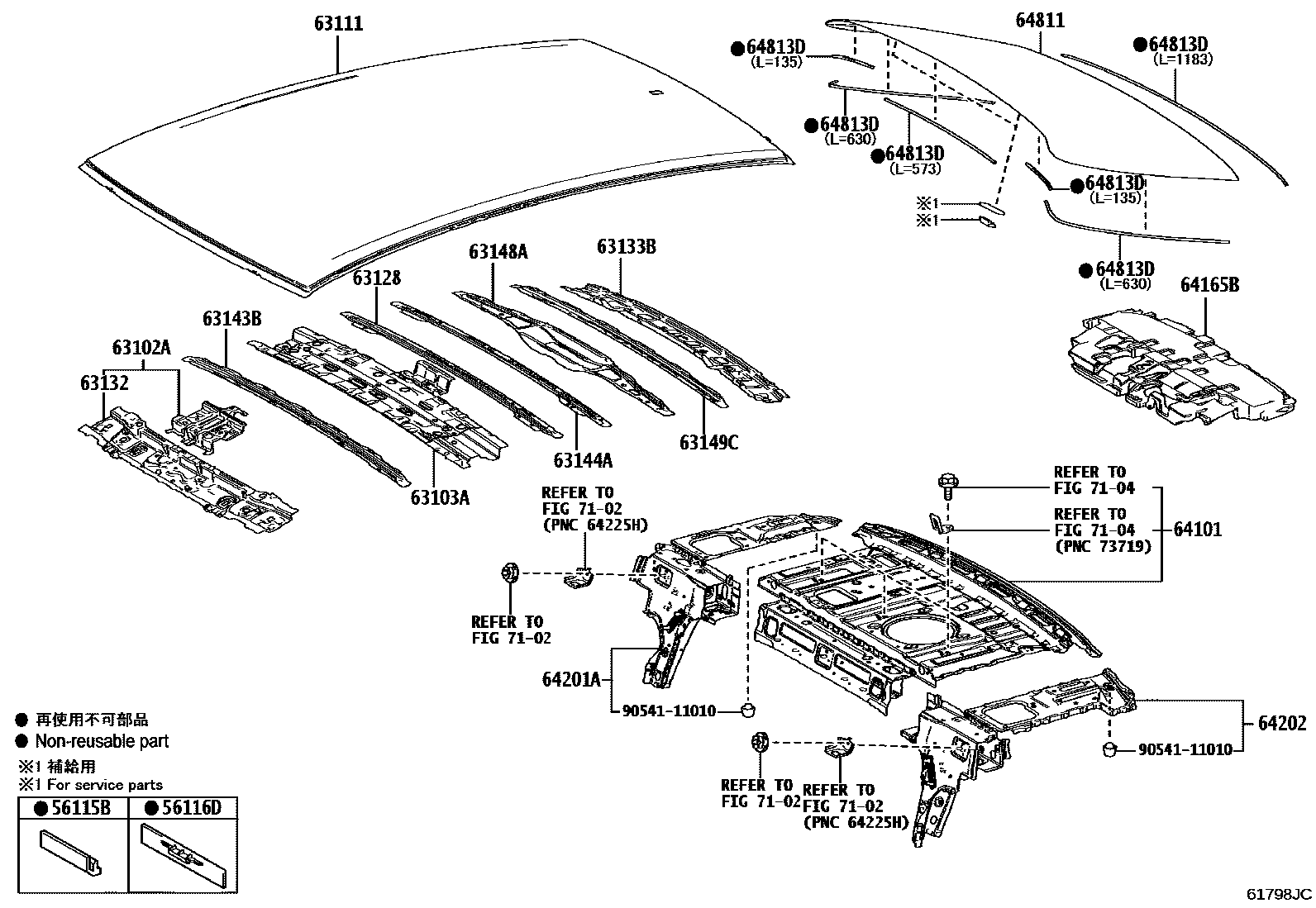

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL:W(ROOM LAMP0002 1ROOF PANEL(NORMAL:W/O(ROOM LA0003 1ROOF PANEL(MOON) 0004 1ROOF PANEL(PANORAMA) 0005 1SLIDING ROOF PANEL(MOON ROOF)0006 1SLIDING ROOF PANEL(PANORAMA R

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120iAXVA80,AXVH80,MXVA80202406

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050iAXVA80,AXVH80,MXVA80202406

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-33290iAXVH80..LHD..G..EUR202406

KOREA SPEC&UPPER GRADE PACKAGE&WITHOUT(REMOTE AIR CONDITIONER PACKAGE)

main63102-33909supersedes 63102-33909iAXVA80,AXVH80..D;AXVA80,MXVA80..EUR,TAIW;AXVH80..N..(ARL,EUR,TAIW);AXVH80..LHD..G..(EUR,TAIW)202406

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-33030iAXVH80..LHD..G..EUR;AXVH80..N..(ARL,EUR)202406

main63103-33080supersedes 63103-33080iAXVH80..LHD..EUR202406

KAZAKHSTAN SPEC&WITHOUT(REMOTE AIR CONDITIONER PACKAGE)

main63103-33110iAXVA80,AXVH80..D202406

main63103-33100iAXVH80..N..ARL202406

NEW ZEALAND SPEC&VALUE PACKAGE&WITHOUT(REMOTE AIR CONDITIONER PACKAGE)

63111PANEL, ROOF

main63111-33310supersedes 63111-33310iAXVH80..LHD..EUR202406

EGYPT SPEC

main63111-33460iAXVA80..EUR;AXVH80..LHD..G..EUR;AXVH80..N..(ARL,EUR)202406

UAE SPEC&WITH(REMOTE AIR CONDITIONER PACKAGE)

main63111-33470supersedes 63111-33420iAXVA80..N..GCC202406

UAE SPEC&WITH(REMOTE AIR CONDITIONER PACKAGE)

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-33030supersedes 63128-33030iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

63132PANEL, WINDSHIELD HEADER, INNER

main63132-33110supersedes 63132-33110iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

63133BFRAME, BACK WINDOW

main63133-33130supersedes 63133-33130iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-33110supersedes 63143-33110iAXVA80,AXVH80..D;AXVA80,MXVA80..EUR,TAIW;AXVH80..N..(ARL,EUR,TAIW);AXVH80..LHD..G..(EUR,TAIW)202406

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-33150supersedes 63144-33150iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-33070supersedes 63148-33070iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

63149CREINFORCEMENT, ROOF PANEL SIDE, LH

main63149-33040supersedes 63149-33040iMXVA80;AXVH80..D;AXVA80..D,N;AXVH80..N..(ARL,EUR,TAIW);AXVA80,AXVH80..LHD..G..(EUR,TAIW)202406

VALUE PACKAGE&AUDIO-8INCH 6SPEAKER

64101PANEL SUB-ASSY, UPPER BACK

main64101-33350iAXVA80,AXVH80,MXVA80202406

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-33100iMXVA80;AXVA80,AXVH80..D,N;AXVA80,AXVH80..LHD..G..EUR202406

main64165-33110iAXVH80..G..ARL202406

main64165-33140iAXVA80,AXVH80..G..(GCC,TAIW)202406

KOREA SPEC

64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH

main64201-33090iAXVA80,AXVH80,MXVA80202406

64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH

main64202-33090iAXVA80,AXVH80,MXVA80202406

64811GLASS, BACK WINDOW

main64811-33913iAXVH80..D,N;AXVA80,MXVA80;AXVH80..G..(EUR,GCC,TAIW)202406

main64811-33915iAXVA80,AXVH80..LHD..EUR202406

PRIVACY PACKAGE

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-64010iAXVA80,AXVH80,MXVA80202406

CUT REQUIRED LENGTH

7102

7104

9054111010

main90541-11010

21 parts on this diagram · 6 diagrams in section
