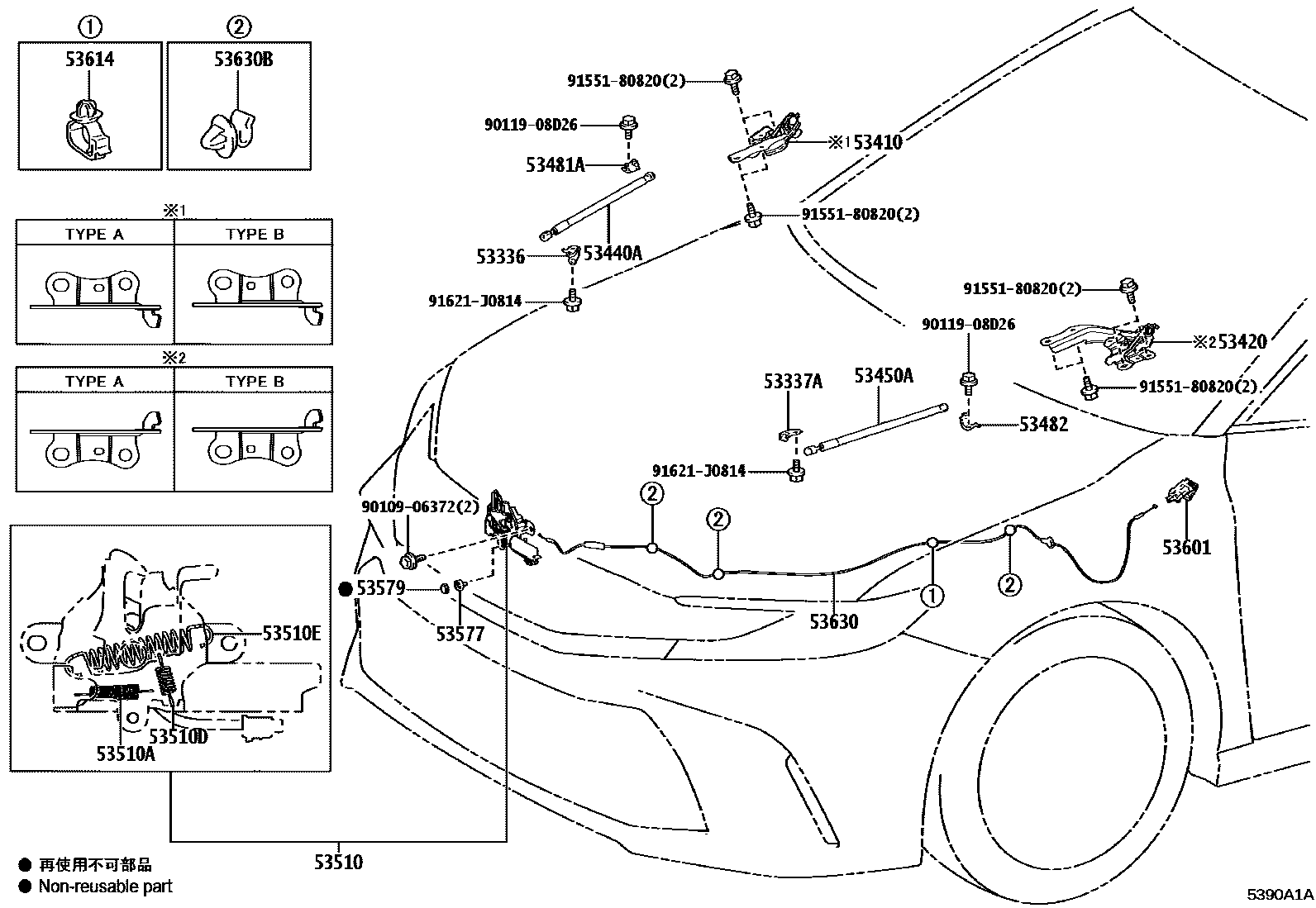

HOOD LOCK & HINGE

0001 1 0002 1

53336BRACKET, HOOD STAY, RH

main53336-33070iAXVA80,AXVH80,MXVA80202406

53337ABRACKET, HOOD STAY, LH

main53337-33050iAXVA80,AXVH80,MXVA80202406

53410HINGE ASSY, HOOD, RH

main53410-33301iAXVA80,AXVH80,MXVA80202406

TYPE A:REFER ILLUST.

main53410-33341iAXVA80,AXVH80,MXVA80202406

TYPE B:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-33301iAXVA80,AXVH80,MXVA80202406

TYPE A:REFER ILLUST.

main53420-33341iAXVA80,AXVH80,MXVA80202406

TYPE B:REFER ILLUST.

53440ASUPPORT ASSY, HOOD, RH

main53440-0W610iAXVA80,AXVH80,MXVA80202406

53450ASUPPORT ASSY, HOOD, LH

main53450-0W470iAXVA80,AXVH80,MXVA80202406

53481ABRACKET, HOOD SUPPORT, RH

main53481-33070iAXVA80,AXVH80,MXVA80202406

53482BRACKET, HOOD SUPPORT, LH

main53482-33060iAXVA80,AXVH80,MXVA80202406

53510LOCK ASSY, HOOD

main53510-33380supersedes 53510-33420iAXVA80,AXVH80,MXVA80..LHD..(EUR,TAIW)202406

UAE SPEC&WITH(REMOTE AIR CONDITIONER PACKAGE)

main53510-33430iAXVH80..RHD202406

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAXVA80,AXVH80,MXVA80202406

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iAXVA80,AXVH80,MXVA80202406

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iAXVA80,AXVH80,MXVA80202406

WD=1.8,CW=13

53577BOLT, HOOD LOCK

main53577-33010iAXVA80,AXVH80,MXVA80202406

53579CAP, HOOD LOCK NUT

main53579-50010iAXVA80,AXVH80,MXVA80202406

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iAXVA80,AXVH80..G..(EUR,GCC)202406

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-1E350iAXVA80,AXVH80,MXVA80..LHD202406

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-33201iAXVA80,AXVH80,MXVA80..LHD202406

main53630-33211iAXVH80..N..ARL202406

main53630-33270supersedes 53630-33270iAXVH80..G..ARL202406-202502

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iAXVA80,AXVH80,MXVA80202406

9010906372

main90109-06372

9011908D26

main90119-08D26

9155180820

main91551-80820

91621J0814

main91621-J0814

22 parts on this diagram · 2 diagrams in section
