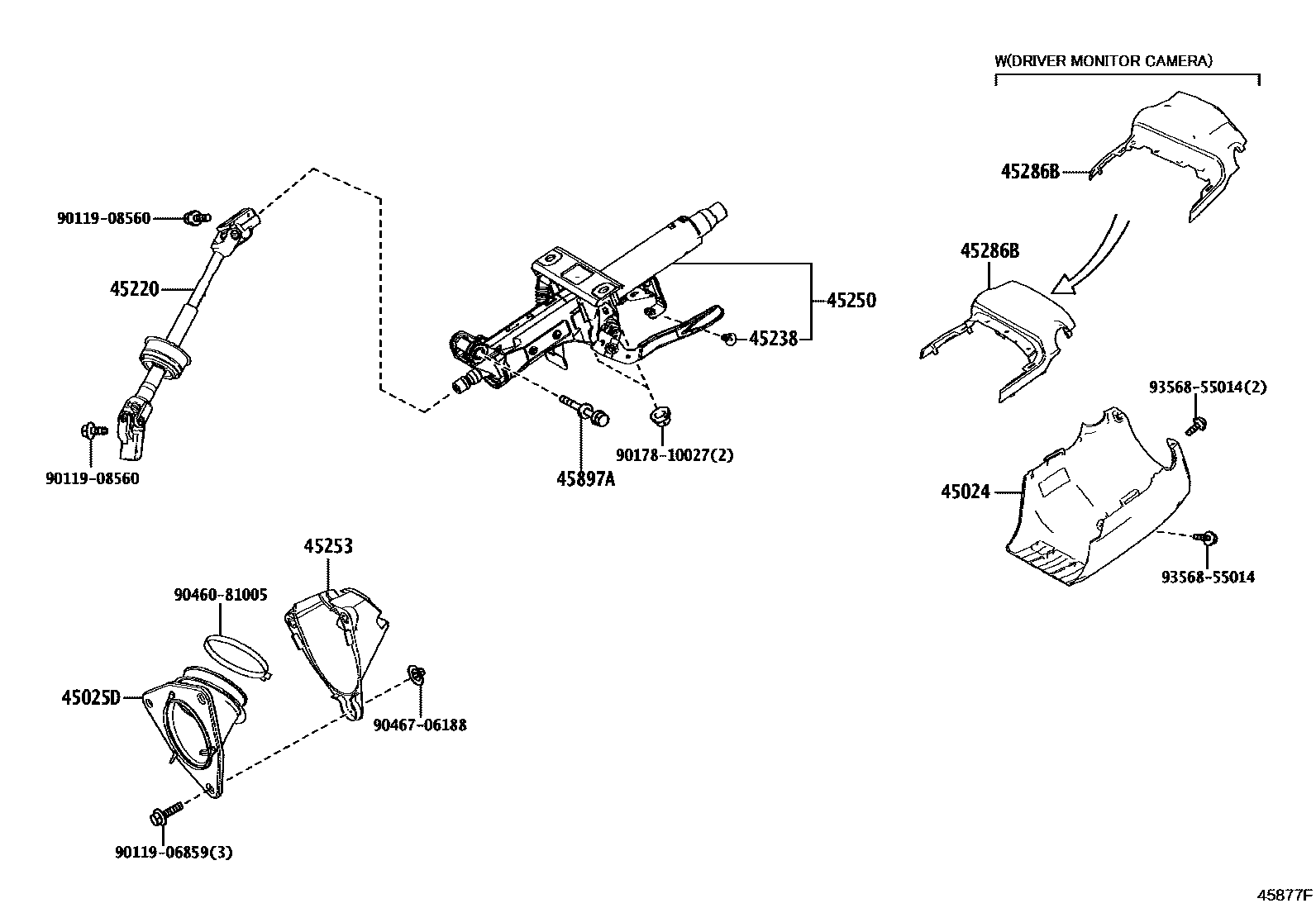

STEERING COLUMN & SHAFT
45024COVER SUB-ASSY, STEERING COLUMN, LOWER
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#
BLACK,TRIM2#; BLACK,TRIM2#,4#
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45220SHAFT ASSY, STEERING INTERMEDIATE
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45250COLUMN ASSY, STEERING
KOREA SPEC
45253COVER, STEERING COLUMN HOLE
45286BCOVER, STEERING COLUMN, UPR
main45286-30A70-C0iAXVA80..G..EUR; AXVA80..N..EUR; AXVH80..ARL; AXVH80..LHD..G..EUR; AXVH80..N..EUR202406
BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; UKRAINE SPEC,BLACK,TRIM0#,2#,4#; UKRAINE SPEC,BLACK,TRIM2#,4#
main45286-30A80-C0supersedes 45286-30A70-C0iAXVA80..D,N;AXVH80..(D,N)..GCC; AXVA80..G;AXVH80..G..GCC;AXVH80..RHD..EUR; AXVH80,MXVA80..TAIW; AXVH80..LHD..G..EUR; AXVH80..N..EUR202406
ARMENIA SPEC,BLACK,TRIM0#,2#,4#; ARMENIA SPEC,BLACK,TRIM2#,4#; BLACK,TRIM0#,2#,4#; BLACK,TRIM2#; BLACK,TRIM2#,4#; CAUCASUS SPEC,BLACK,TRIM0#,2#,4#; CAUCASUS SPEC,BLACK,TRIM2#,4#; ISRAEL SPEC,BLACK,TRIM2#,4#; KAZAKHSTAN SPEC,BLACK,TRIM0#,2#,4#; KAZAKHSTAN SPEC,BLACK,TRIM2#,4#; KYRGYZSTAN SPEC,BLACK,TRIM0#,2#,4#; MOLDOVA SPEC,BLACK,TRIM0#,2#,4#; MOLDOVA SPEC,BLACK,TRIM2#,4#
45897ABOLT, TILT STEERING PAWL SET
9011906859
main90119-06859
9011908560
main90119-08560
9017810027
main90178-10027
9046081005
main90460-81005
9046706188
main90467-06188
9356855014
main93568-55014
14 parts on this diagram · 4 diagrams in section
