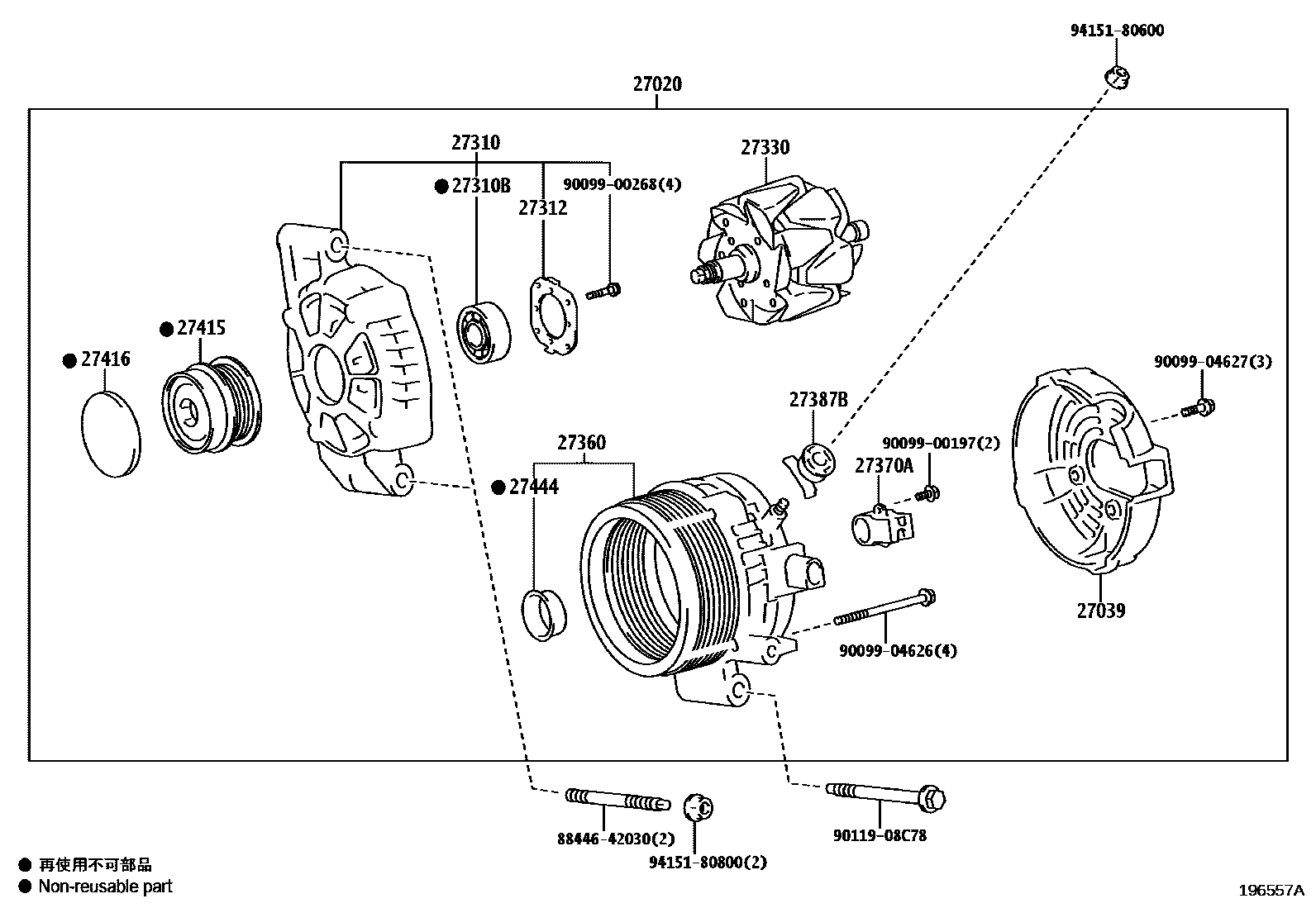

ALTERNATOR

0001 112V 100A,130A 0002 112V 100A

27020ALTERNATOR ASSY

main27060-24080iM20..MXVA80202406

12V 100A

main27060-25010iA25..AXVA80..G..EUR; A25..AXVA80..GCC202406

12V 100A; 12V 100A,EGYPT SPEC; 12V 100A,LIBYA SPEC

main27060-25030iA25..AXVA80..EUR202406

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-37220iA25,M20..AXVA80,MXVA80202406

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24130iA25..AXVA80..EUR202406

main27310-24150iA25,M20..AXVA80,MXVA80..GCC,TAIW; A25..AXVA80..G..EUR202406

EGYPT SPEC; LIBYA SPEC

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iA25,M20..AXVA80,MXVA80202406

27312PLATE, RETAINER

main27312-72100iA25,M20..AXVA80,MXVA80202406

27330ROTOR ASSY, ALTERNATOR

main27330-37220iA25..AXVA80..EUR202406

main27330-47330iA25,M20..AXVA80,MXVA80..GCC,TAIW; A25..AXVA80..G..EUR202406

EGYPT SPEC; LIBYA SPEC

27360COIL ASSY, ALTERNATOR

main27360-24130iA25..AXVA80..EUR202406

main27360-24150iA25,M20..AXVA80,MXVA80..GCC,TAIW; A25..AXVA80..G..EUR202406

EGYPT SPEC; LIBYA SPEC

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220iA25,M20..AXVA80,MXVA80202406

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130iA25,M20..AXVA80,MXVA80202406

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F0010iA25..AXVA80202406

27416CAP, ALTERNATOR PULLEY

main27416-0W050iA25..AXVA80202406

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iA25,M20..AXVA80,MXVA80202406

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 2 diagrams in section
