EXHAUST PIPE

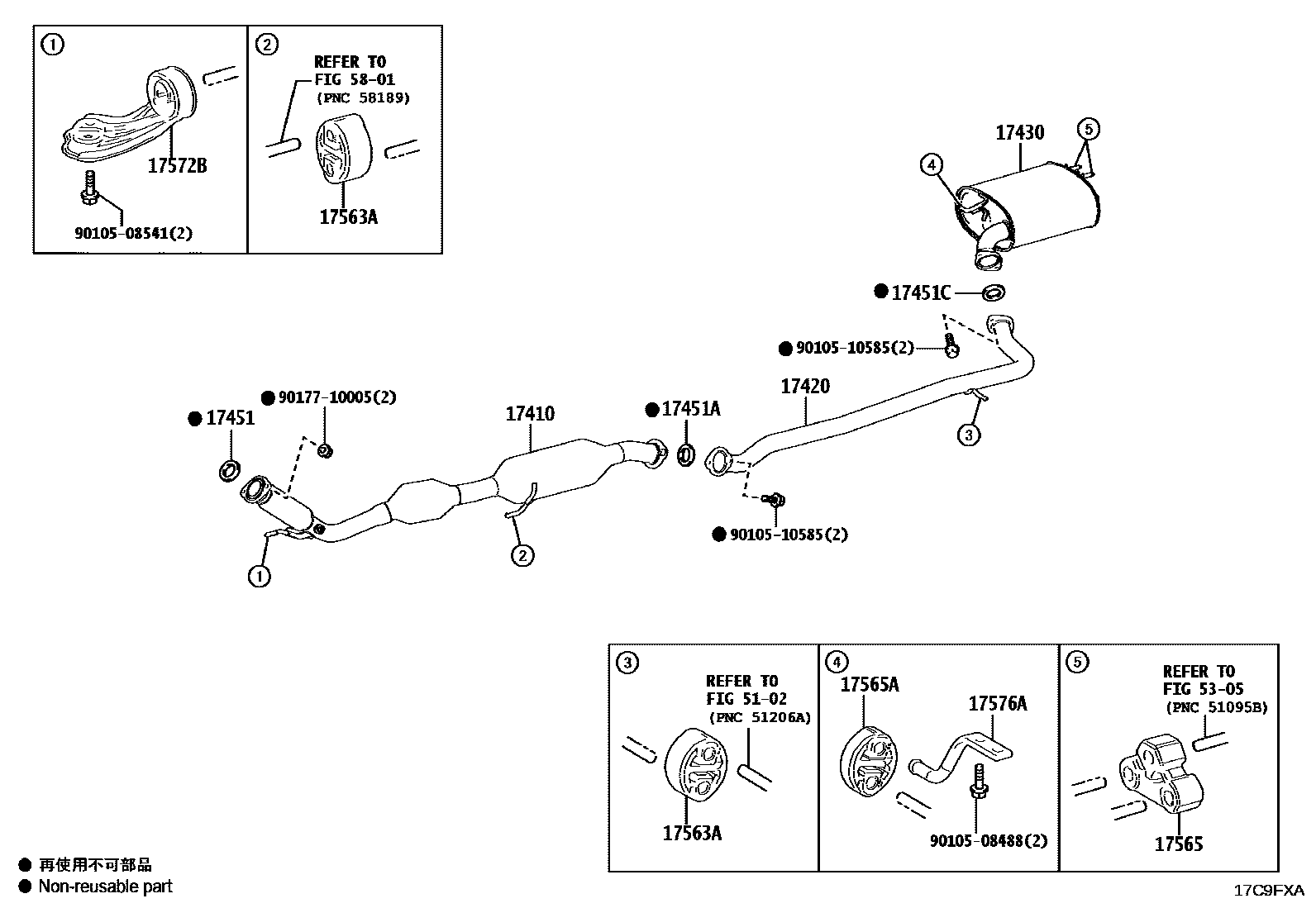

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-24800i202406

main17410-25840supersedes 17410-25890i202406

ARMENIA SPEC; CAUCASUS SPEC; KAZAKHSTAN SPEC; KYRGYZSTAN SPEC; MOLDOVA SPEC; UKRAINE SPEC

main17410-25A00i202406

main17410-25890i202406

*114=TOYOTA/PE9/Y; *114=TOYOTA/PE9/Y,ISRAEL SPEC

17420PIPE ASSY, EXHAUST, CENTER

main17420-25021i202406

main17420-25040i202406

17430PIPE ASSY, EXHAUST, TAIL

main17430-25540i202406

17451GASKET, EXHAUST PIPE

main90917-06094i202406

17451AGASKET, EXHAUST PIPE, NO.2

main90917-06090i202406

17451CGASKET, EXHAUST PIPE, NO.3

main90917-06078i202406

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-22040×2i202406

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-25010i202406

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-31040i202406

17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2

main17572-31150i202406

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-31110i202406

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

9010508488

main90105-08488

9010508541

main90105-08541

9010510585

main90105-10585

9017710005

main90177-10005

18 parts on this diagram · 3 diagrams in section
