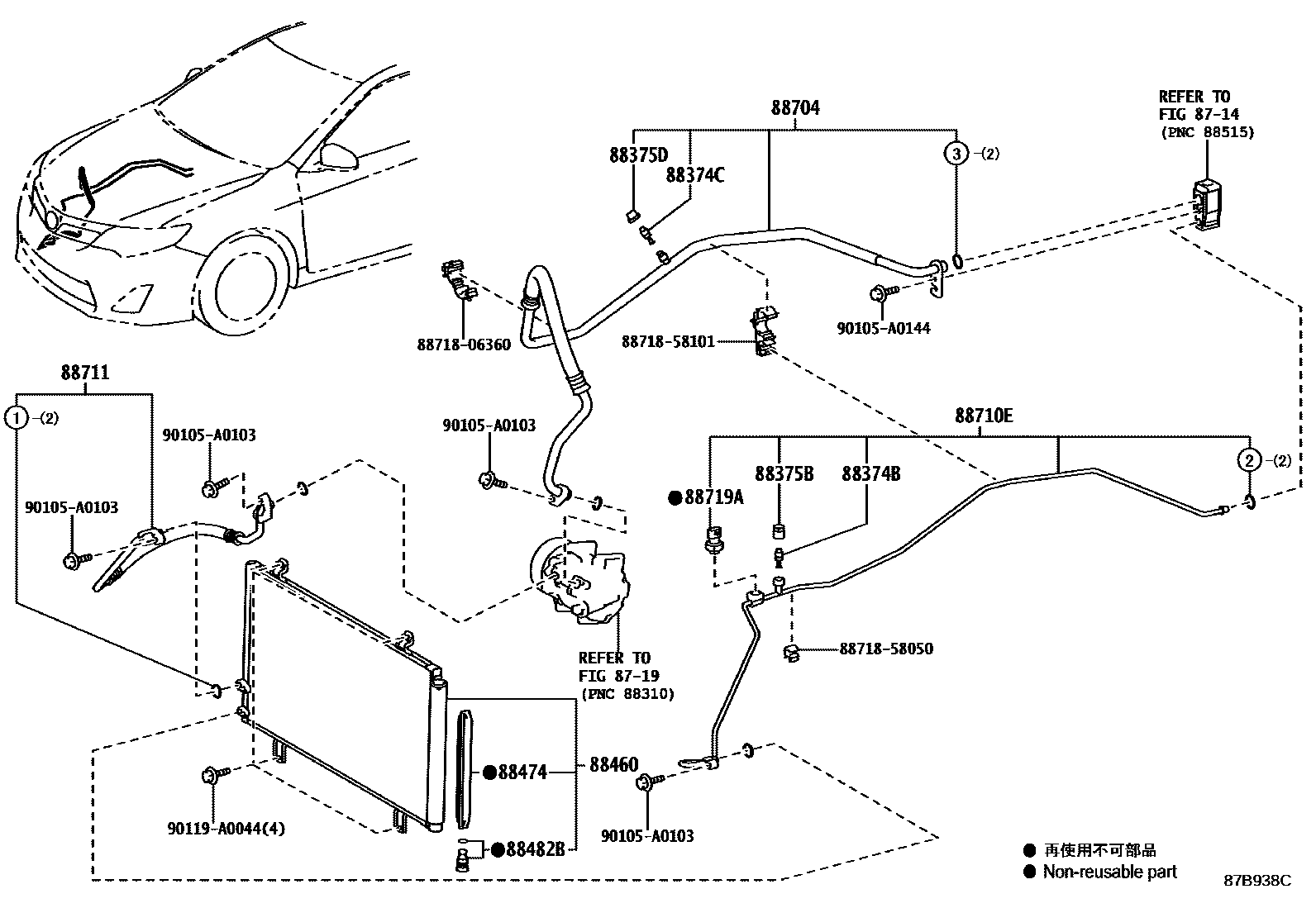

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1O-RING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iASV50201504

88374CVALVE, SERVICE, NO.2

main88374-30010iASV50201504

88375BCAP, SERVICE VALVE, NO.1

main88375-02060iASV50201504-201602

main88375-0E020iASV50201602

88375DCAP, SERVICE VALVE, NO.2

main88375-02070iASV50201504-201602

main88375-0E030iASV50201602

88460CONDENSER ASSY, COOLER

main88460-06230iASV50201504-201706

88474DRYER, COOLER

main88474-17010iASV50201504

88482BCAP, COOLER NO.1

main88482-08010iASV50201504

88704HOSE SUB-ASSY, SUCTION

main88704-06440iASV50201504

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-06330iASV50201504

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-06430iASV50201504

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASV50201504

8871806360PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-06360

8871858050PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58050

8871858101PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-58101

90105A0103

main90105-A0103

90105A0144

main90105-A0144

90119A0044

main90119-A0044

19 parts on this diagram · 2 diagrams in section
