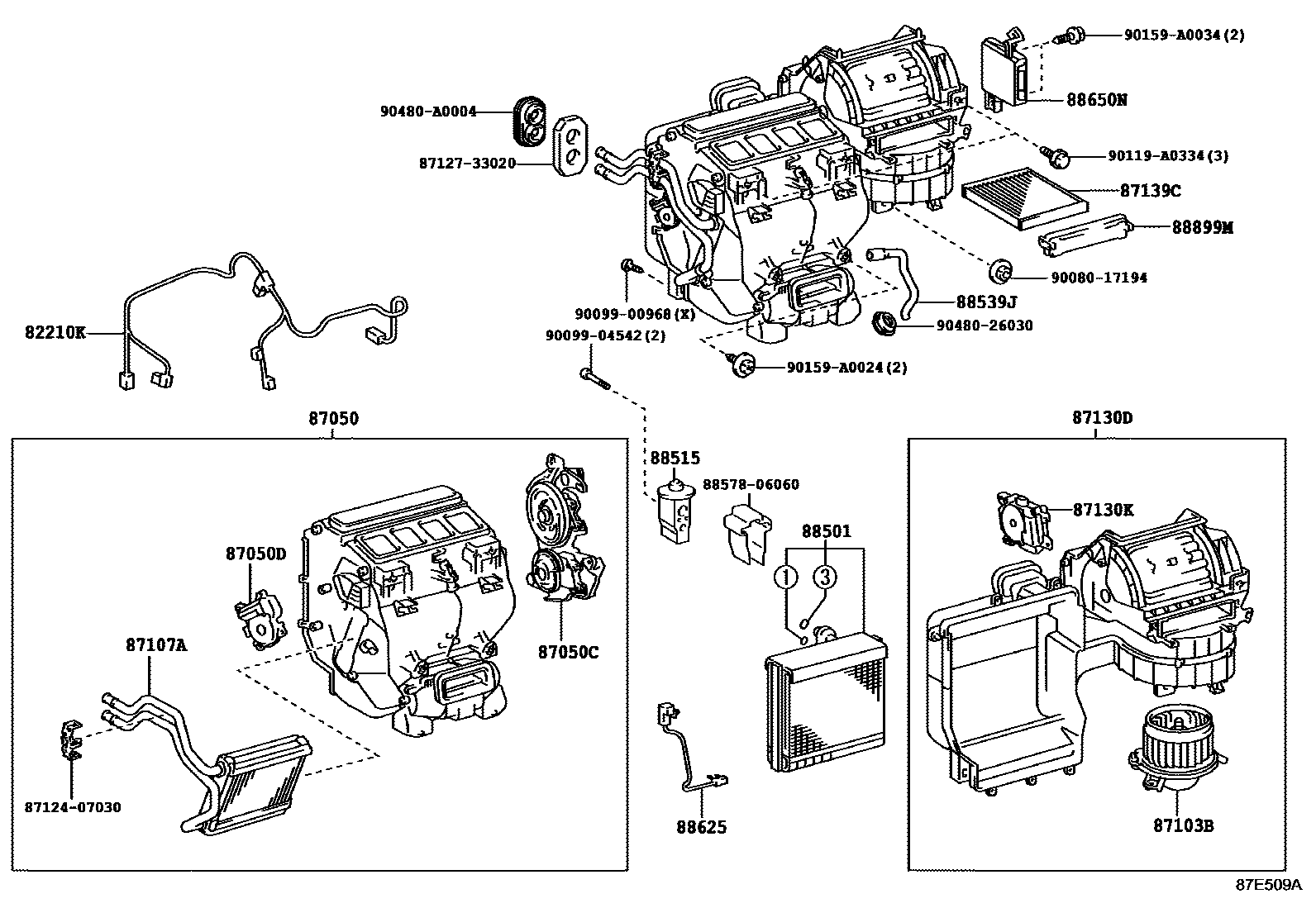

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-06121iASV50201504-201706

87050RADIATOR ASSY, AIR CONDITIONER

main87050-06581iASV50201504

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-06300iASV50201504

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-07120iASV50201504

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0E040iASV50201504

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-07030iASV50201504

87130DBLOWER ASSY

main87130-06330iASV50201504

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-07140iASV50201504

87139CFILTER, CLEAN AIR

main87139-07020iASV50201504

POLLEN FILTER

main87139-50100iASV50201604

*DPF

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-06230iASV50201504

88515VALVE, COOLER EXPANSION

main88515-02530iASV50201504

88539JHOSE, DRAIN COOLER

main88539-06121iASV50201504

88625THERMISTOR, COOLER, NO.1

main88620-06020iASV50201504

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-06880iASV50201504

88899MPLATE, COVER(FOR AIR FILTER)

main88899-07010iASV50201504

8712407030CLAMP, HEATER

main87124-07030

8712733020PACKING, HEATER AIR DAMPER

main87127-33020

8857806060PAKING, COOLER AIR DUCT

main88578-06060

9008017194

main90080-17194

9009900968

main90099-00968

9009904542

main90099-04542

90119A0334

main90119-A0334

90159A0024

main90159-A0024

90159A0034

main90159-A0034

9048026030

main90480-26030

90480A0004

main90480-A0004

26 parts on this diagram · 2 diagrams in section
