ELECTRONIC FUEL INJECTION SYSTEM

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASV50201504-201706

89661COMPUTER, ENGINE CONTROL

main89661-06T60iASV50201504

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-06120iASV50201504

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-06120iASV50201504

9008015080

main90080-15080

90176A0001

main90176-A0001

9043012221

main90430-12221

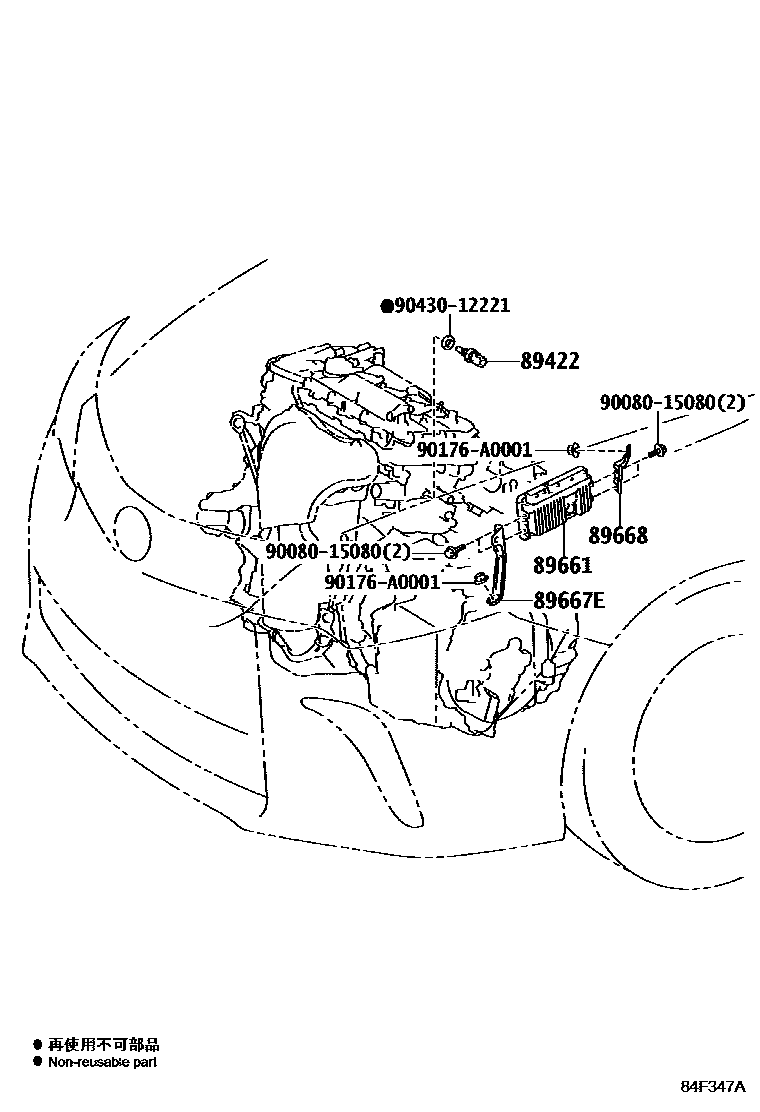

7 parts on this diagram · 1 diagram in section
