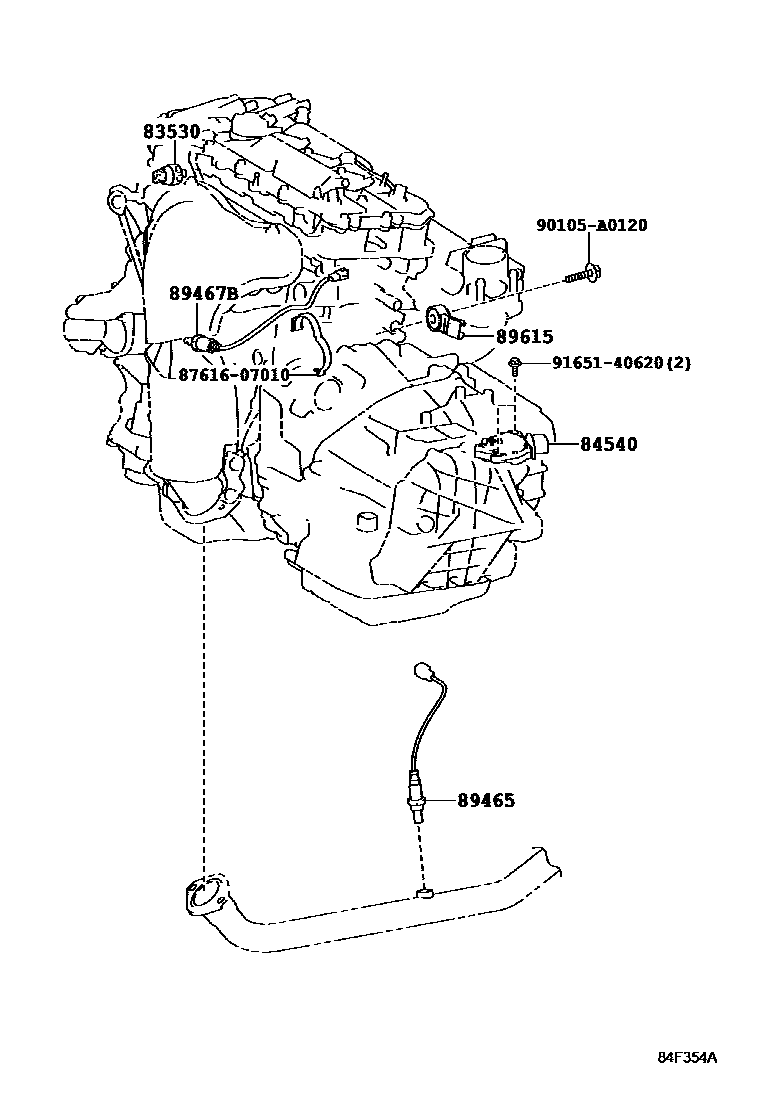

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1SEAT 0007 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASV50201504

(L),YAZAKI

main83530-28020iASV50201504

DENSO

main83530-60020iASV50201504

(J),YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASV50201504-201706

89465SENSOR, OXYGEN

main89465-06290iASV50201504

89467BSENSOR, AIR FUEL RATIO

main89467-06120iASV50201504

89615SENSOR, KNOCK CONTROL

main89615-06010iASV50201504

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

90105A0120

main90105-A0120

9165140620

main91651-40620

8 parts on this diagram · 7 diagrams in section
