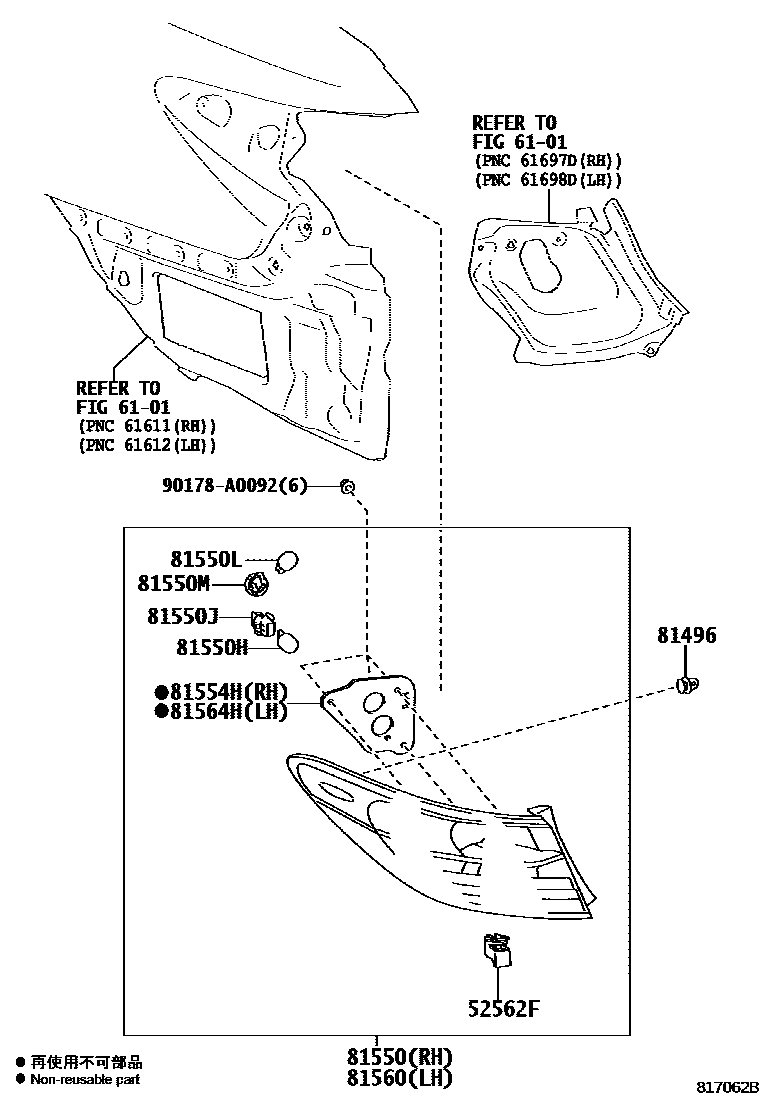

REAR COMBINATION LAMP

52562FRETAINER, REAR BUMPER, UPPER SIDE

main52562-06130×2iASV50201504

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-60010×2iASV50201504

81550LAMP ASSY, REAR COMBINATION, RH

main81550-06640iASV50201504

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iASV50201504

12V 21/5W

81550JSOCKET, TAIL & STOP LAMP

main90075-60079×2iASV50201504

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iASV50201504

12V 21W,AMBER

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026×2iASV50201504

81554HPACKING, REAR COMBINATION LAMP, RH

main81554-06640iASV50201504

81560LAMP ASSY, REAR COMBINATION, LH

main81560-06640iASV50201504

81564HPACKING, REAR COMBINATION LAMP, LH

main81554-06640iASV50201504

90178A0092

main90178-A0092

12 parts on this diagram · 1 diagram in section
