BATTERY CARRIER

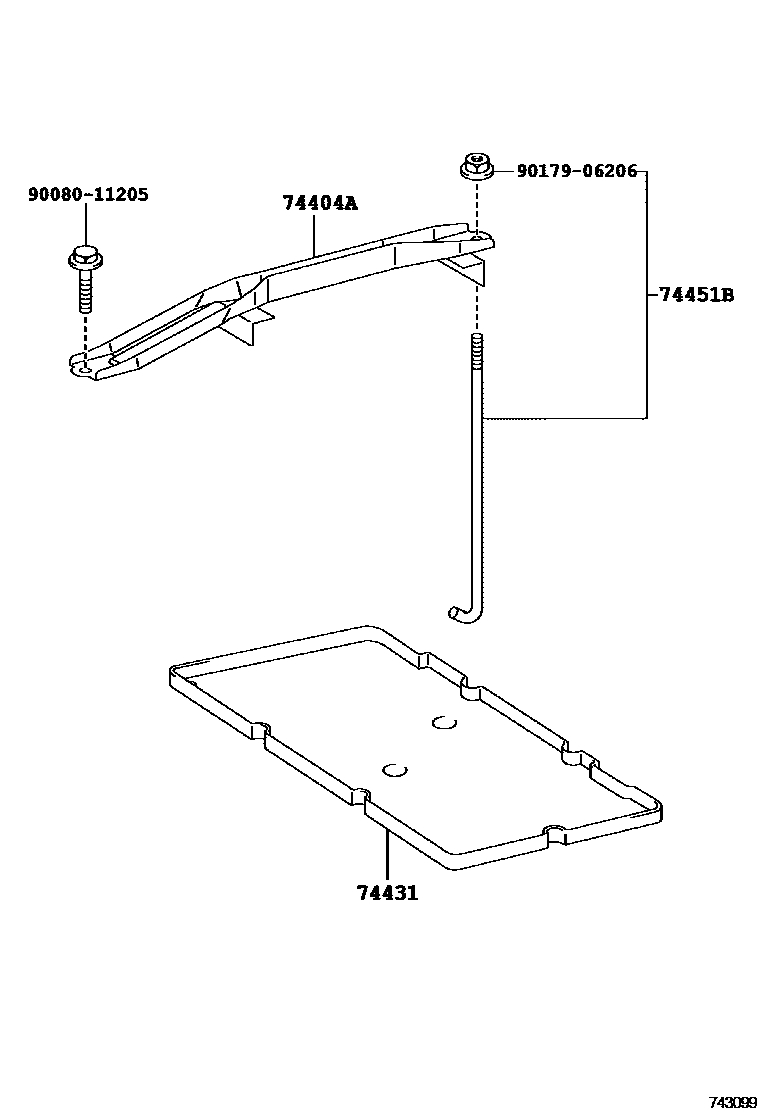

Parts diagram

74404ACLAMP SUB-ASSY, BATTERY

main74404-06130i201504

74431TRAY, BATTERY

main74431-08011i201504

74451BBOLT, BATTERY CLAMP

main74451-06011i201504

9008011205

main90080-11205

9017906206

main90179-06206

5 parts on this diagram · 1 diagram in section
