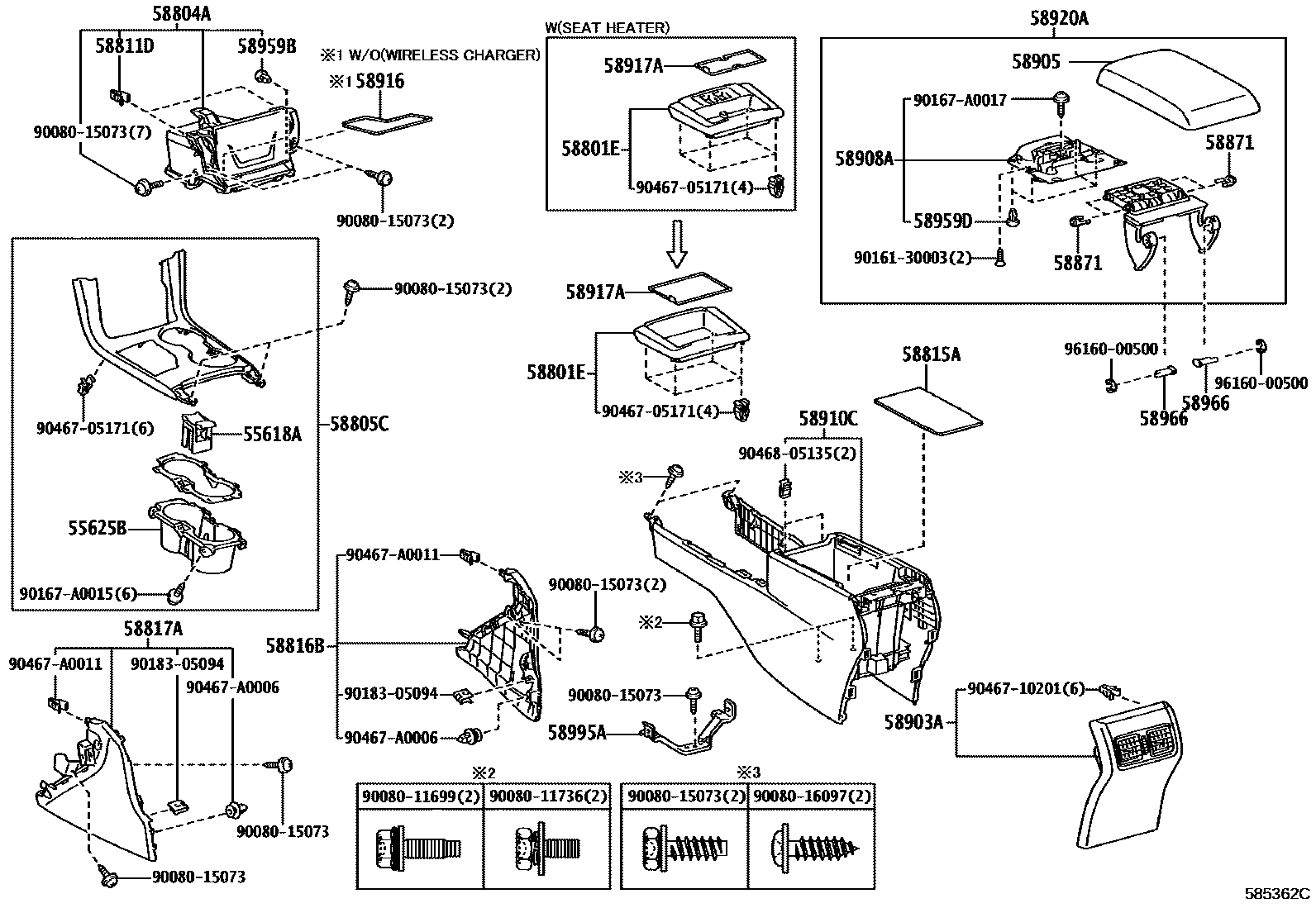

CONSOLE BOX & BRACKET

55618AHOLDER, CONSOLE BOX CUP

main55618-06050iASV50201504

55625BTRAY, INSTRUMENT PANEL CUP HOLDER

main55625-06110iASV50201504

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-06160iASV50201504

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-06241iASV50201504

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-06351iASV50201504

58811DCLIP(FOR CONSOLE BOX)

main90467-A0011iASV50201504

58815ACARPET, CONSOLE BOX

main58815-06100iASV50201504

58816BINSERT, CONSOLE BOX

main58816-06080-C0iASV50201504-201706

BLACK,TRIM1#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-06130-C0iASV50201504-201706

BLACK,TRIM1#,2#

58871CUSHION, CONSOLE BOX

main58871-30070iASV50201504

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-06390-C0iASV50201504-201706

BLACK,TRIM1#,2#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06271

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06081iASV50201504

58910CBOX ASSY, CONSOLE, REAR

main58910-06180-C0iASV50201504-201706

BLACK,TRIM1#,2#

58916MAT, BOX BOTTOM

main58916-06110iASV50201504

58917ACOVER, CONSOLE BOX, REAR

main58917-06030iASV50201504

58920AARMREST ASSY, REAR CONSOLE

main58920-06011-B1iASV50201504-201706

GRAY,TRIM15

sub58920-06021

main58920-06011-C0iASV50201504-201706

BLACK,TRIM15,2#

sub58920-06021

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iASV50201504

58959DCUSHION, REAR CONSOLE BOX

main58959-60060iASV50201504

58966SHAFT, BOX DOOR HINGE

main58966-30030iASV50201504

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06160iASV50201504

9008011699

main90080-11699

9008011736

main90080-11736

9008015073

main90080-15073

9008016097

main90080-16097

9016130003

main90161-30003

90167A0015

main90167-A0015

90167A0017

main90167-A0017

9018305094

main90183-05094

9046705171

main90467-05171

9046710201

main90467-10201

90467A0006

main90467-A0006

90467A0011

main90467-A0011

9046805135

main90468-05135

9616000500

main96160-00500

35 parts on this diagram · 1 diagram in section
