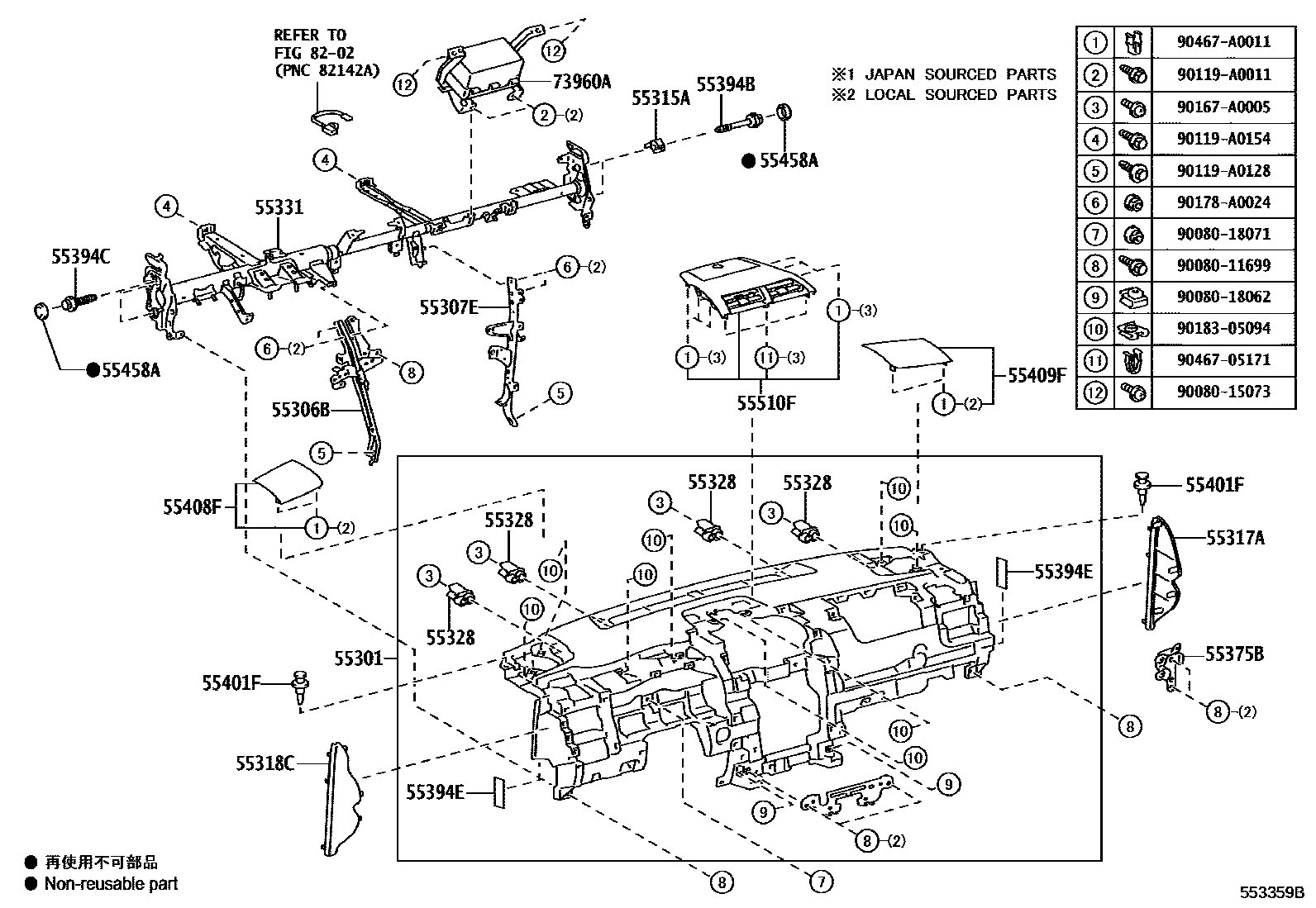

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55301-06210-C0iASV50201504-201706

BLACK,TRIM1#,2#

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-06070iASV50201504

55307EBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-06060iASV50201504

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-48160×2iASV50201504

55317APANEL, INSTRUMENT SIDE, RH

main55317-06140-C0iASV50201504-201706

BLACK,TRIM1#,2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-06160-C0iASV50201504-201706

BLACK,TRIM1#,2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iASV50201504

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-06330iASV50201504-201509

main55330-06331iASV50201510

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-06210iASV50201504

55394BBOLT, INSTRUMENT PANEL

main90119-A0306×2iASV50201504

55394CBOLT, INSTRUMENT PANEL

main90119-A0305×3iASV50201504

55394ECUSHION, INSTRUMENT PANEL, LOWER NO.4

main55394-06140×2iASV50201504

55401FCLIP(FOR SAFETY PAD)

main52161-02020×2iASV50201504

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-06070-C0iASV50201504-201706

BLACK,TRIM1#,2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-06070-C0iASV50201504-201706

BLACK,TRIM1#,2#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×5iASV50201504

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-06030-C0iASV50201504-201706

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06181iASV50201504

8202WIRING & CLAMP

→ Go to FIG 82-02

9008011699

main90080-11699

9008015073

main90080-15073

9008018062

main90080-18062

9008018071

main90080-18071

90119A0011

main90119-A0011

90119A0128

main90119-A0128

90119A0154

main90119-A0154

90167A0005

main90167-A0005

90178A0024

main90178-A0024

9018305094

main90183-05094

9046705171

main90467-05171

90467A0011

main90467-A0011

31 parts on this diagram · 4 diagrams in section
