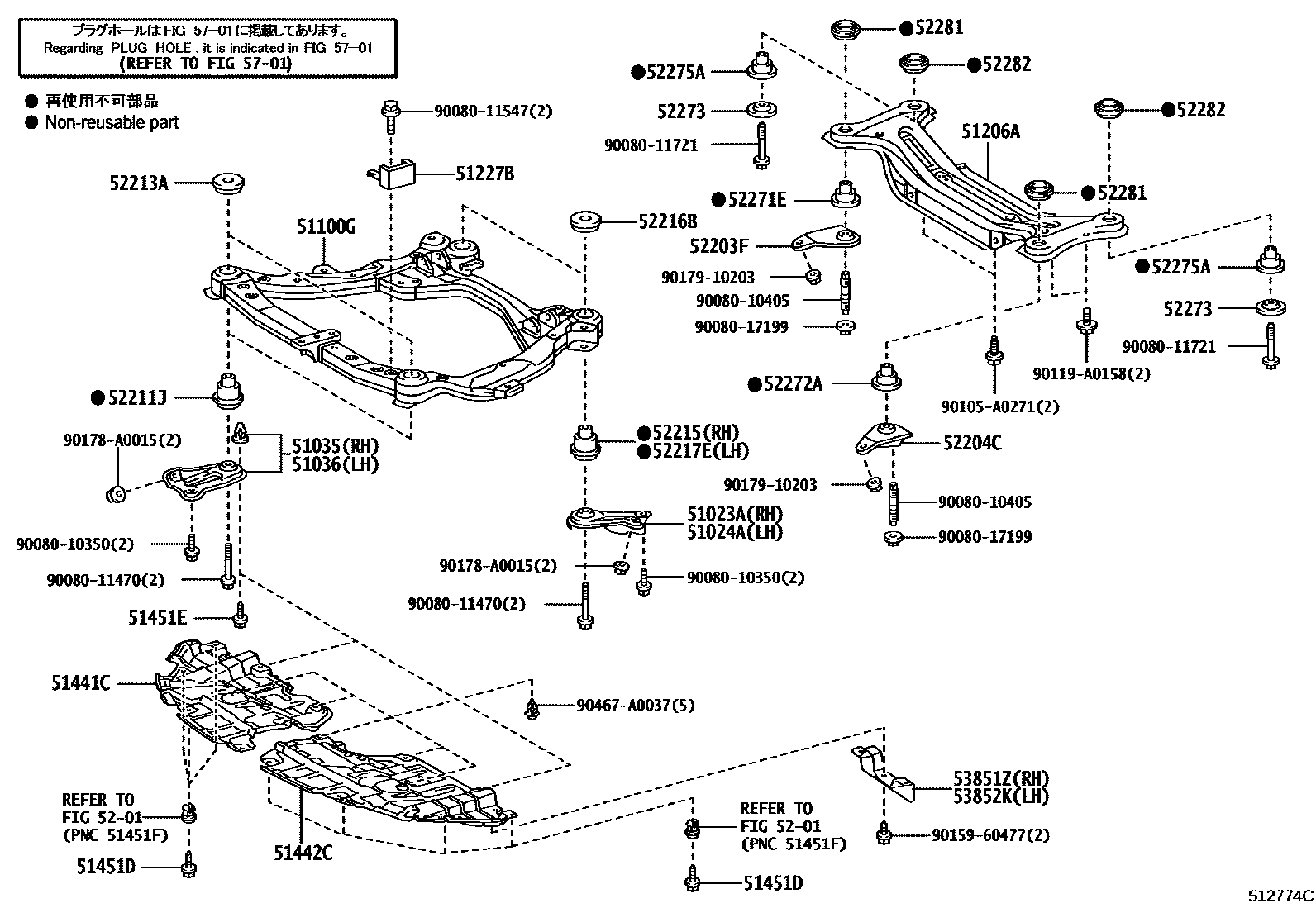

SUSPENSION CROSSMEMBER & UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-07010iASV50201504

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-07010iASV50201504

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-07010iASV50201504

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-07010iASV50201504

51100GFRAME ASSY, FRONT

main51100-07035iASV50201504

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-06091iASV50201504

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-08010iASV50201504

51441CCOVER, ENGINE UNDER, RH

main51441-06220iASV50201504

51442CCOVER, ENGINE UNDER, LH

main51442-06210iASV50201504

51451DSCREW, NO.1

main90159-60477×7iASV50201504-201706

51451ESCREW, NO.2

main90159-60477×2iASV50201504-201706

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52203FSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH

main52203-06041iASV50201504

52204CSTOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH

main52204-06041iASV50201504

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-06080×2iASV50201504

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-06080×2iASV50201504

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-06120iASV50201504

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-06060×2iASV50201504

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-06100iASV50201504

52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH

main52271-06120iASV50201504

52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52272-06110iASV50201504

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-06010×2iASV50201504

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-06130×2iASV50201504

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-06030×2iASV50201504

52282STOPPER, DIFFERENTIAL SUPPORT MEMBER, UPPER

main52282-06060×2iASV50201504

53851ZPAD, FRONT WHEEL OPENING EXTENSION, RH

main53851-06100iASV50201504

53852KPAD, FRONT WHEEL OPENING EXTENSION, LH

main53852-06100iASV50201504

5701HOLE PLUG

→ Go to FIG 57-01

9008010350

main90080-10350

9008010405

main90080-10405

9008011470

main90080-11470

9008011547

main90080-11547

9008011721

main90080-11721

9008017199

main90080-17199

90105A0271

main90105-A0271

90119A0158

main90119-A0158

9015960477

main90159-60477

90178A0015

main90178-A0015

9017910203

main90179-10203

90467A0037

main90467-A0037

40 parts on this diagram · 1 diagram in section
