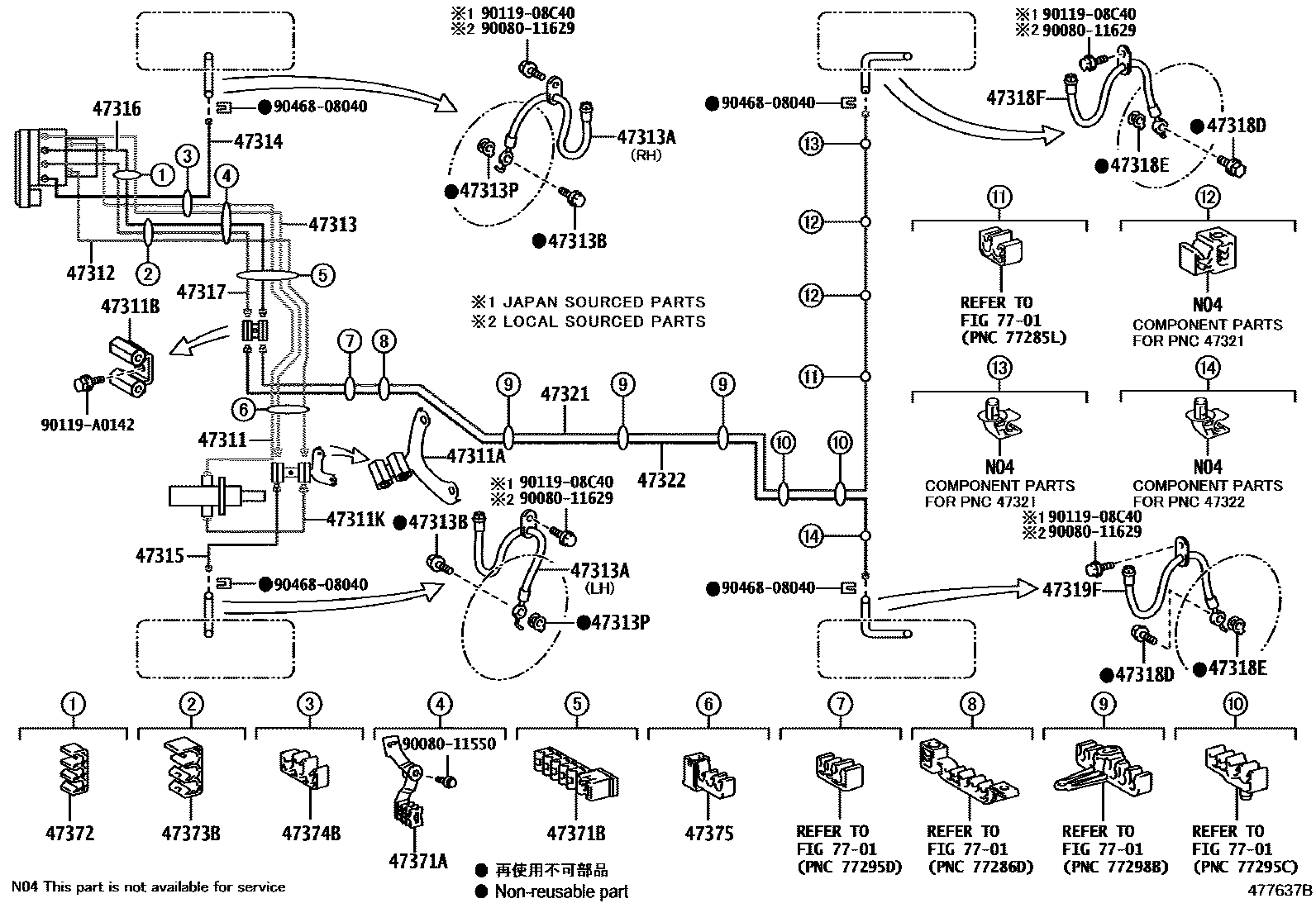

BRAKE TUBE & CLAMP

0001 1 0002 1

47311TUBE, FRONT BRAKE, NO.1

main47311-06400iASV50201504

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-12065iASV50201504

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-A0004iASV50201504

47311KTUBE, BRAKE MASTER CYLINDER TO WAY

main47311-06390iASV50201504

47312TUBE, FRONT BRAKE, NO.2

main47312-06330iASV50201504

47313TUBE, FRONT BRAKE, NO.3

main47313-06290iASV50201504

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-A2030iASV50201504

RH

main90947-A2031iASV50201504

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iASV50201504-201606

main90401-A0001iASV50201607

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iASV50201504

47314TUBE, FRONT BRAKE, NO.4

main47314-06291iASV50201504

47315TUBE, FRONT BRAKE, NO.5

main47315-06281iASV50201504

47316TUBE, FRONT BRAKE, NO.6

main47316-06350iASV50201504

47317TUBE, FRONT BRAKE, NO.7

main47317-06330iASV50201504

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iASV50201504-201606

main90401-A0001iASV50201607

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iASV50201504

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-A2032iASV50201504

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-A2060iASV50201504

47321TUBE, REAR BRAKE, NO.1

main47321-06151iASV50201504-201706

47322TUBE, REAR BRAKE, NO.2

main47322-06151iASV50201504-201706

47371ACLAMP, BRAKE TUBE, NO.1

main47371-06050iASV50201504

47371BCLAMP, BRAKE TUBE, NO.6

main90949-A1019iASV50201504

47372CLAMP, BRAKE TUBE, NO.2

main90464-00857iASV50201504

47373BCLAMP, BRAKE TUBE, NO.3

main90464-A0007iASV50201504

47374BCLAMP, BRAKE TUBE, NO.4

main90464-A0006iASV50201504

47375CLAMP, BRAKE TUBE, NO.5

main90949-A1018iASV50201504

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9008011550

main90080-11550

9008011629

main90080-11629

9011908C40

main90119-08C40

90119A0142

main90119-A0142

9046808040

main90468-08040

31 parts on this diagram · 2 diagrams in section
