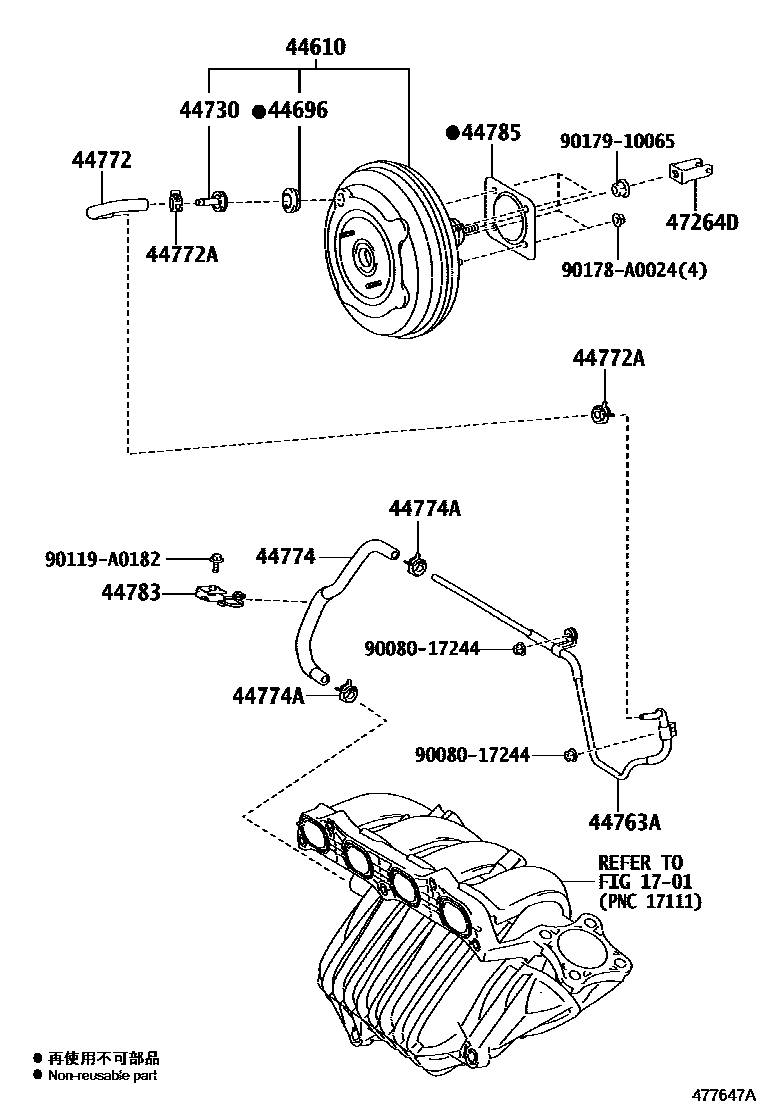

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-06760iASV50201504-201512

main44610-06761iASV50201601

44696GROMMET, CHECK VALVE

main90080-48071iASV50201504

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60070iASV50201504

44763ATUBE, HOSE TO HOSE, NO.1

main44763-33090iASV50201504

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-33210iASV50201504

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014×2iASV50201504

44774HOSE, UNION TO CONNECTOR TUBE

main44774-33110iASV50201504

44774ACLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014×2iASV50201504

44783CLAMP, VACUUM HOSE

main44783-42030iASV50201504

44785GASKET, BRAKE BOOSTER

main44785-02060iASV50201504

(L)

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iASV50201504

9008017244

main90080-17244

90119A0182

main90119-A0182

90178A0024

main90178-A0024

9017910065

main90179-10065

16 parts on this diagram · 1 diagram in section
