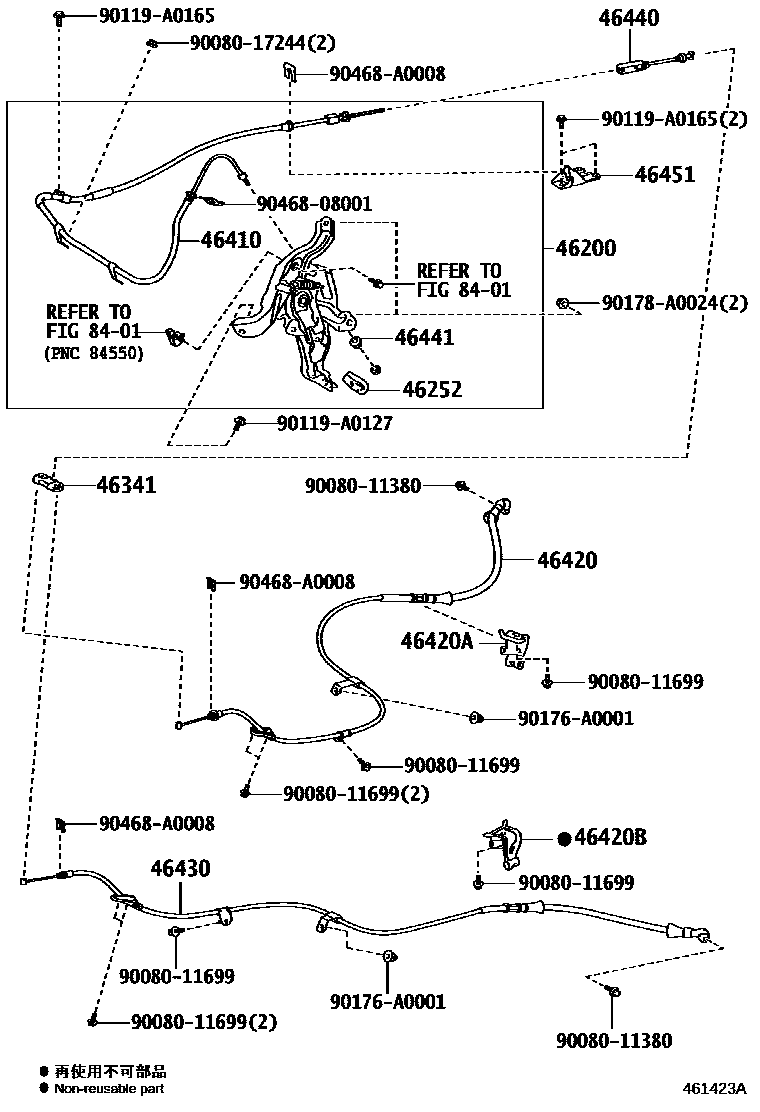

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-06111iASV50201504

46252PAD, PARKING PEDAL

main46252-06020iASV50201504

46341EQUALIZER, PARKING BRAKE

main46341-33030iASV50201504

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-06140iASV50201504

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-06172iASV50201504

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-06011iASV50201504

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-06011iASV50201504

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-06172iASV50201504

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-06080iASV50201504

46441NUT, WIRE ADJUSTING, NO.1

main90182-A0030iASV50201504

46451BRACKET, CABLE SUPPORT

main46451-06020iASV50201504

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9008011380

main90080-11380

9008011699

main90080-11699

9008017244

main90080-17244

90119A0127

main90119-A0127

90119A0165

main90119-A0165

90176A0001

main90176-A0001

90178A0024

main90178-A0024

9046808001

main90468-08001

90468A0008

main90468-A0008

21 parts on this diagram · 2 diagrams in section
