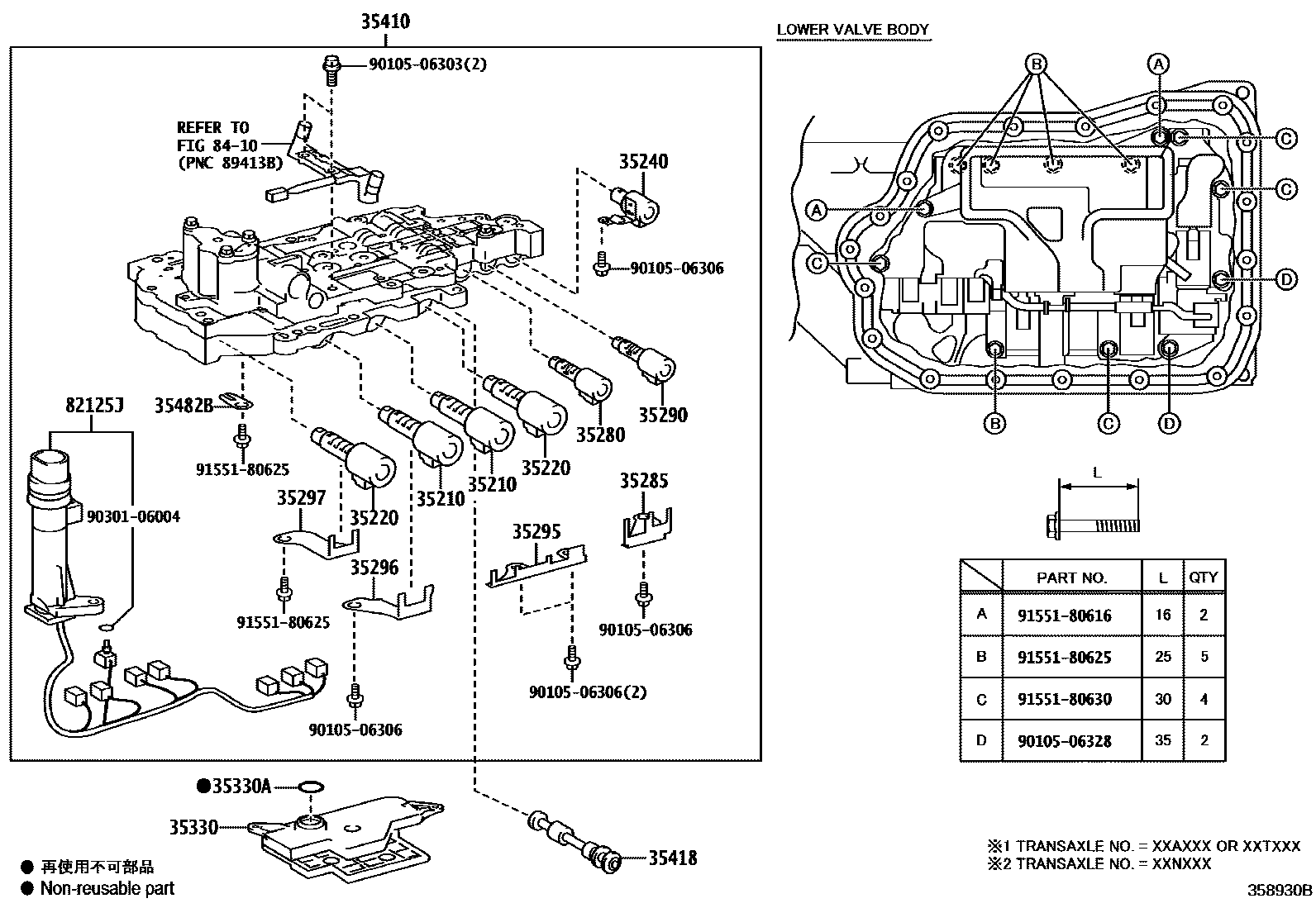

VALVE BODY & OIL STRAINER (ATM)

0001 1U760E 0002 1U760E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-33030iASV50201504

35220SOLENOID ASSY, CLUTCH CONTROL, NO.2

main35220-48020iASV50201504

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-73010iASV50201504

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-33020iASV50201504

35285PLATE, SOLENOID LOCK

main35285-33070iASV50201504

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-33040iASV50201504

35295PLATE, SOLENOID LOCK, NO.2

main35295-33050iASV50201504

35296PLATE, SOLENOID LOCK, NO.3

main35296-33050iASV50201504

35297PLATE, SOLENOID LOCK, NO.4

main35297-33020iASV50201504

35330STRAINER ASSY, VALVE BODY OIL

main35330-73010iASV50201504

35330ARING, O (FOR OIL STRAINER)

main90301-27015iASV50201504

35410BODY ASSY, TRANSMISSION VALVE

main35410-33260iASV50201504

35418VALVE, MANUAL

main35418-73010iASV50201504

35482BCLAMP, TEMPERATURE SENSOR

main35482-73010iASV50201504

82125JWIRE, TRANSMISSION

main82125-73010iASV50201504-201706

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9010506303

main90105-06303

9010506306

main90105-06306

9010506328

main90105-06328

9030106004

main90301-06004

9155180616

main91551-80616

9155180625

main91551-80625

9155180630

main91551-80630

23 parts on this diagram · 2 diagrams in section
