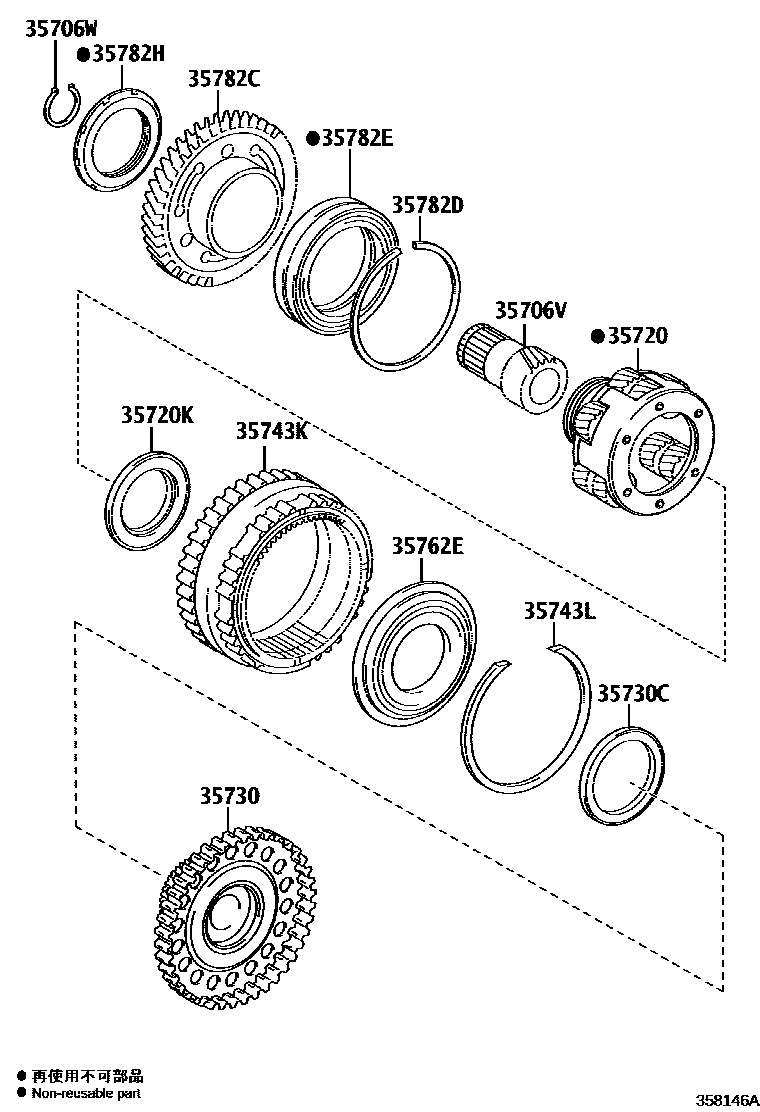

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-73010iASV50201504

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iASV50201504

35720GEAR ASSY, FRONT PLANETARY

main35720-33070iASV50201504

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62011iASV50201504

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33030iASV50201504

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iASV50201504

35743KGEAR, PLANETARY RING

main35743-33040iASV50201504

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iASV50201504

35762EFLANGE, PLANETARY RING GEAR

main35762-73010iASV50201504

35782CGEAR, COUNTER DRIVE

main35782-33040iASV50201504

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99154iASV50201504

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72002iASV50201504

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iASV50201504

(J)

13 parts on this diagram · 1 diagram in section
