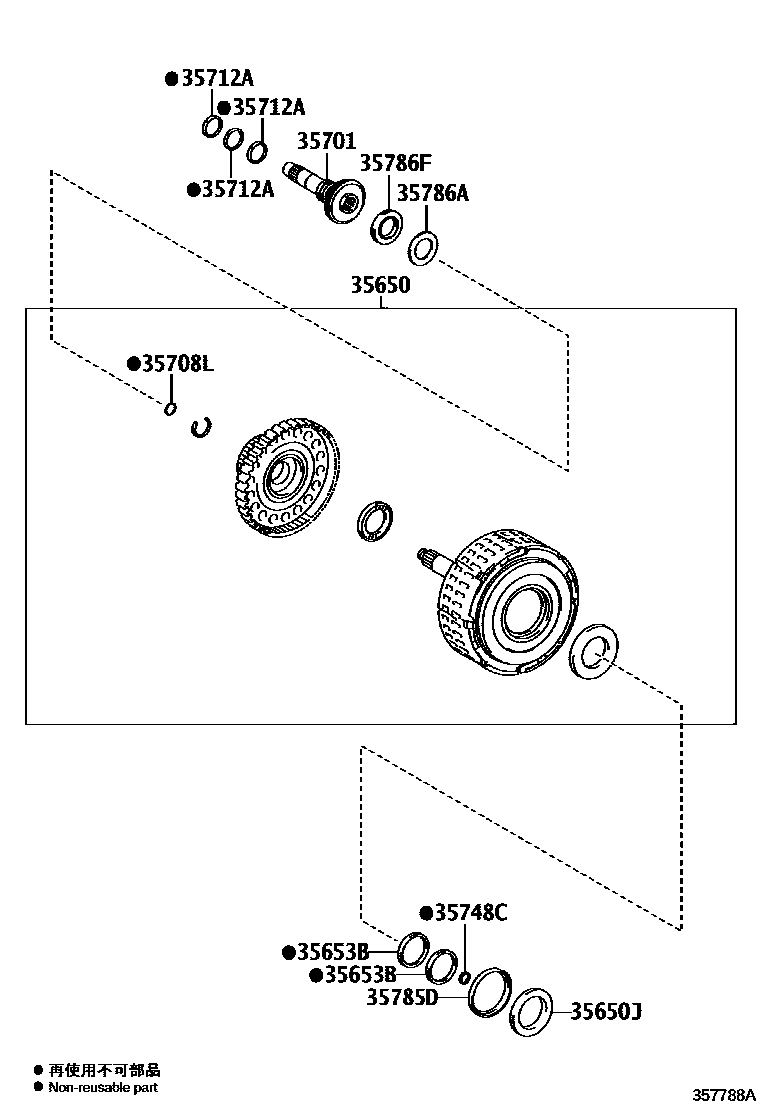

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-33090iASV50201504

*285

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48009iASV50201504

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010×2iASV50201504

35701SHAFT SUB-ASSY, INPUT

main35711-33080iASV50201504

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11032iASV50201504

35712ARING, INPUT SHAFT OIL SEAL

main35712-33010×3iASV50201504-201706

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASV50201504

35785DRACE, THRUST BEARING, NO.4

main35785-48020iASV50201504

35786ARACE, THRUST BEARING, NO.1

main35786-33010iASV50201504

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29007iASV50201504

10 parts on this diagram · 1 diagram in section
