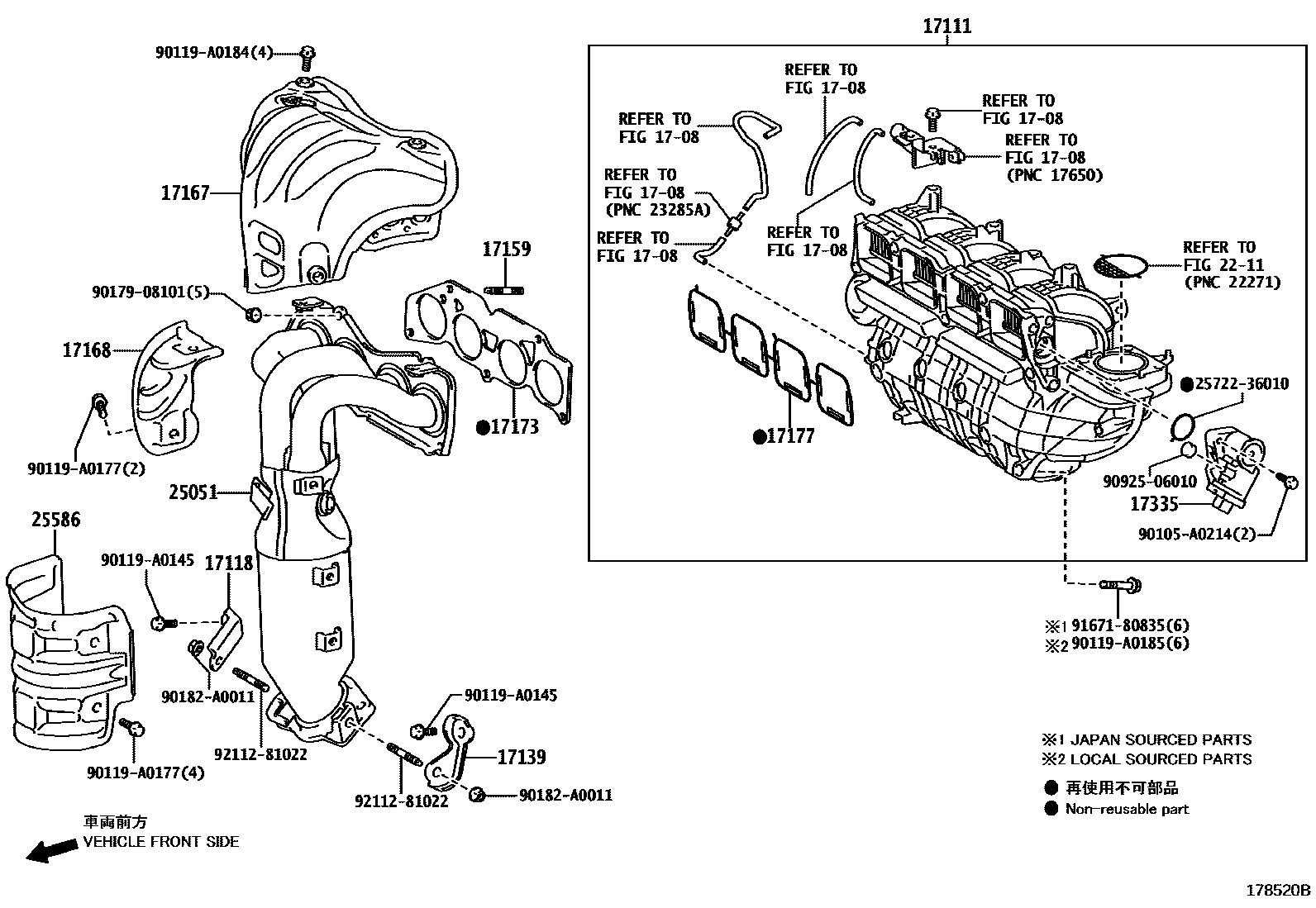

MANIFOLD

1708

17111MANIFOLD, INTAKE

main17120-0V010i2ARFE..ASV50201504

sub17120-36011

17118STAY, MANIFOLD

main17118-0V010i2ARFE..ASV50201504

(L)

main17118-36010i2ARFE..ASV50201504

(J)

17139STAY, MANIFOLD, NO.2

main17139-0V050i2ARFE..ASV50201504

(L)

main17139-36020i2ARFE..ASV50201504

(J)

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-A0007i2ARFE..ASV50201504

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0V030i2ARFE..ASV50201504

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0V010i2ARFE..ASV50201504

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0V010i2ARFE..ASV50201504

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-0V010i2ARFE..ASV50201504

17335ACTUATOR, INTAKE AIR CONTROL VALVE

main17335-0V010i2ARFE..ASV50201504

2211

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-0V030i2ARFE..ASV50201504

25586INSULATOR, MANIFOLD CONVERTER, NO.1

main25586-0V010i2ARFE..ASV50201504

2572236010GASKET, ELECTRIC AIR CONTROL VALVE

main25722-36010

90105A0214

main90105-A0214

90119A0145

main90119-A0145

90119A0177

main90119-A0177

90119A0184

main90119-A0184

90119A0185

main90119-A0185

9017908101

main90179-08101

90182A0011

main90182-A0011

9092506010

main90925-06010

9167180835

main91671-80835

9211281022

main92112-81022

24 parts on this diagram · 1 diagram in section
