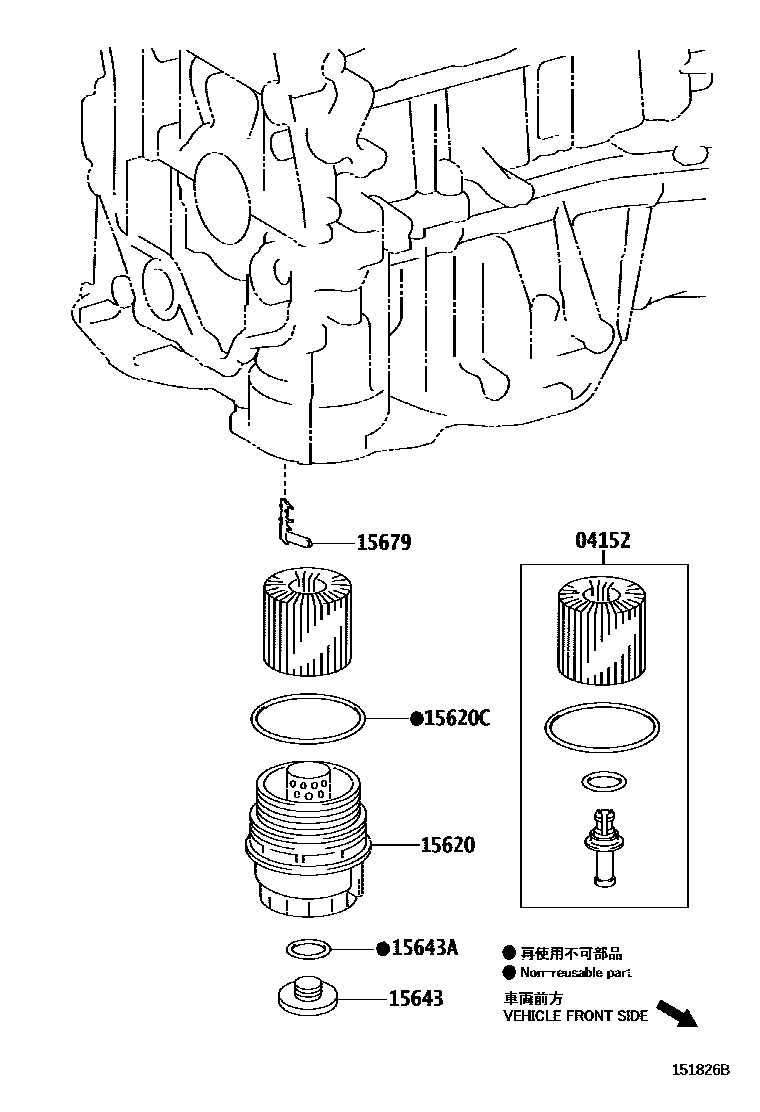

OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-31090i2ARFE..ASV50201504

15620CAP ASSY, OIL FILTER

main15620-0V010i2ARFE..ASV50201504

(L)

main15620-36020i2ARFE..ASV50201504

(J)

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2ARFE..ASV50201504

15643PLUG, OIL FILTER DRAIN

main15643-31050i2ARFE..ASV50201504

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i2ARFE..ASV50201504

15679CLIP, OIL FILTER BRACKET

main15679-37011i2ARFE..ASV50201504

6 parts on this diagram · 1 diagram in section
