ENGINE OIL PUMP

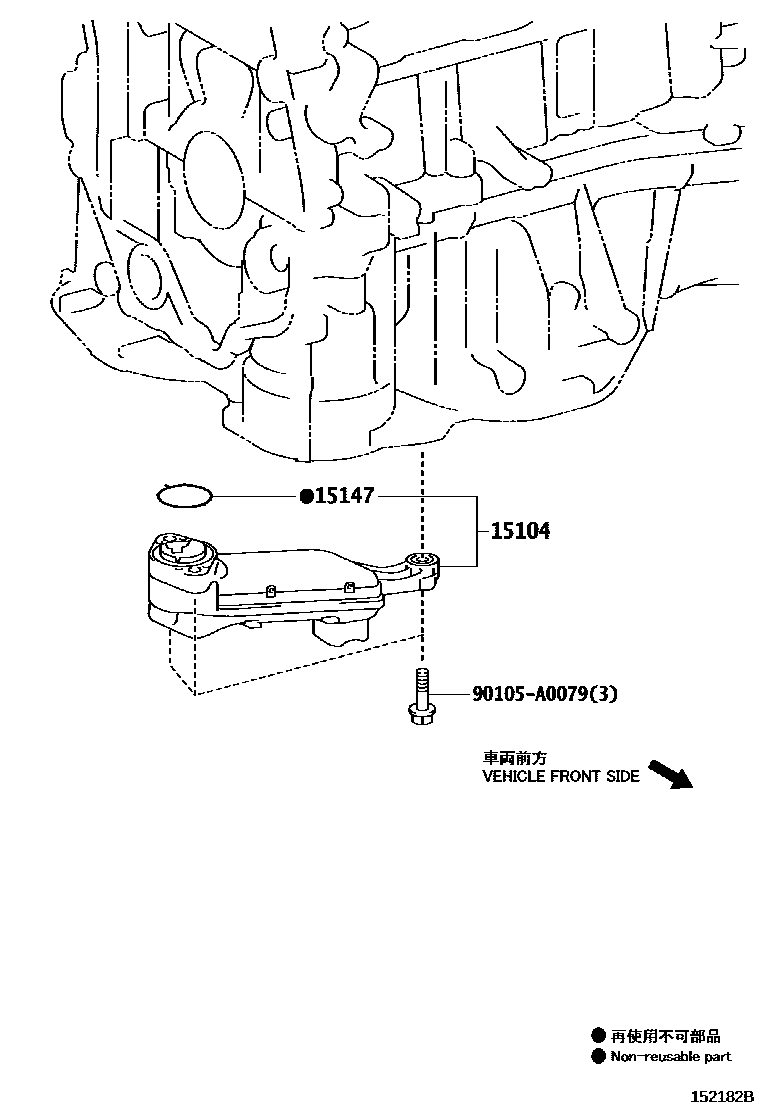

Parts diagram

15104STRAINER SUB-ASSY, OIL

main15104-0V050i201505

(L)

main15104-36020i201504-201505

15147GASKET, OIL STRAINER

main15147-36010i201504

90105A0079

main90105-A0079

3 parts on this diagram · 1 diagram in section
