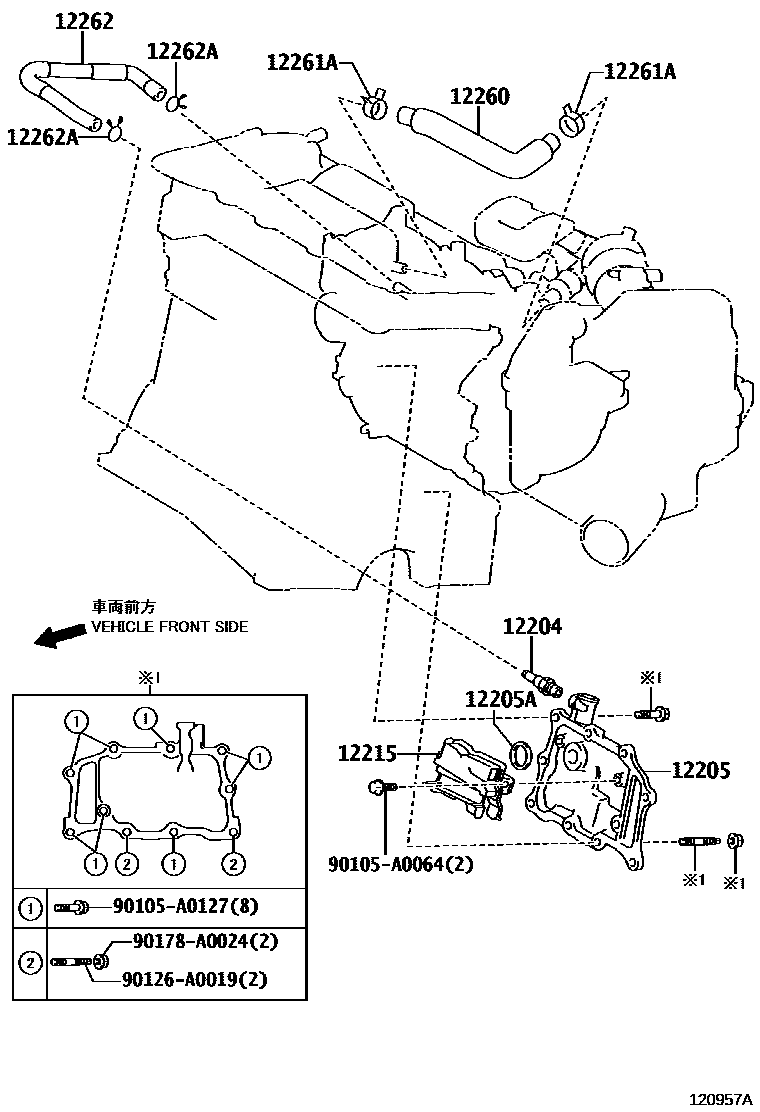

VENTILATION HOSE

12204VALVE SUB-ASSY, VENTILATION

main12204-36020i2ARFE..ASV50201504-201506

main12204-36030i2ARFE..ASV50201506

12205CASE SUB-ASSY, VENTILATION

main12205-0V010i2ARFE..ASV50201504

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFE..ASV50201504

12215SEPARATOR, CASE

main12215-0V010i2ARFE..ASV50201504

12260HOSE ASSY, VENTILATION

main12260-0V050i2ARFE..ASV50201504

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-21004×2i2ARFE..ASV50201504

12262HOSE, VENTILATION, NO.2

main12262-36040i2ARFE..ASV50201504

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035×2i2ARFE..ASV50201504

90105A0064

main90105-A0064

90105A0127

main90105-A0127

90126A0019

main90126-A0019

90178A0024

main90178-A0024

12 parts on this diagram · 1 diagram in section
