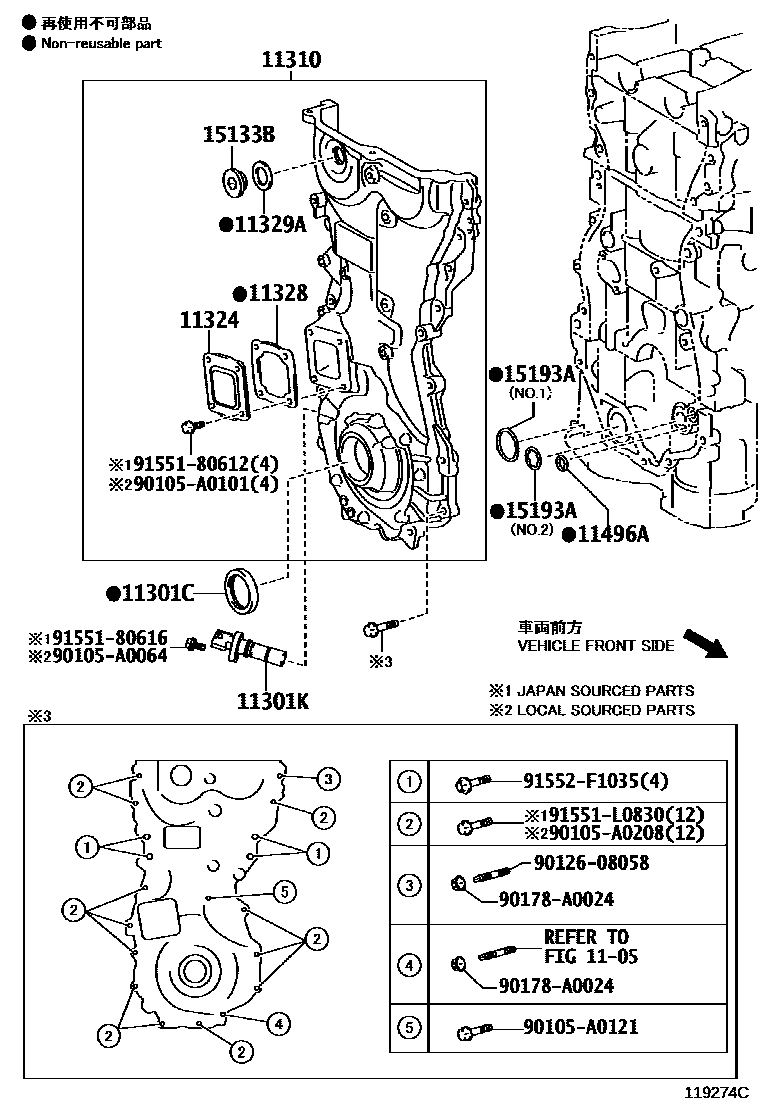

TIMING GEAR COVER & REAR END PLATE

1105CYLINDER BLOCK

→ Go to FIG 11-05

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-A0015i2ARFE..ASV50201504

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFE..ASV50201504

(J)

main90919-A5004i2ARFE..ASV50201504

(L)

11310COVER ASSY, TIMING CHAIN

main11310-0V020i2ARFE..ASV50201504

(L)

main11310-36020i2ARFE..ASV50201504

(J)

11324PLATE, TIMING CHAIN COVER

main11324-0V010i2ARFE..ASV50201504

(L)

main11324-36010i2ARFE..ASV50201504

(J)

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-0V010i2ARFE..ASV50201504

(L)

main11328-36020i2ARFE..ASV50201504

(J)

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-36020i2ARFE..ASV50201504

11496AGASKET, OIL HOLE COVER

main11496-36010i2ARFE..ASV50201504

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-36020i2ARFE..ASV50201504

15193AGASKET, OIL PUMP

main15193-36010i2ARFE..ASV50201504

NO.1

main15197-36010i2ARFE..ASV50201504

NO.2

90105A0064

main90105-A0064

90105A0101

main90105-A0101

90105A0121

main90105-A0121

90105A0208

main90105-A0208

9012608058

main90126-08058

90178A0024

main90178-A0024

9155180612

main91551-80612

9155180616

main91551-80616

91551L0830

main91551-L0830

91552F1035

main91552-F1035

20 parts on this diagram · 1 diagram in section
