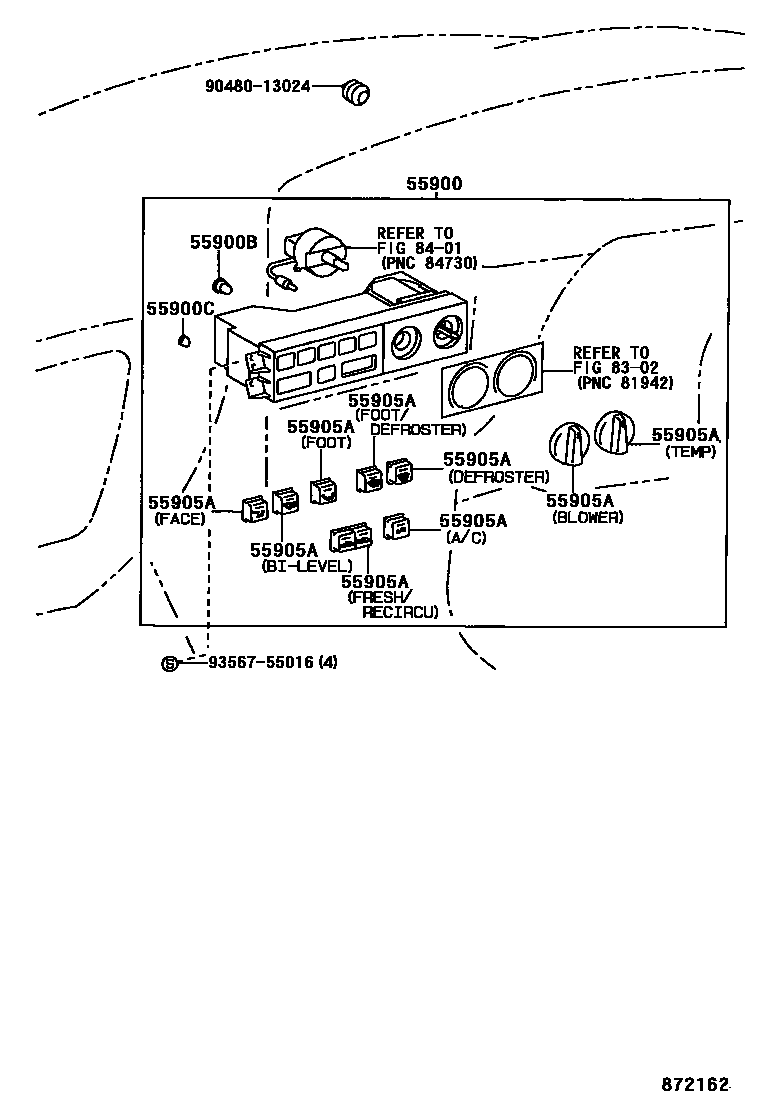

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL(PUSH TYPE) 0002 1HEATER CONTROL(LEVER TYPE) 0003 1AIR DUCT

55900CONTROL ASSY, AIR CONDITIONER

main55900-06021iMCV10,SXV10..NAP..XE199309-199607

55900BBULB, AIR CONDITIONER CONTROL

main84999-06010×2iMCV10,SXV10..NAP..XE199309-199607

12V 1.8W

55900CCAP, AIR CONDITIONER CONTROL BULB

main84998-06010iMCV10,SXV10..NAP..XE199309-199607

55905AKNOB, HEATER CONTROL

main55905-06010×2iMCV10,SXV10..NAP..(DX,GL,LE,SE,XL)199209-199408

MODE & TEMP

main55905-06020iMCV10,SXV10..NAP..XE199309-199408

main55905-06030iMCV10,SXV10..NAP..(DX,GL,LE,SE,XL)199209-199607

BLOWER

main55905-06040iMCV10,SXV10..NAP..(DX,GL,LE,SE,XL)199209-199607

FRESH/RECIRCU

main55905-06050iMCV10,SXV10..NAP..XE199309-199607

FACE

main55905-06060iMCV10,SXV10..NAP..XE199309-199607

B/L

main55905-06070iMCV10,SXV10..NAP..XE199309-199607

FOOT

main55905-06080iMCV10,SXV10..NAP..XE199309-199607

FOOT/DEFROSTER

main55905-06090iMCV10,SXV10..NAP..XE199309-199607

DEFROSTER

main55905-06100iMCV10,SXV10..NAP..XE199309-199607

A/C

main55905-06110iMCV10,SXV10..NAP..XE199309-199607

RECIRCU

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9048013024

main90480-13024

9356755016

main93567-55016

8 parts on this diagram · 3 diagrams in section
