MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-03010-B0iMCV10,SXV10..NAP..SED199508-199607

MEDIUM GRAY,TRIM1#

main87810-03010-E1iMCV10,SXV10..NAP..SED199508-199607

OAK,TRIM4#

main87810-03010-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main87810-22162-B0iSXV10..NAP..WG199309-199408

MEDIUM GRAY,TRIM1#

main87810-22162-E0iSXV10..NAP..WG199209-199408

OAK,TRIM4#

87816SPRING, INNER REAR VIEW MIRROR

main74372-30030iMCV10,SXV10..NAP199209-199607

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-03010iMCV10,SXV10..NAP199209-199607

L=44

main87828-87005iMCV10,SXV10..NAP199209-199607

L=49

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-06010-B0iMCV10,SXV10..NAP199301-199607

LIGHT GRAY,TRIM1#

main87834-06010-E0iMCV10,SXV10..NAP199301-199607

LT.OAK,TRIM4#

main87834-06010-J0iSXV10..NAP199301-199309

LIGHT BLUE,TRIM8#

main87834-06010-K0iMCV10,SXV10..NAP..SED199309-199607

LIGHT TAUPE,TRIM9#

main87834-32010-B0iSXV10..NAP199209-199301

LIGHT GRAY,TRIM1#

main87834-32010-E0iSXV10..NAP199209-199301

LIGHT OAK,TRIM4#

main87834-32010-J0iSXV10..NAP199209-199301

LIGHT BLUE,TRIM8#

87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH

main87931-33070iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH

main87961-33070iMCV10,SXV10..NAP199408-199607

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-33050iSXV10..NAP..(DX,XL)199209-199607

main87910-33060-02iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

SUPER RED 3,3J6

main87910-33060-A0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

SUPER WHITE 2,040

main87910-33060-A1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

SUPER WHITE 2,040

main87910-33060-B0iSXV10..NAP..GL199209-199309

SUPER SILVER 3 M.,176

main87910-33060-B2iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

BLUISH SILVER ME.,1A0

main87910-33060-C0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

BLACK,202

main87910-33060-C1iMCV10,SXV10..NAP..(LE,XE)199408-199607

BLACK,202

main87910-33060-D4iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199508

RED MICA ME.,3K4

main87910-33060-D5iMCV10,SXV10..NAP..(LE,XE)199408-199607

SU.RED 3,3J6

main87910-33060-D6iMCV10,SXV10..NAP..(GL,LE,XE)199508-199607

MAGENTA MC.,3L3

main87910-33060-E0iSXV10..NAP..GL199209-199309

BEIGE MICA METALLIC,4J1

main87910-33060-E2iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

BEIGE ME.,4M9

main87910-33060-G0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

DARK GREEN MICA,6M1

main87910-33060-G2iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

GREENISH SILVER ME.,6L3

main87910-33060-G3iMCV10,SXV10..NAP..(GL,LE,XE)199409-199508

DK GREEN MICA,6M1

main87910-33060-G4iMCV10,SXV10..NAP..(GL,LE,XE)199508-199607

DK.GREEN M.M.,6P2

main87910-33060-J1iSXV10..NAP..GL199209-199309

DARK BLUE MICA,8J4

main87910-33060-J3iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

LT.BLUE MICA ME.,8J6

main87910-33060-J5iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

DK..BLUE MM.,8K0

main87910-33060-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

GRAYISH PURPLE M.,923

main87910-33060-K2iMCV10,SXV10..NAP..(LE,XE)199408-199607

GRAYISH PURPLE M,923

main87910-33060-K3iMCV10,SXV10..NAP..(LE,XE)199512-199607

DARK TAUPE MCOP,927

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-33050iSXV10..NAP..(DX,XL)199209-199607

main87940-33060-02iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

SUPER RED 3,3J6

main87940-33060-A0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

SUPER WHITE 2,040

main87940-33060-A1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

SUPER WHITE 2,040

main87940-33060-B0iSXV10..NAP..GL199209-199309

SUPER SILVER 3 M.,176

main87940-33060-B2iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

BLUISH SILVER ME.,1A0

main87940-33060-C0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

BLACK,202

main87940-33060-C1iMCV10,SXV10..NAP..(LE,XE)199408-199607

BLACK,202

main87940-33060-D4iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199508

RED MICA ME.,3K4

main87940-33060-D5iMCV10,SXV10..NAP..(LE,XE)199408-199607

SU.RED 3,3J6

main87940-33060-D6iMCV10,SXV10..NAP..(GL,LE,XE)199508-199607

MAGENTA MC.,3L3

main87940-33060-E0iSXV10..NAP..GL199209-199309

BEIGE MICA METALLIC,4J1

main87940-33060-E2iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

BEIGE ME.,4M9

main87940-33060-G0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

DARK GREEN MICA,6M1

main87940-33060-G2iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

GREENISH SILVER ME.,6L3

main87940-33060-G3iMCV10,SXV10..NAP..(GL,LE,XE)199409-199508

DK GREEN MICA,6M1

main87940-33060-G4iMCV10,SXV10..NAP..(GL,LE,XE)199508-199607

DK.GREEN M.M.,6P2

main87940-33060-J1iSXV10..NAP..GL199209-199309

DARK BLUE MICA,8J4

main87940-33060-J3iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

LT.BLUE MICA ME.,8J6

main87940-33060-J5iMCV10,SXV10..NAP..(GL,LE,SE,XE)199309-199607

DK.BLUE MM.,8K0

main87940-33060-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

GRAYISH PURPLE M.,923

main87940-33060-K2iMCV10,SXV10..NAP..(LE,XE)199408-199607

GRAYISH PURPLE M,923

main87940-33060-K3iMCV10,SXV10..NAP..(LE,XE)199512-199607

DARK TAUPE MCOP,927

9014950059

main90149-50059

9015350011

main90153-50011

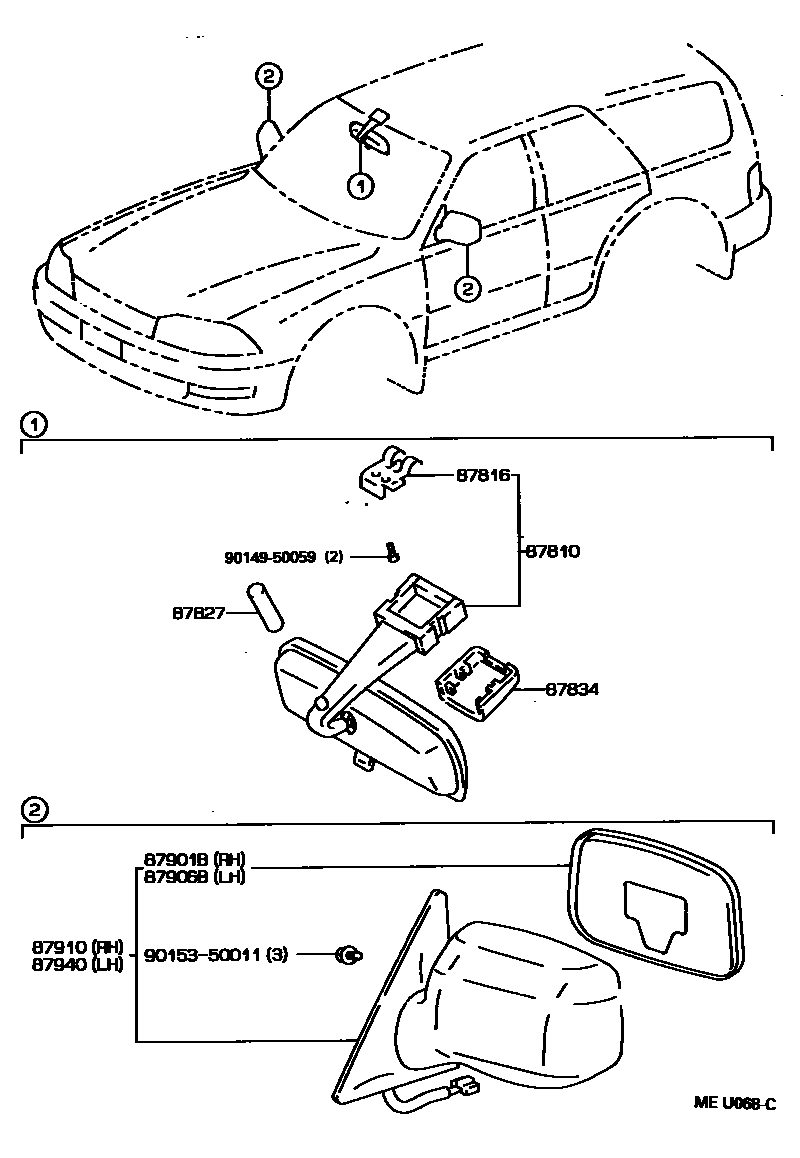

10 parts on this diagram · 1 diagram in section
