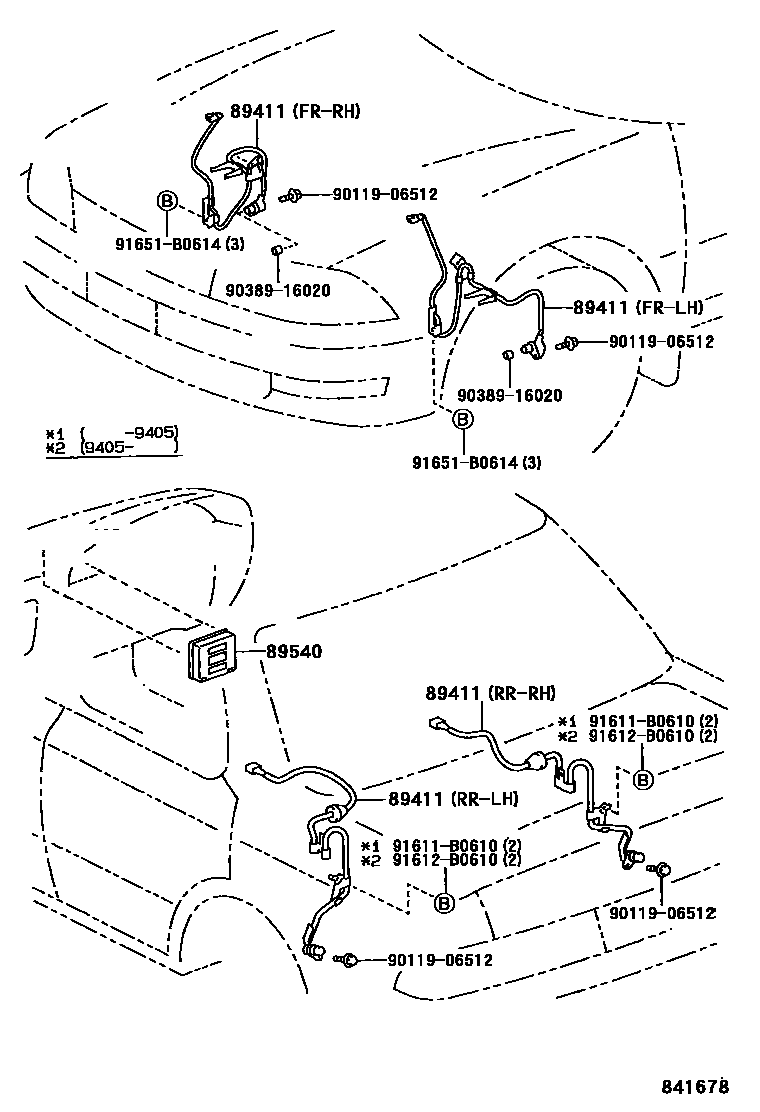

ABS & VSC

89411SENSOR, SPEED

main89542-33010iMCV10,SXV10..NAP..(LE,SE,XE)199309-199606

FRONT RH

main89543-33010iMCV10,SXV10..NAP..(LE,SE,XE)199309-199606

FRONT LH

main89545-33010iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

REAR RH

main89546-33010iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

REAR LH

89540COMPUTER ASSY, SKID CONTROL

main89541-06010iMCV10,SXV10..NAP..(LE,SE,XE)199309-199405

main89541-06021iMCV10,SXV10..NAP..(LE,SE,XE)199405-199607

9011906512

main90119-06512

9038916020

main90389-16020

91611B0610

main91611-B0610

91612B0610

main91612-B0610

91651B0614

main91651-B0614

7 parts on this diagram · 1 diagram in section
