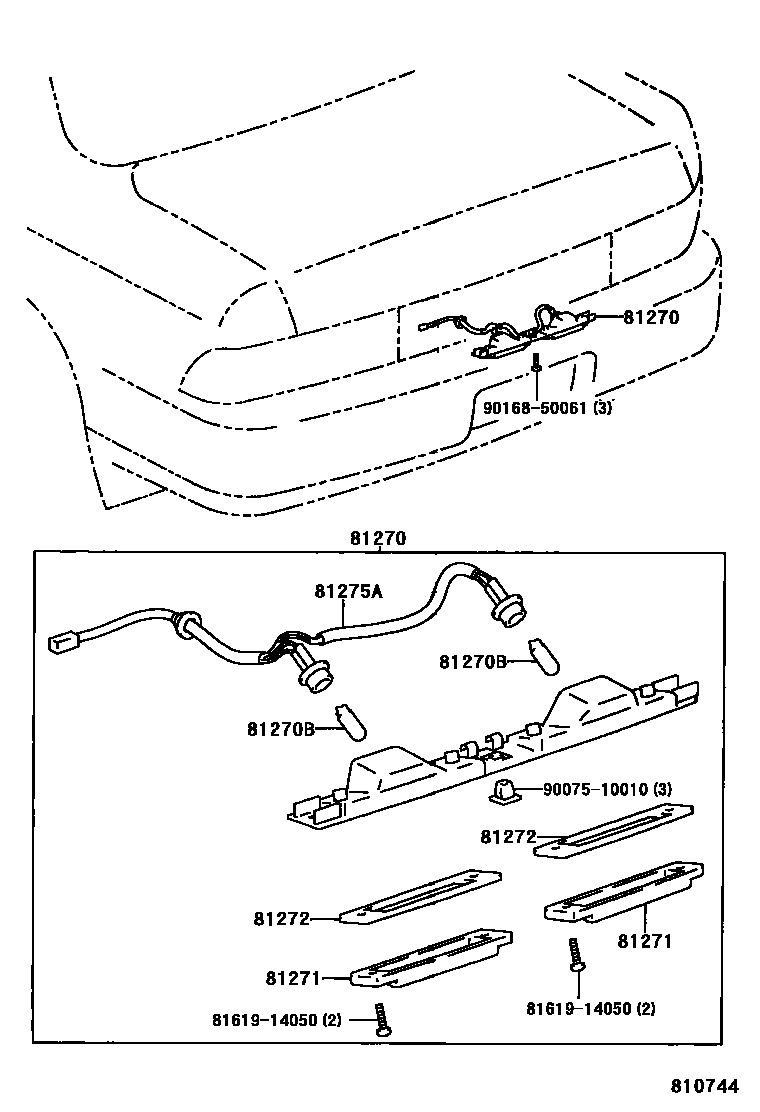

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-06010iMCV10,SXV10..NAP..SED199309-199607

main81270-33020-A0iSXV10..NAP..WG199209-199408

SUPER WHITE 2,040

main81270-33020-A1iSXV10..NAP..WG199408-199607

SUPER WHITE 2,040

main81270-33020-B0iSXV10..NAP199209-199309

SUPER SILVER 3 ME.,176

main81270-33020-B1iSXV10..NAP..WG199309-199408

BLUISH SILVER ME.,1A0

main81270-33020-B2iSXV10..NAP..WG199408-199607

BLUISH SILVER ME.,1A0

main81270-33020-D4iSXV10..NAP..WG199209-199508

RED MICA ME.,3K4

main81270-33020-D6iSXV10..NAP..WG199508-199607

MAGENTA MC.,3L3

main81270-33020-E0iSXV10..NAP199209-199309

BEIGE MICA ME.,4J1

main81270-33020-E1iSXV10..NAP..WG199309-199408

BEIGE ME.,4M9

main81270-33020-E2iSXV10..NAP..WG199408-199607

BEIGE ME.,4M9

main81270-33020-G2iSXV10..NAP..WG199408-199607

GREENISH SILVER M.M,6L3

main81270-33020-G3iSXV10..NAP..WG199408-199508

DK GREEN MICA,6M1

main81270-33020-G4iSXV10..NAP..WG199508-199607

DK.GREEN M.M.,6P2

main81270-33020-J1iSXV10..NAP199209-199309

DARK BLUE MICA,8J4

main81270-33020-J3iSXV10..NAP..WG199209-199408

LIGHT BLUE MICA ME,8J6

main81270-33020-J4iSXV10..NAP..WG199309-199408

DARK BLUE MM.,8K0

main81270-33020-J5iSXV10..NAP..WG199408-199607

DK.BLUE M.M.,8K0

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12010×2iMCV10,SXV10..NAP..SED199309-199607

12V 5W

main99132-12050×2iSXV10..NAP..WG199209-199607

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-06010×2iMCV10,SXV10..NAP..SED199309-199607

81272GASKET, LICENSE PLATE LAMP LENS

main81274-06010×2iMCV10,SXV10..NAP..SED199309-199607

81275ACORD, LICENSE PLATE LAMP

main81275-06010iMCV10,SXV10..NAP..SED199309-199607

8161914050

main81619-14050

9007510010

main90075-10010

9016850061

main90168-50061

8 parts on this diagram · 2 diagrams in section
