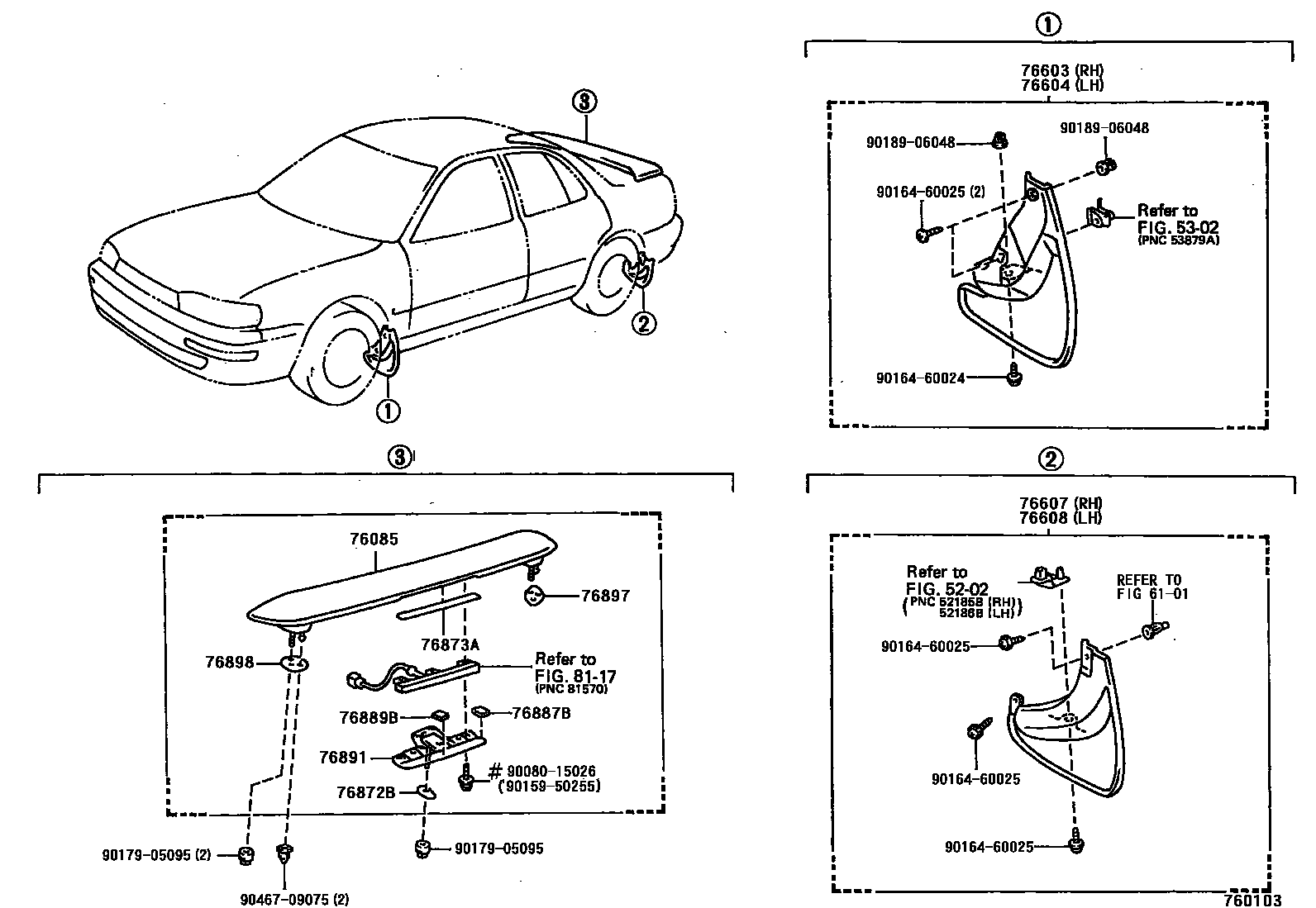

MUDGUARD & SPOILER

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

76085SPOILER SUB-ASSY, REAR

main76871-06900×11iMCV10..NAP..SE199309-199408

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-39225iMCV10,SXV10..NAP199209-199607

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-39225iMCV10,SXV10..NAP199209-199607

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-39305iMCV10,SXV10..NAP..SED199309-199607

main76625-39365iSXV10..NAP..WG199209-199607

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-39305iMCV10,SXV10..NAP..SED199309-199607

main76626-39365iSXV10..NAP..WG199209-199607

76872BPROTECTOR, REAR SPOILER, CENTER

main76872-06010iMCV10..NAP..SE199309-199408

76873APROTECTOR, REAR SPOILER, RH

main76873-06010iMCV10..NAP..SE199309-199408

76887BPROTECTOR, REAR SPOILER SIDE, NO.2

main76887-06010×2iMCV10..NAP..SE199309-199408

76889BSEAL, REAR SPOILER, NO.1

main76889-06010iMCV10..NAP..SE199309-199408

76891SPOILER, REAR NO.1

main76891-06900×11iMCV10..NAP..SE199309-199403

76897PROTECTOR, REAR SPOILER, SIDE RH

main76897-06010iMCV10..NAP..SE199309-199408

76898PROTECTOR, REAR SPOILER, SIDE LH

main76898-06010iMCV10..NAP..SE199309-199408

9008015026

main90080-15026

9015950255

main90159-50255

9016460024

main90164-60024

9016460025

main90164-60025

9017905095

main90179-05095

9018906048

main90189-06048

9046709075

main90467-09075

20 parts on this diagram · 2 diagrams in section
