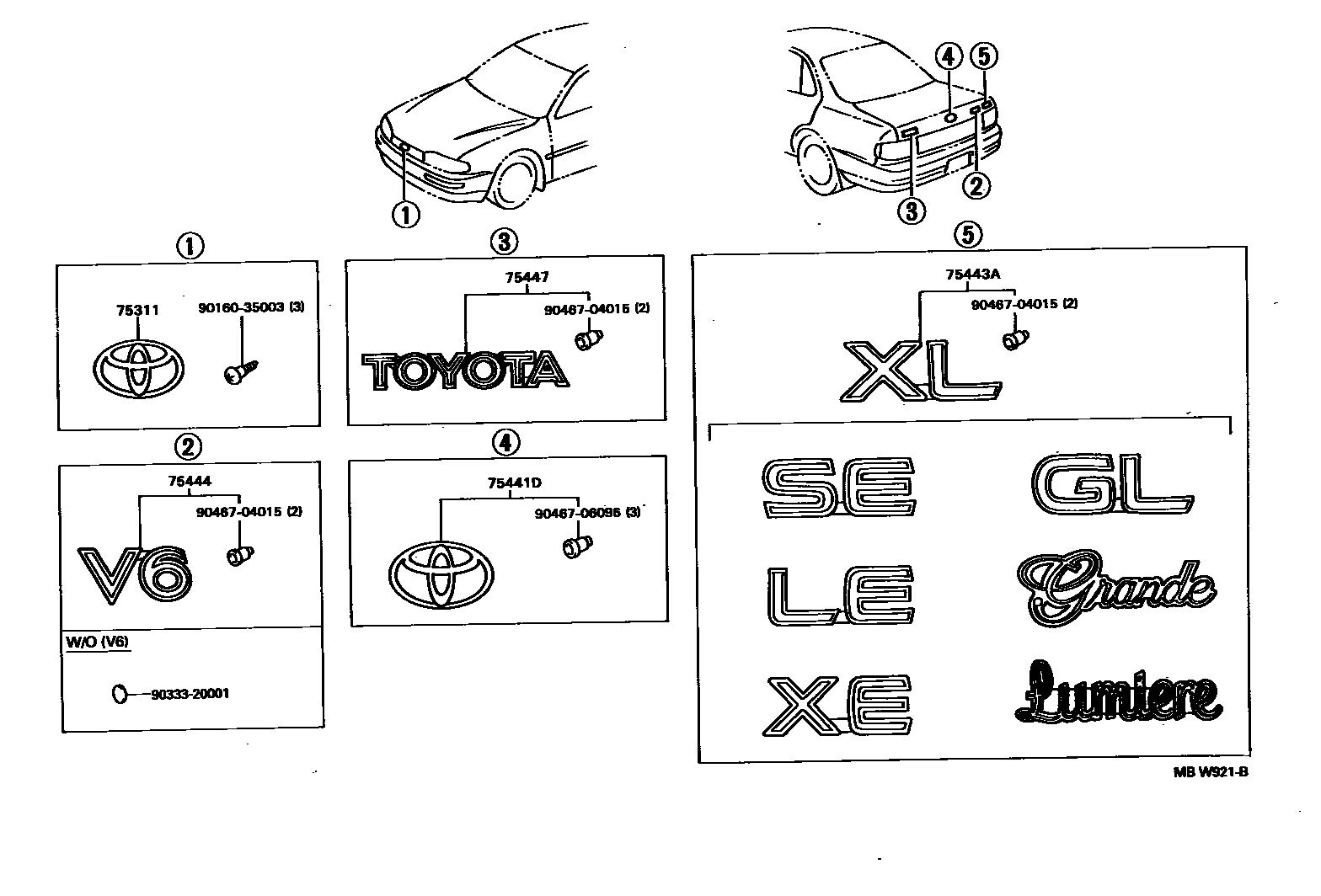

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-06010iMCV10,SXV10..NAP199209-199408

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-06010iMCV10,SXV10..NAP..SED199309-199311

75443PLATE, BACK DOOR NAME, NO.3

main75443-06050iSXV10..NAP..XL199209-199607

XL

main75443-06060iSXV10..NAP..GL199209-199607

GL

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-06010iSXV10..NAP..LE199309-199408

LE

main75443-06030iMCV10..NAP..SE199309-199408

SE

main75443-AA010iMCV10,SXV10..NAP..XE199408-199607

XE

main75443-AA020iSXV10..NAP..LE199408-199607

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-06010iMCV10..NAP199309-199408

V6

main75444-AA010iMCV10..NAP199408-199607

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-06010iMCV10,SXV10..NAP..SED199309-199312

main75447-06030iMCV10,SXV10..NAP..SED199312-199607

9016035003

main90160-35003

9033320001

main90333-20001

9046704015

main90467-04015

9046706096

main90467-06096

10 parts on this diagram · 2 diagrams in section
