E
EPC Data

FRONT SEAT & SEAT TRACK

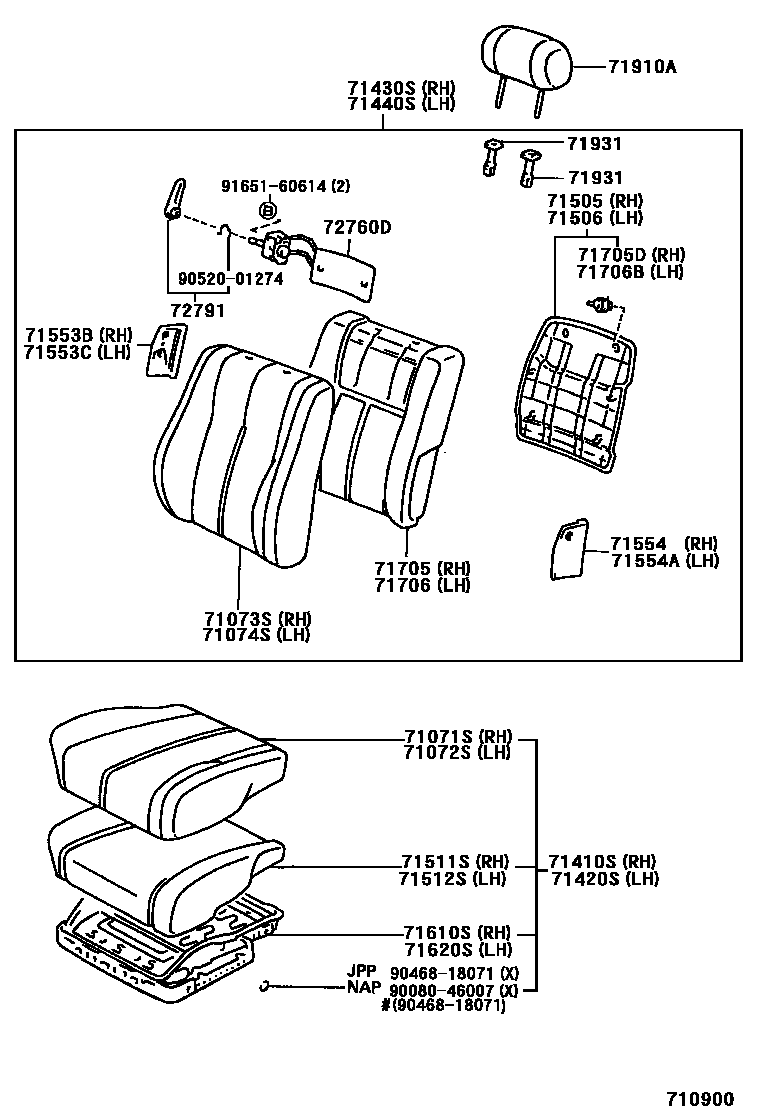

Parts diagram
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71071-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71071-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71071-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71071-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71071-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71071-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71071-06011-K2i199309-199408
TAUPE,TRIM9#
main71071-06011-K4i199408-199508
TAUPE,TRIM9#
main71071-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71071-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71071-06012-K5i199508-199607
TAUPE,TRIM9#
main71071-06020-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71071-06020-E0i199209-199309
MEDIUM OAK,TRIM4#
main71071-06020-J0i199209-199309
DARK BLUE,TRIM8#
main71071-06021-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71071-06021-E1i199309-199408
MEDIUM OAK,TRIM4#
main71071-06021-K1i199309-199408
TAUPE,TRIM9#
main71071-06022-B4i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06022-E4i199408-199607
MEDIUM OAK,TRIM4#
main71071-06022-K4i199408-199607
TAUPE,TRIM9#
main71071-06030-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71071-06030-E0i199309-199408
MEDIUM OAK,TRIM4#
main71071-06030-K0i199309-199408
TAUPE,TRIM9#
main71071-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71071-06031-E2i199408-199607
MEDIUM OAK,TRIM4#
main71071-06031-K3i199408-199607
TAUPE,TRIM9#
main71071-06041-B0i199309-199408
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71071-06041-E0i199309-199408
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71071-06042-B2i199408-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71071-06042-E2i199408-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71071-06050-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71071-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71071-06050-K0i199309-199408
TAUPE,TRIM9#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71072-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71072-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71072-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71072-06011-B5i199408-199508
MEDIUM GRAY,TRIM1#
main71072-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71072-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71072-06011-K2i199309-199408
TAUPE,TRIM9#
main71072-06011-K4i199408-199508
TAUPE,TRIM9#
main71072-06012-B6i199508-199607
MEDIUM GRAY,TRIM1#
main71072-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71072-06012-K5i199508-199607
TAUPE,TRIM9#
main71072-06020-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71072-06020-E0i199209-199309
MEDIUM OAK,TRIM4#
main71072-06020-J0i199209-199309
DARK BLUE,TRIM8#
main71072-06021-B2i199309-199408
MEDIUM GRAY,TRIM1#
main71072-06021-E2i199309-199408
MEDIUM OAK,TRIM4#
main71072-06021-K2i199309-199408
TAUPE,TRIM9#
main71072-06022-B5i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06022-E5i199408-199607
MEDIUM OAK,TRIM4#
main71072-06022-K5i199408-199607
TAUPE,TRIM9#
main71072-06050-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71072-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71072-06050-K0i199309-199408
TAUPE,TRIM9#
main71072-06051-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71072-06051-E2i199408-199607
MEDIUM OAK,TRIM4#
main71072-06051-K3i199408-199607
TAUPE,TRIM9#
main71072-06061-B0i199309-199408
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71072-06061-E0i199309-199408
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71072-06062-B4i199408-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71072-06062-E4i199408-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71072-06070-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71072-06070-E0i199309-199408
MEDIUM OAK,TRIM4#
main71072-06070-K0i199309-199408
TAUPE,TRIM9#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71073-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71073-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71073-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71073-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71073-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71073-06011-K2i199309-199408
TAUPE,TRIM9#
main71073-06011-K4i199408-199508
TAUPE,TRIM9#
main71073-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71073-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71073-06012-K5i199508-199607
TAUPE,TRIM9#
main71073-06020-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71073-06020-E0i199209-199309
MEDIUM OAK,TRIM4#
main71073-06020-J0i199209-199309
DARK BLUE,TRIM8#
main71073-06030-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06030-E0i199309-199408
OAK,TRIM4#
main71073-06030-K0i199309-199408
TAUPE,TRIM9#
main71073-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06031-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06031-K3i199408-199607
TAUPE,TRIM9#
main71073-06041-B0i199309-199408
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71073-06041-B4i199408-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71073-06041-E0i199309-199408
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71073-06041-E5i199408-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71073-06050-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06050-K0i199309-199408
TAUPE,TRIM9#
main71073-06120-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06120-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06120-K0i199309-199408
TAUPE,TRIM9#
main71073-06121-B3i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06121-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06121-K3i199408-199607
TAUPE,TRIM9#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71073-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71073-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71073-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71073-06011-B1i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06011-B4i199408-199508
MEDIUM GRAY,TRIM1#
main71073-06011-E1i199309-199408
MEDIUM OAK,TRIM4#
main71073-06011-E4i199408-199508
MEDIUM OAK,TRIM4#
main71073-06011-K2i199309-199408
TAUPE,TRIM9#
main71073-06011-K4i199408-199508
TAUPE,TRIM9#
main71073-06012-B5i199508-199607
MEDIUM GRAY,TRIM1#
main71073-06012-E5i199508-199607
MEDIUM OAK,TRIM4#
main71073-06012-K5i199508-199607
TAUPE,TRIM9#
main71073-06020-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71073-06020-E0i199209-199309
MEDIUM OAK,TRIM4#
main71073-06020-J0i199209-199309
DARK BLUE,TRIM8#
main71073-06030-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06030-E0i199309-199408
OAK,TRIM4#
main71073-06030-K0i199309-199408
TAUPE,TRIM9#
main71073-06031-B2i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06031-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06031-K3i199408-199607
TAUPE,TRIM9#
main71073-06041-B0i199309-199408
W(LEATHER SEAT),MEDIUM GRAY,TRIM1#
main71073-06041-B4i199408-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71073-06041-E0i199309-199408
W(LEATHER SEAT),LIGHT OAK,TRIM4#
main71073-06041-E5i199408-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71073-06050-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06050-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06050-K0i199309-199408
TAUPE,TRIM9#
main71073-06120-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71073-06120-E0i199309-199408
MEDIUM OAK,TRIM4#
main71073-06120-K0i199309-199408
TAUPE,TRIM9#
main71073-06121-B3i199408-199607
MEDIUM GRAY,TRIM1#
main71073-06121-E3i199408-199607
MEDIUM OAK,TRIM4#
main71073-06121-K3i199408-199607
TAUPE,TRIM9#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-06010-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71410-06010-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71410-06010-J0i199209-199309
***,DARK BLUE,TRIM8#
main71410-06011-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71410-06011-B3i199408-199508
***,MEDIUM GRAY,TRIM1#
main71410-06011-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71410-06011-E3i199408-199508
***,OAK,TRIM4#
main71410-06011-K2i199309-199408
***,TAUPE,TRIM9#
main71410-06011-K3i199408-199508
***,TAUPE,TRIM9#
main71410-06012-B4i199508-199607
***,MEDIUM GRAY,TRIM1#
main71410-06012-E4i199508-199607
***,MEDIUM OAK,TRIM4#
main71410-06012-K4i199508-199607
***,TAUPE,TRIM9#
main71410-06020-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71410-06020-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71410-06020-J0i199209-199309
***,DARK BLUE,TRIM8#
main71410-06021-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71410-06021-E1i199309-199408
***,MEDIUM OAK,TRIM1#
main71410-06022-B2i199408-199607
***,MEDIUM GRAY,TRIM1#
main71410-06022-E2i199408-199607
***,OAK,TRIM4#
main71410-06022-K2i199408-199607
***,TAUPE,TRIM9#
main71410-06030-B0i199309-199408
***,MEDIUM GRAY,TRIM1#
main71410-06030-E0i199309-199408
***,MEDIUM OAK,TRIM4#
main71410-06030-K0i199309-199408
***,TAUPE,TRIM9#
main71410-06031-B1i199408-199607
***,MEDIUM GRAY,TRIM1#
main71410-06031-E1i199408-199607
***,OAK,TRIM4#
main71410-06031-K2i199408-199607
***,TAUPE,TRIM9#
main71410-06041-B0i199309-199408
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71410-06041-E0i199309-199408
***,W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71410-06042-B1i199408-199607
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71410-06042-E1i199408-199607
***,W(LEATHER SEAT)-*104,OAK,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-06010-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71420-06010-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71420-06010-J0i199209-199309
***,DARK BLUE,TRIM8#
main71420-06011-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71420-06011-B3i199408-199508
***,MEDIUM GRAY,TRIM1#
main71420-06011-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71420-06011-E3i199408-199508
***,OAK,TRIM4#
main71420-06011-K2i199309-199408
***,TAUPE,TRIM9#
main71420-06011-K3i199408-199508
***,TAUPE,TRIM9#
main71420-06012-B4i199508-199607
***,MEDIUM GRAY,TRIM1#
main71420-06012-E4i199508-199607
***,MEDIUM OAK,TRIM4#
main71420-06012-K4i199508-199607
***,TAUPE,TRIM9#
main71420-06020-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71420-06020-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71420-06020-J0i199209-199309
***,DARK BLUE,TRIM8#
main71420-06021-B2i199309-199408
***,MEDIUM GRAY,TRIM1#
main71420-06021-E2i199309-199408
***,MEDIUM OAK,TRIM4#
main71420-06022-B3i199408-199607
***,MEDIUM GRAY,TRIM1#
main71420-06022-E3i199408-199607
***,OAK,TRIM4#
main71420-06022-K3i199408-199607
***,TAUPE,TRIM9#
main71420-06040-B0i199309-199408
***,MEDIUM GRAY,TRIM1#
main71420-06040-E0i199309-199408
***,MEDIUM OAK,TRIM4#
main71420-06040-K0i199309-199408
***,TAUPE,TRIM9#
main71420-06041-B1i199408-199607
***,MEDIUM GRAY,TRIM1#
main71420-06041-E1i199408-199607
***,OAK,TRIM4#
main71420-06041-K1i199408-199607
***,TAUPE,TRIM9#
main71420-06051-B0i199309-199408
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71420-06051-E0i199309-199408
***,W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71420-06052-B1i199408-199607
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71420-06052-E1i199408-199607
***,W(LEATHER SEAT)-*104,OAK,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-06010-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71430-06010-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71430-06010-J0i199209-199309
***,DARK BLUE,TRIM8#
main71430-06011-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71430-06011-B3i199408-199508
***,MEDIUM GRAY,TRIM1#
main71430-06011-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71430-06011-E3i199408-199508
***,OAK,TRIM4#
main71430-06011-K2i199309-199408
***,TAUPE,TRIM9#
main71430-06011-K3i199408-199508
***,TAUPE,TRIM9#
main71430-06012-B4i199508-199607
***,MEDIUM GRAY,TRIM1#
main71430-06012-E4i199508-199607
***,MEDIUM OAK,TRIM4#
main71430-06012-K4i199508-199607
***,TAUPE,TRIM9#
main71430-06020-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71430-06020-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71430-06020-J0i199209-199309
***,DARK BLUE,TRIM8#
main71430-06021-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71430-06021-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71430-06022-B2i199408-199607
***,MEDIUM GRAY,TRIM1#
main71430-06022-E2i199408-199607
***,OAK,TRIM4#
main71430-06022-K2i199408-199607
***,TAUPE,TRIM9#
main71430-06030-B0i199309-199408
***,MEDIUM GRAY,TRIM1#
main71430-06030-E0i199309-199408
***,MEDIUM OAK,TRIM4#
main71430-06030-K0i199309-199408
***,TAUPE,TRIM9#
main71430-06031-B1i199408-199607
***,MEDIUM GRAY,TRIM1#
main71430-06031-E1i199408-199607
***,OAK,TRIM4#
main71430-06031-K2i199408-199607
***,TAUPE,TRIM9#
main71430-06041-B0i199309-199408
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71430-06041-B1i199408-199607
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71430-06041-E0i199309-199408
***,W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71430-06041-E1i199408-199607
***,W(LEATHER SEAT)-*104,OAK,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71430-06010-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71430-06010-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71430-06010-J0i199209-199309
***,DARK BLUE,TRIM8#
main71430-06011-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71430-06011-B3i199408-199508
***,MEDIUM GRAY,TRIM1#
main71430-06011-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71430-06011-E3i199408-199508
***,OAK,TRIM4#
main71430-06011-K2i199309-199408
***,TAUPE,TRIM9#
main71430-06011-K3i199408-199508
***,TAUPE,TRIM9#
main71430-06012-B4i199508-199607
***,MEDIUM GRAY,TRIM1#
main71430-06012-E4i199508-199607
***,MEDIUM OAK,TRIM4#
main71430-06012-K4i199508-199607
***,TAUPE,TRIM9#
main71430-06020-B0i199209-199309
***,MEDIUM GRAY,TRIM1#
main71430-06020-E0i199209-199309
***,MEDIUM OAK,TRIM4#
main71430-06020-J0i199209-199309
***,DARK BLUE,TRIM8#
main71430-06021-B1i199309-199408
***,MEDIUM GRAY,TRIM1#
main71430-06021-E1i199309-199408
***,MEDIUM OAK,TRIM4#
main71430-06022-B2i199408-199607
***,MEDIUM GRAY,TRIM1#
main71430-06022-E2i199408-199607
***,OAK,TRIM4#
main71430-06022-K2i199408-199607
***,TAUPE,TRIM9#
main71440-06010-B0i199309-199408
***,MEDIUM GRAY,TRIM1#
main71440-06010-E0i199309-199408
***,MEDIUM OAK,TRIM4#
main71440-06010-K0i199309-199408
***,TAUPE,TRIM9#
main71440-06011-B1i199408-199607
***,MEDIUM GRAY,TRIM1#
main71440-06011-E1i199408-199607
***,OAK,TRIM4#
main71440-06011-K2i199408-199607
***,TAUPE,TRIM9#
main71440-06021-B0i199309-199408
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71440-06021-B1i199408-199607
***,W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71440-06021-E0i199309-199408
***,W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71440-06021-E1i199408-199607
***,W(LEATHER SEAT)-*104,OAK,TRIM4#
71505PAD SUB-ASSY, FRONT SEATBACK W/FRAME, RH
main71505-06010i199209-199309
main71505-06030i199309-199408
main71505-06050i199309-199607
71506PAD SUB-ASSY, FRONT SEATBACK W/FRAME, LH
main71505-06010i199209-199309
main71505-06050i199309-199607
main71506-06010i199309-199607
main71506-06020i199309-199408
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-06010i199209-199607
main71511-06020i199309-199607
W(LEATHER SEAT)-*104
main71511-06030i199309-199408
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-06010i199209-199607
main71511-06030i199309-199408
main71512-06010i199309-199607
main71512-06020i199309-199607
W(LEATHER SEAT)-*104
71553BPAD, FRONT SEATBACK, B
main71553-33020i199209-199309
main71553-AA010i199309-199607
71553CPAD, FRONT SEATBACK, C
main71553-33020i199209-199309
main71553-AA010i199309-199607
71554PAD, FRONT SEATBACK, C
main71554-33010i199209-199309
main71554-AA010i199309-199607
71554APAD, FRONT SEATBACK, CENTER
main71554-33010i199209-199309
main71554-AA010i199309-199607
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71610-06010i199209-199607
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-06010i199209-199607
main71620-06020i199209-199607
main71620-06030i199309-199607
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71705-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71705-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71705-06020-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71705-06020-E0i199309-199408
MEDIUM OAK,TRIM4#
main71705-06020-K0i199309-199408
TAUPE,TRIM9#
main71705-06021-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71705-06021-E1i199408-199607
MEDIUM OAK,TRIM4#
main71705-06021-K2i199408-199607
TAUPE,TRIM9#
main71705-06030-B0i199309-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71705-06030-E0i199309-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71705-06040-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71705-06040-E0i199309-199408
MEDIUM OAK,TRIM4#
main71705-06040-K0i199309-199408
TAUPE,TRIM9#
71705DCLIP, FRONT SEATBACK BOARD
main71769-33010×2i199209-199309
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
main71705-06010-B0i199209-199309
MEDIUM GRAY,TRIM1#
main71705-06010-E0i199209-199309
MEDIUM OAK,TRIM4#
main71705-06010-J0i199209-199309
DARK BLUE,TRIM8#
main71705-06020-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71705-06020-E0i199309-199408
MEDIUM OAK,TRIM4#
main71705-06020-K0i199309-199408
TAUPE,TRIM9#
main71705-06021-B1i199408-199607
MEDIUM GRAY,TRIM1#
main71705-06021-E1i199408-199607
MEDIUM OAK,TRIM4#
main71705-06021-K2i199408-199607
TAUPE,TRIM9#
main71705-06030-B0i199309-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71705-06030-E0i199309-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71705-06040-B0i199309-199408
MEDIUM GRAY,TRIM1#
main71705-06040-E0i199309-199408
MEDIUM OAK,TRIM4#
main71705-06040-K0i199309-199408
TAUPE,TRIM9#
71706BCLIP, FRONT SEATBACK BOARD
main71769-33010×2i199209-199309
71910AHEADREST ASSY, FRONT SEAT
main71910-06010-B0×2i199209-199309
MEDIUM GRAY,TRIM1#
main71910-06010-E0×2i199209-199309
MEDIUM OAK,TRIM4#
main71910-06010-J0×2i199209-199309
DARK BLUE,TRIM8#
main71910-06011-B1×2i199309-199408
MEDIUM GRAY,TRIM1#
main71910-06011-E1×2i199309-199408
MEDIUM OAK,TRIM4#
main71910-06011-K2×2i199309-199408
TAUPE,TRIM9#
main71910-06012-B1×2i199408-199508
MD.GRAY,TRIM1#
main71910-06012-E1×2i199408-199508
MD.OAK,TRIM4#
main71910-06012-K2×2i199408-199508
TAUPE,TRIM9#
main71910-06013-B3×2i199508-199607
MEDIUM GRAY,TRIM1#
main71910-06013-E3×2i199508-199607
MEDIUM OAK,TRIM4#
main71910-06013-K3×2i199508-199607
TAUPE,TRIM9#
main71910-06020-B0×2i199209-199309
MEDIUM GRAY,TRIM1#
main71910-06020-E0×2i199209-199309
MEDIUM OAK,TRIM4#
main71910-06020-J0×2i199209-199309
DARK BLUE,TRIM8#
main71910-06021-B2×2i199309-199408
MEDIUM GRAY,TRIM1#
main71910-06021-E2×2i199309-199408
MEDIUM OAK,TRIM4#
main71910-06021-K1×2i199309-199408
TAUPE,TRIM9#
main71910-06023-B3×2i199408-199607
MEDIUM GRAY,TRIM1#
main71910-06023-E3×2i199408-199607
MEDIUM OAK,TRIM4#
main71910-06023-K3×2i199408-199607
TAUPE,TRIM9#
main71910-06030-B0×2i199309-199408
MEDIUM GRAY,TRIM1#
main71910-06030-E0×2i199309-199408
OAK,TRIM4#
main71910-06030-K0×2i199309-199408
TAUPE,TRIM9#
main71910-06032-B1×2i199408-199607
MEDIUM GRAY,TRIM1#
main71910-06032-E1×2i199408-199607
MEDIUM OAK,TRIM4#
main71910-06032-K2×2i199408-199607
TAUPE,TRIM9#
main71910-06040-B0×2i199309-199408
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71910-06040-E0×2i199309-199408
W(LEATHER SEAT)-*104,OAK,TRIM4#
main71910-06041-B0×2i199408-199607
W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#
main71910-06041-E0×2i199408-199607
W(LEATHER SEAT)-*104,LIGHT OAK,TRIM4#
main71910-06050-B0×2i199309-199408
MEDIUM GRAY,TRIM1#
main71910-06050-E0×2i199309-199408
MEDIUM OAK,TRIM4#
main71910-06050-K0×2i199309-199408
TAUPE,TRIM9#
71931SUPPORT, FRONT SEAT HEADREST
main71930-10070-B0×2i199210-199607
W(LOCK),MEDIUM GRAY,TRIM1#
main71930-10070-E1×2i199210-199607
W(LOCK),ROSEWOOD,TRIM4#
main71930-10070-J0×2i199210-199309
W(LOCK),DARK BLUE,TRIM8#
main71930-10070-K0×2i199309-199607
W(LOCK),TAUPE,TRIM9#
main71930-32010-B0×2i199209-199210
W(LOCK),MEDIUM GRAY,TRIM1#
main71930-32010-E0×2i199209-199210
W(LOCK),OAK,TRIM4#
main71930-32010-J0×2i199209-199210
W(LOCK),DARK BLUE,TRIM8#
main71931-10020-B0×2i199210-199607
W/O(LOCK),MEDIUM GRAY,TRIM1#
main71931-10020-E1×2i199210-199607
W/O(LOCK),ROSEWOOD,TRIM4#
main71931-10020-J0×2i199210-199309
W/O(LOCK),DARK BLUE,TRIM8#
main71931-10020-K0×2i199309-199607
W/O(LOCK),TAUPE,TRIM9#
main71931-32010-B0×2i199209-199210
W/O(LOCK),MEDIUM GRAY,TRIM1#
main71931-32010-E0×2i199209-199210
W/O(LOCK),OAK,TRIM4#
main71931-32010-J0×2i199209-199210
W/O(LOCK),DARK BLUE,TRIM8#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
main72760-33010i199309-199607
72791LEVER, LUMBAR SUPPORT
main72791-22020-B0i199309-199607
MEDIUM GRAY,TRIM1#
main72791-22020-E8i199309-199607
OAK,TRIM4#
main72791-22020-K0i199309-199607
TAUPE,TRIM9#
9008046007
main90080-46007
9046818071
main90468-18071
9052001274
main90520-01274
9165160614
main91651-60614

30 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
