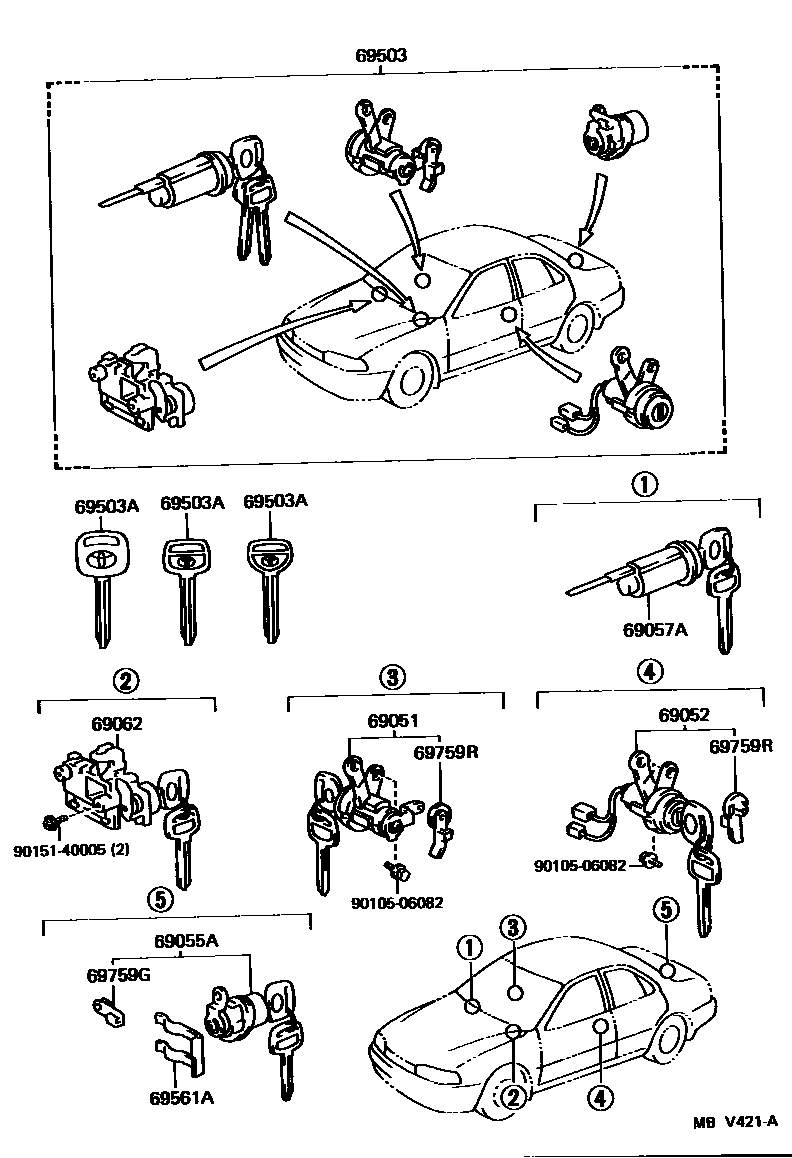

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-33010iMCV10,SXV10..NAP199209-199607

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33010iSXV10..NAP..(DX,GL,XL)199408-199607

main69052-33020iMCV10,SXV10..NAP..(LE,XE)199408-199607

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33011iMCV10,SXV10..NAP..SED199309-199607

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33010iMCV10,SXV10..NAP199209-199607

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-33010iMCV10,SXV10..NAP199209-199607

69503CYLINDER SET, LOCK

main69005-33011iMCV10,SXV10..NAP..(LE,XE)199408-199607

main69005-33021iMCV10,SXV10..NAP..(DX,LE,SE)199309-199408

main69005-33080iSXV10..NAP..WG199209-199607

69503AKEY, BLANK

main90999-00185iMCV10,SXV10..NAP199209-199607

MASTER KEY,W(*68)

main90999-00186iMCV10,SXV10..NAP199209-199607

MASTER KEY

main90999-00188iMCV10,SXV10..NAP199209-199607

SUB KEY

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-33010iMCV10,SXV10..NAP..SED199309-199607

69759GSNAP, LUGGAGE DOOR LOCK CYLINDER

main69759-24080iMCV10,SXV10..NAP..SED199309-199607

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-32090iMCV10,SXV10..NAP199209-199607

RH

main69759-32100iMCV10,SXV10..NAP199209-199607

LH

9010506082

main90105-06082

9015140005

main90151-40005

12 parts on this diagram · 2 diagrams in section
