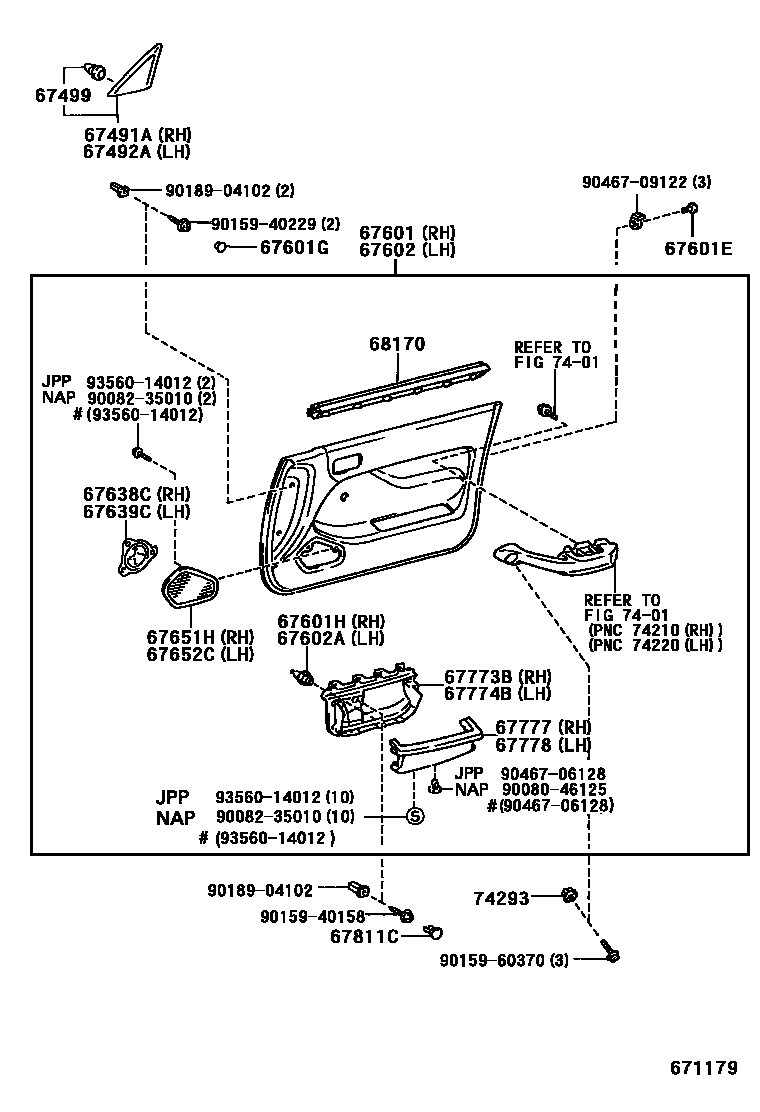

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1W(POWER WINDOW) 0005 1 0006 1 0007 1

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-06010iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

main67491-33010iSXV10..NAP..(DX,XL)199209-199607

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-06010iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

main67492-33010iSXV10..NAP..(DX,XL)199209-199607

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-06010×6iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

main67499-30020×6iSXV10..NAP..(DX,XL)199209-199607

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-06010-B0iSXV10..NAP..XL199209-199309

MEDIUM GRAY,TRIM1#

main67610-06010-E0iSXV10..NAP..XL199209-199309

OAK,TRIM4#

main67610-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67610-06011-B0iSXV10..NAP..XL199309-199408

MADIUM GRAY,TRIM1#

main67610-06011-E0iSXV10..NAP..XL199309-199408

OAK,TRIM4#

main67610-06020-B0iSXV10..NAP..XL199209-199309

W(SPEAKER),MEDIUM GRAY,TRIM1#

main67610-06020-E0iSXV10..NAP..XL199209-199309

W(SPEAKER),OAK,TRIM4#

main67610-06020-J0iSXV10..NAP..XL199209-199309

W(SPEAKER),DARK BLUE,TRIM8#

main67610-06021-B0iSXV10..NAP..XL199309-199408

W(SPEAKER),MADIUM GRAY,TRIM1#

main67610-06021-E0iSXV10..NAP..XL199408-199508

OAK,TRIM4#

main67610-06022-B2iSXV10..NAP..XL199508-199607

MD.GRAY,TRIM1#

main67610-06022-E2iSXV10..NAP..XL199508-199607

OAK,TRIM4#

main67610-06050-B0iSXV10..NAP..GL199209-199309

W(SPEAKER),MEDIUM GRAY,TRIM1#

main67610-06050-E0iSXV10..NAP..GL199209-199309

W(SPEAKER),OAK,TRIM4#

main67610-06050-J0iSXV10..NAP..GL199209-199309

W(SPEAKER),DARK BLUE,TRIM8#

main67610-06051-B0iSXV10..NAP..GL; SXV10..NAP..LE199309-199408

MEDIUM GRAY,TRIM1#; W(SPEAKER),MEDIUM GRAY,TRIM1#

main67610-06051-E0iSXV10..NAP..GL; SXV10..NAP..LE199309-199408

OAK,TRIM4#; W(SPEAKER),OAK,TRIM4#

main67610-06051-K0iSXV10..NAP..LE199309-199408

TAUPE,TRIM9#

main67610-06052-B1iSXV10..NAP..(GL,LE)199408-199607

MD.GRAY,TRIM1#

main67610-06052-E1iSXV10..NAP..(GL,LE)199408-199607

OAK,TRIM4#

main67610-06052-K1iSXV10..NAP..LE199408-199607

TAUPE,TRIM9#

main67610-06081-B0iMCV10,SXV10..NAP..XE199309-199408

MEDIUM GRAY,TRIM1#

main67610-06081-E0iMCV10,SXV10..NAP..XE199309-199408

OAK,TRIM4#

main67610-06081-K0iMCV10,SXV10..NAP..XE199309-199408

TAUPE,TRIM9#

main67610-06082-B1iMCV10,SXV10..NAP..XE199408-199607

MD.GRAY,TRIM1#

main67610-06082-E1iMCV10,SXV10..NAP..XE199408-199607

OAK,TRIM4#

main67610-06082-K1iMCV10,SXV10..NAP..XE199408-199607

TAUPE,TRIM9#

main67610-06101-B0iMCV10,SXV10..NAP..XE199309-199408

W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#

main67610-06101-E0iMCV10,SXV10..NAP..XE199309-199408

W(LEATHER SEAT)-*104,OAK,TRIM4#

main67610-06102-B1iMCV10,SXV10..NAP..XE199408-199607

W(LEATHER SEAT)-*104,MD.GRAY,TRIM1#

main67610-06102-E1iMCV10,SXV10..NAP..XE199408-199607

W(LEATHER SEAT)-*104,OAK,TRIM4#

main67610-06111-B0iMCV10..NAP..SE199309-199408

MEDIUM GRAY,TRIM1#

main67610-06111-E0iMCV10..NAP..SE199309-199408

OAK,TRIM4#

main67610-06111-K0iMCV10..NAP..SE199309-199408

TAUPE,TRIM9#

main67610-06350-B0iSXV10..NAP..GL199209-199309

MEDIUM GRAY,TRIM1#

main67610-06350-E0iSXV10..NAP..GL199209-199309

OAK,TRIM4#

main67610-06350-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67610-06351-B0iSXV10..NAP..GL199309-199408

MEDIUM GRAY,TRIM1#

main67610-06351-E0iSXV10..NAP..GL199309-199408

OAK,TRIM4#

main67610-06370-B0iSXV10..NAP..DX199309-199508

MADIUM GRAY,TRIM1#

main67610-06370-E0iSXV10..NAP..DX199309-199508

OAK,TRIM4#

main67610-06370-K0iSXV10..NAP..DX199309-199508

TAUPE,TRIM9#

main67610-06371-B2iSXV10..NAP..DX199508-199607

MD.GRAY,TRIM1#

main67610-06371-E2iSXV10..NAP..DX199508-199607

OAK,TRIM4#

main67610-06371-K2iSXV10..NAP..DX199508-199607

TAUPE,TRIM9#

67601ECAP(FOR FRONT DOOR TRIM BOARD)

main90467-07066-B0×6iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

main90467-07066-E0×6iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main90467-07066-J0×6iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main90467-07066-K0×6iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

67601GPLUG, HOLE(FOR FRONT DOOR TRIM BOARD)

main90950-01746-B0×4iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

main90950-01746-E0×4iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main90950-01746-J0×4iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main90950-01746-K0×4iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

67601HRETAINER, DOOR TRIM, RH

main67771-06060×4iMCV10,SXV10..NAP199209-199607

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-06010-B0iSXV10..NAP..XL199209-199309

MEDIUM GRAY,TRIM1#

main67620-06010-E0iSXV10..NAP..XL199209-199309

OAK,TRIM4#

main67620-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67620-06011-B0iSXV10..NAP..XL199309-199408

MADIUM GRAY,TRIM1#

main67620-06011-E0iSXV10..NAP..XL199309-199408

OAK,TRIM4#

main67620-06020-B0iSXV10..NAP..XL199209-199309

W(SPEAKER),MEDIUM GRAY,TRIM1#

main67620-06020-E0iSXV10..NAP..XL199209-199309

W(SPEAKER),OAK,TRIM4#

main67620-06020-J0iSXV10..NAP..XL199209-199309

W(SPEAKER),DARK BLUE,TRIM8#

main67620-06021-B0iSXV10..NAP..XL199408-199508

MADIUM GRAY,TRIM1#

main67620-06021-E0iSXV10..NAP..XL199408-199508

OAK,TRIM4#

main67620-06022-B2iSXV10..NAP..XL199508-199607

MD.GRAY,TRIM1#

main67620-06022-E2iSXV10..NAP..XL199508-199607

OAK,TRIM4#

main67620-06050-B0iSXV10..NAP..GL199209-199309

W(SPEAKER),MEDIUM GRAY,TRIM1#

main67620-06050-E0iSXV10..NAP..GL199209-199309

W(SPEAKER),OAK,TRIM4#

main67620-06050-J0iSXV10..NAP..GL199209-199309

W(SPEAKER),DARK BLUE,TRIM8#

main67620-06051-B0iSXV10..NAP..GL; SXV10..NAP..LE199309-199408

MEDIUM GRAY,TRIM1#; W(SPEAKER),MEDIUM GRAY,TRIM1#

main67620-06051-E0iSXV10..NAP..GL; SXV10..NAP..LE199309-199408

OAK,TRIM4#; W(SPEAKER),OAK,TRIM4#

main67620-06051-K0iSXV10..NAP..LE199309-199408

TAUPE,TRIM9#

main67620-06052-B1iSXV10..NAP..(GL,LE)199408-199607

MD.GRAY,TRIM1#

main67620-06052-E1iSXV10..NAP..(GL,LE)199408-199607

OAK,TRIM4#

main67620-06052-K1iSXV10..NAP..LE199408-199607

TAUPE,TRIM9#

main67620-06081-B0iMCV10,SXV10..NAP..XE199309-199408

MEDIUM GRAY,TRIM1#

main67620-06081-E0iMCV10,SXV10..NAP..XE199309-199408

OAK,TRIM4#

main67620-06081-K0iMCV10,SXV10..NAP..XE199309-199408

TAUPE,TRIM9#

main67620-06082-B1iMCV10,SXV10..NAP..XE199408-199607

MD.GRAY,TRIM1#

main67620-06082-E1iMCV10,SXV10..NAP..XE199408-199607

OAK,TRIM4#

main67620-06082-K1iMCV10,SXV10..NAP..XE199408-199607

TAUPE,TRIM9#

main67620-06101-B0iMCV10,SXV10..NAP..XE199309-199408

W(LEATHER SEAT)-*104,MEDIUM GRAY,TRIM1#

main67620-06101-E0iMCV10,SXV10..NAP..XE199309-199408

W(LEATHER SEAT)-*104,OAK,TRIM4#

main67620-06102-B1iMCV10,SXV10..NAP..XE199408-199607

W(LEATHER SEAT)-*104,MD.GRAY,TRIM1#

main67620-06102-E1iMCV10,SXV10..NAP..XE199408-199607

W(LEATHER SEAT)-*104,OAK,TRIM4#

main67620-06111-B0iMCV10..NAP..SE199309-199408

MEDIUM GRAY,TRIM1#

main67620-06111-E0iMCV10..NAP..SE199309-199408

OAK,TRIM4#

main67620-06111-K0iMCV10..NAP..SE199309-199408

TAUPE,TRIM9#

main67620-06310-B0iSXV10..NAP..GL199209-199309

MEDIUM GRAY,TRIM1#

main67620-06310-E0iSXV10..NAP..GL199209-199309

OAK,TRIM8#

main67620-06310-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM4#

main67620-06311-B0iSXV10..NAP..GL199309-199408

MEDIUM GRAY,TRIM1#

main67620-06311-E0iSXV10..NAP..GL199309-199408

OAK,TRIM4#

main67620-06330-B0iSXV10..NAP..DX199309-199508

MADIUM GRAY,TRIM1#

main67620-06330-E0iSXV10..NAP..DX199309-199508

OAK,TRIM4#

main67620-06330-K0iSXV10..NAP..DX199309-199508

TAUPE,TRIM9#

main67620-06331-B2iSXV10..NAP..DX199508-199607

MD.GRAY,TRIM1#

main67620-06331-E2iSXV10..NAP..DX199508-199607

OAK,TRIM4#

main67620-06331-K2iSXV10..NAP..DX199508-199607

TAUPE,TRIM9#

67602ARETAINER, DOOR TRIM, LH

main67771-06060×4iMCV10,SXV10..NAP199209-199607

67638CPLATE, FRONT DOOR TRIM, NO.2 RH

main64397-06020iSXV10..NAP..GL199209-199408

main64397-33010iSXV10..NAP..XL199209-199408

67639CPLATE, FRONT DOOR TRIM, NO.2 LH

main64397-06020iSXV10..NAP..GL199209-199408

main64398-33010iSXV10..NAP..XL199209-199408

67651HGRILLE, SPEAKER DOOR, RH

main67651-06010-B0iSXV10..NAP..(DX,XL)199209-199408

MEDIUM GRAY,TRIM1#

main67651-06010-B1iSXV10..NAP..(DX,XL)199408-199607

MD.GRAY,TRIM1#

main67651-06010-E0iSXV10..NAP..(DX,XL)199209-199408

OAK,TRIM4#

main67651-06010-E1iSXV10..NAP..(DX,XL)199408-199607

OAK,TRIM4#

main67651-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67651-06010-K0iSXV10..NAP..DX199309-199408

TAUPE,TRIM9#

main67651-06010-K1iSXV10..NAP..DX199408-199607

TAUPE,TRIM9#

main67651-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

MEDIUM GRAY,TRIM1#

main67651-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

OAK,TRIM4#

main67651-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67651-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

TAUPE,TRIM9#

main67651-06030-B1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

MD.GRAY,TRIM1#

main67651-06030-E1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

OAK,TRIM4#

main67651-06030-K1iMCV10,SXV10..NAP..(LE,XE)199408-199607

TAUPE,TRIM9#

67652CGRILLE, SPEAKER DOOR, LH

main67652-06010-B0iSXV10..NAP..(DX,XL)199209-199607

MEDIUM GRAY,TRIM1#

main67652-06010-E0iSXV10..NAP..(DX,XL)199209-199607

OAK,TRIM4#

main67652-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67652-06010-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main67652-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

MEDIUM GRAY,TRIM1#

main67652-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199408

OAK,TRIM4#

main67652-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67652-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199408

TAUPE,TRIM9#

main67652-06030-B1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

MD.GRAY,TRIM1#

main67652-06030-E1iMCV10,SXV10..NAP..(GL,LE,XE)199408-199607

OAK,TRIM4#

main67652-06030-K1iMCV10,SXV10..NAP..(LE,XE)199408-199607

TAUPE,TRIM9#

67773BPOCKET, FRONT DOOR TRIM, NO.2 RH

main67773-06010-B0iSXV10..NAP..(DX,XL)199209-199607

MEDIUM GRAY,TRIM1#

main67773-06010-E0iSXV10..NAP..(DX,XL)199209-199607

OAK,TRIM4#

main67773-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67773-06010-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main67773-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

MEDIUM GRAY,TRIM1#

main67773-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

OAK,TRIM4#

main67773-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67773-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

TAUPE,TRIM9#

67774BPOCKET, FRONT DOOR TRIM, NO.2 LH

main67774-06010-B0iSXV10..NAP..XL199209-199309

MEDIUM GRAY,TRIM4#

main67774-06010-E0iSXV10..NAP..(DX,XL)199209-199607

OAK,TRIM4#

main67774-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67774-06010-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main67774-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

MEDIUM GRAY,TRIM1#

main67774-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

OAK,TRIM4#

main67774-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67774-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

TAUPE,TRIM9#

67777POCKET, FRONT DOOR TRIM, RH

main67777-06010-B0iSXV10..NAP..(DX,XL)199209-199607

MEDIUM GRAY,TRIM1#

main67777-06010-E0iSXV10..NAP..(DX,XL)199209-199607

OAK,TRIM4#

main67777-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67777-06010-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main67777-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

MEDIUM GRAY,TRIM1#

main67777-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

OAK,TRIM4#

main67777-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67777-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

TAUPE,TRIM9#

67778POCKET, FRONT DOOR TRIM, LH

main67778-06010-B0iSXV10..NAP..(DX,XL)199209-199607

MEDIUM GRAY,TRIM1#

main67778-06010-E0iSXV10..NAP..(DX,XL)199209-199607

OAK,TRIM4#

main67778-06010-J0iSXV10..NAP..XL199209-199309

DARK BLUE,TRIM8#

main67778-06010-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main67778-06020-B0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

MEDIUM GRAY,TRIM1#

main67778-06020-E0iMCV10,SXV10..NAP..(GL,LE,SE,XE)199209-199607

OAK,TRIM4#

main67778-06020-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main67778-06020-K0iMCV10,SXV10..NAP..(LE,SE,XE)199309-199607

TAUPE,TRIM9#

67811CCOVER, FRONT DOOR HOLE

main67811-06010-B0×2iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

main67811-06010-E0×2iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main67811-06010-J0×2iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main67811-06010-K0×2iMCV10,SXV10..NAP199309-199607

TAUPE,TRIM9#

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-06020iMCV10,SXV10..NAP199209-199408

RH

main68170-06030iMCV10,SXV10..NAP199408-199607

RH

main68220-06020iMCV10,SXV10..NAP199209-199408

LH

main68220-06030iMCV10,SXV10..NAP199408-199607

LH

7401ARMREST & VISOR

→ Go to FIG 74-01

74293PLATE, FRONT DOOR ARMREST, NO.1

main74293-32010×4iMCV10,SXV10..NAP199309-199607

9008046125

main90080-46125

9008235010

main90082-35010

9015940158

main90159-40158

9015940229

main90159-40229

9015960370

main90159-60370

9018904102

main90189-04102

9046706128

main90467-06128

9046709122

main90467-09122

9356014012

main93560-14012

30 parts on this diagram · 6 diagrams in section
