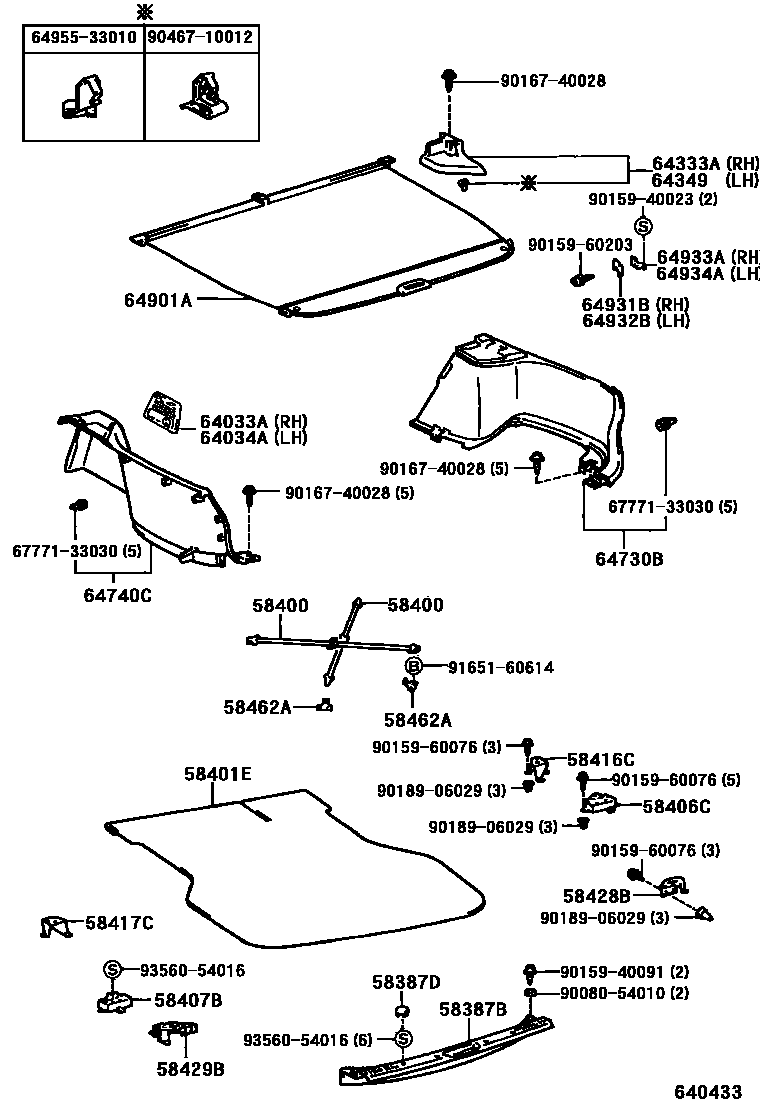

DECK BOARD & DECK TRIM COVER

58387BPLATE, REAR FLOOR FINISH

main58387-06020-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main58387-06020-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main58387-06020-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

58387DPLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-B1×6iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main90950-01503-E1×6iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main90950-01503-J0×6iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

58400BELT ASSY, LUGGAGE HOLD, NO.1

main58400-06010-B0×2iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main58400-06010-E0×2iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main58400-06010-J0×2iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

58401EBOARD SUB-ASSY, DECK

main58410-06060-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main58410-06060-E0iSXV10..NAP..WG199209-199607

MEDIUM OAK,TRIM4#

main58410-06060-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

58406CBRACKET SUB-ASSY, DECK BOARD, RH

main58406-06010iSXV10..NAP..WG199209-199607

58407BBRACKET SUB-ASSY, DECK BOARD, LH

main58407-06010iSXV10..NAP..WG199209-199607

58416CBRACKET, DECK BOARD, NO.1 RH

main58416-06020iSXV10..NAP..WG199209-199607

58417CBRACKET, DECK BOARD, NO.1 LH

main58417-06020iSXV10..NAP..WG199209-199607

58428BBRACKET, DECK BOARD, NO.5 RH

main58428-06020iSXV10..NAP..WG199209-199607

58429BBRACKET, DECK BOARD, NO.5 LH

main58429-06020iSXV10..NAP..WG199209-199607

58462ASTRIKER, LUGGAGE HOLD BELT, NO.2

main58462-06010×2iSXV10..NAP..WG199209-199607

64033AGRILLE SUB-ASSY, REAR SPEAKER, RH

main62821-06010-B0iSXV10..NAP..WG199408-199508

MEDIUM GRAY,TRIM1#

main62821-06010-B1iSXV10..NAP..WG199209-199408

MEDIUM GRAY,TRIM1#

main62821-06010-E0iSXV10..NAP..WG199408-199508

OAK,TRIM4#

main62821-06010-E1iSXV10..NAP..WG199209-199408

OAK,TRIM4#

main62821-06010-J1iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64034AGRILLE SUB-ASSY, REAR SPEAKER, LH

main62822-06010-B0iSXV10..NAP..WG199408-199508

MEDIUM GRAY,TRIM1#

main62822-06010-B1iSXV10..NAP..WG199209-199408

MEDIUM GRAY,TRIM1#

main62822-06010-E0iSXV10..NAP..WG199408-199508

OAK,TRIM4#

main62822-06010-E1iSXV10..NAP..WG199209-199408

OAK,TRIM4#

main62822-06010-J1iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64333ACOVER, TONNEAU SIDE, RH

main64333-06010-B0iSXV10..NAP..WG199209-199607

W(TONNEAU COVER),MEDIUM GRAY,TRIM1#

main64333-06010-E0iSXV10..NAP..WG199209-199607

W(TONNEAU COVER),OAK,TRIM4#

main64333-06010-J0iSXV10..NAP199209-199309

W(TONNEAU COVER),DARK BLUE,TRIM8#

main64333-06030-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64333-06030-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64333-06030-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64349COVER, TONNEAU SIDE, LH

main64349-06010-B0iSXV10..NAP..WG199209-199607

W(TONEAU COVER),MEDIUM GRAY,TRIM1#

main64349-06010-E0iSXV10..NAP..WG199209-199607

W(TONEAU COVER),OAK,TRIM4#

main64349-06010-J0iSXV10..NAP199209-199309

W(TONEAU COVER),DARK BLUE,TRIM8#

main64349-06020-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64349-06020-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64349-06020-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-06010-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64730-06010-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64730-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-06010-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64740-06010-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64740-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64901ARETRACTOR SUB-ASSY, TONNEAU COVER

main64901-06010-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64901-06010-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64901-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64931BHANGER, TONNEAU COVER, RH

main64931-32010-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64931-32010-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64931-32010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64932BHANGER, TONNEAU COVER, LH

main64931-32010-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main64931-32010-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main64931-32010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-06010iSXV10..NAP..WG199209-199607

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-06010iSXV10..NAP..WG199209-199607

6495533010CLAMP, TONNEAU COVER SUB

main64955-33010

6777133030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-33030

9008054010

main90080-54010

9015940023

main90159-40023

9015940091

main90159-40091

9015960076

main90159-60076

9015960203

main90159-60203

9016740028

main90167-40028

9018906029

main90189-06029

9046710012

main90467-10012

9165160614

main91651-60614

9356054016

main93560-54016

34 parts on this diagram · 1 diagram in section
