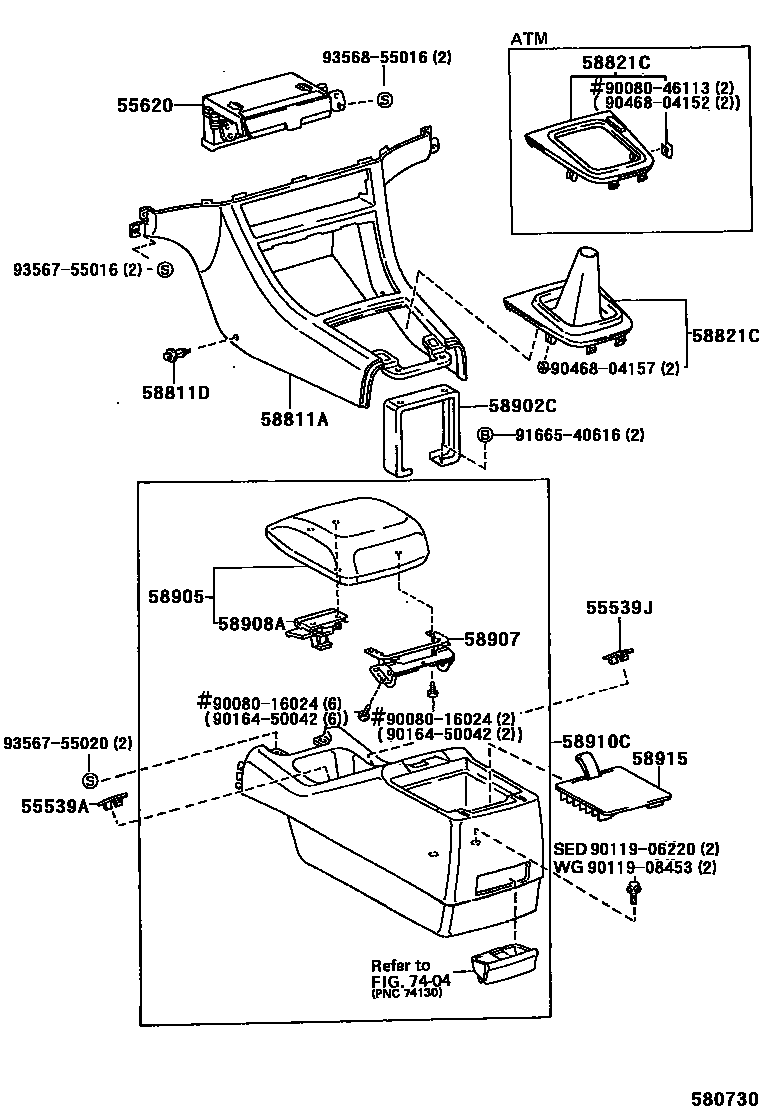

CONSOLE BOX & BRACKET

0001 1 0003 1

55539ACOVER, SPARE SWITCH HOLE

main55539-06010-B0iSXV10..NAP;MCV10..NAP..SE199209-199607

MEDIUM GRAY,TRIM1#

main55539-06010-E0iSXV10..NAP;MCV10..NAP..SE199209-199607

OAK,TRIM4#

main55539-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main55539-06010-K0iMCV10..NAP..SE;SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

55539JCOVER, SPARE SWITCH HOLE

main55539-06010-B0iMCV10..NAP..SE;SXV10..NAP..(DX,GL,LE,XE)199209-199607

MEDIUM GRAY,TRIM1#

main55539-06010-E0iMCV10..NAP..SE;SXV10..NAP..(DX,GL,LE,XE)199209-199607

OAK,TRIM4#

main55539-06010-J0iSXV10..NAP..GL199209-199309

DARK BLUE,TRIM8#

main55539-06010-K0iMCV10..NAP..SE;SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-06010-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main55620-33010-E0iSXV10..NAP199209-199210

OAK,TRIM4#

main55620-33010-S4iSXV10..NAP199209-199210

MEDIUM GRAY,TRIM1#

main55620-33010-W3iSXV10..NAP199209-199210

DARK BLUE,TRIM8#

58811ABOX, CONSOLE, FRONT

main58810-06010-B0iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

main58810-06010-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main58810-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main58810-06010-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

58811DCLIP(FOR CONSOLE BOX)

main90467-06151-B0iMCV10,SXV10..NAP199209-199607

MEDIUM GRAY,TRIM1#

main90467-06151-E0iMCV10,SXV10..NAP199209-199607

OAK,TRIM4#

main90467-06151-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main90467-06151-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

58821CPANEL, CONSOLE, UPPER

main58804-06010-B0iMCV10,SXV10..NAP..ATM199209-199607

MEDIUM GRAY,TRIM1#

main58804-06010-E0iMCV10,SXV10..NAP..ATM199209-199607

OAK,TRIM4#

main58804-06010-J0iSXV10..NAP..ATM199209-199309

DARK BLUE,TRIM8#

main58804-06010-K0iMCV10,SXV10..NAP..SED199309-199607

TAUPE,TRIM9#

main58804-33080-B0iSXV10..NAP..MTM199209-199607

MEDIUM GRAY,TRIM1#

main58804-33080-E0iSXV10..NAP..MTM199209-199607

OAK,TRIM4#

main58804-33080-J0iSXV10..NAP..MTM199209-199309

DARK BLUE,TRIM8#

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-06010iSXV10..NAP..MTM199209-199607

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-06010-B0iMCV10..NAP..SE;SXV10..NAP..(GL,LE,XE,XL)199209-199607

MEDIUM GRAY,TRIM1#

main58905-06010-E0iMCV10..NAP..SE;SXV10..NAP..(GL,LE,XE,XL)199209-199607

OAK,TRIM4#

main58905-06010-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main58905-06010-K0iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199309-199607

TAUPE,TRIM9#

main58905-06020-B0iSXV10..NAP..DX199309-199607

MEDIUM GRAY,TRIM1#

main58905-06020-E0iSXV10..NAP..DX199309-199607

OAK,TRIM4#

main58905-06020-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main58905-33050-B0iMCV10..NAP..XE199309-199607

MEDIUM GRAY,TRIM1#

main58905-33050-E0iMCV10..NAP..XE199309-199607

OAK,TRIM4#

main58905-33050-K0iMCV10..NAP..XE199309-199607

TAUPE,TRIM9#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-06010iSXV10..NAP;MCV10..NAP..SE199209-199607

main58907-33020iMCV10..NAP..XE199309-199607

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06010iSXV10..NAP;MCV10..NAP..SE199209-199607

58910CBOX ASSY, CONSOLE, REAR

main58910-06010-B0iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199309-199607

MEDIUM GRAY,TRIM1#

main58910-06010-E0iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199309-199607

OAK,TRIM4#

main58910-06010-K0iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199309-199607

TAUPE,TRIM9#

main58910-06020-B0iSXV10..NAP..WG199209-199607

MEDIUM GRAY,TRIM1#

main58910-06020-E0iSXV10..NAP..WG199209-199607

OAK,TRIM4#

main58910-06020-J0iSXV10..NAP199209-199309

DARK BLUE,TRIM8#

main58910-06040-B0iSXV10..NAP..DX199309-199607

MEDIUM GRAY,TRIM1#

main58910-06040-E0iSXV10..NAP..DX199309-199607

OAK,TRIM4#

main58910-06040-K0iSXV10..NAP..DX199309-199607

TAUPE,TRIM9#

main58910-33060-B0iMCV10..NAP..XE199309-199607

MEDIUM GRAY,TRIM1#

main58910-33060-E0iMCV10..NAP..XE199309-199607

OAK,TRIM4#

main58910-33060-K0iMCV10..NAP..XE199309-199607

TAUPE,TRIM9#

58915PANEL, BOX BOTTOM

main58915-06010iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199309-199404

main58915-06011iMCV10..NAP..SE;SXV10..NAP..(LE,XE)199404-199607

main58915-06020iSXV10..NAP..WG199209-199607

main58915-33031iMCV10..NAP..XE199309-199607

9008016024

main90080-16024

9008046113

main90080-46113

9011906220

main90119-06220

9011908453

main90119-08453

9016450042

main90164-50042

9046804152

main90468-04152

9046804157

main90468-04157

9166540616

main91665-40616

9356755016

main93567-55016

9356755020

main93567-55020

9356855016

main93568-55016

23 parts on this diagram · 2 diagrams in section
