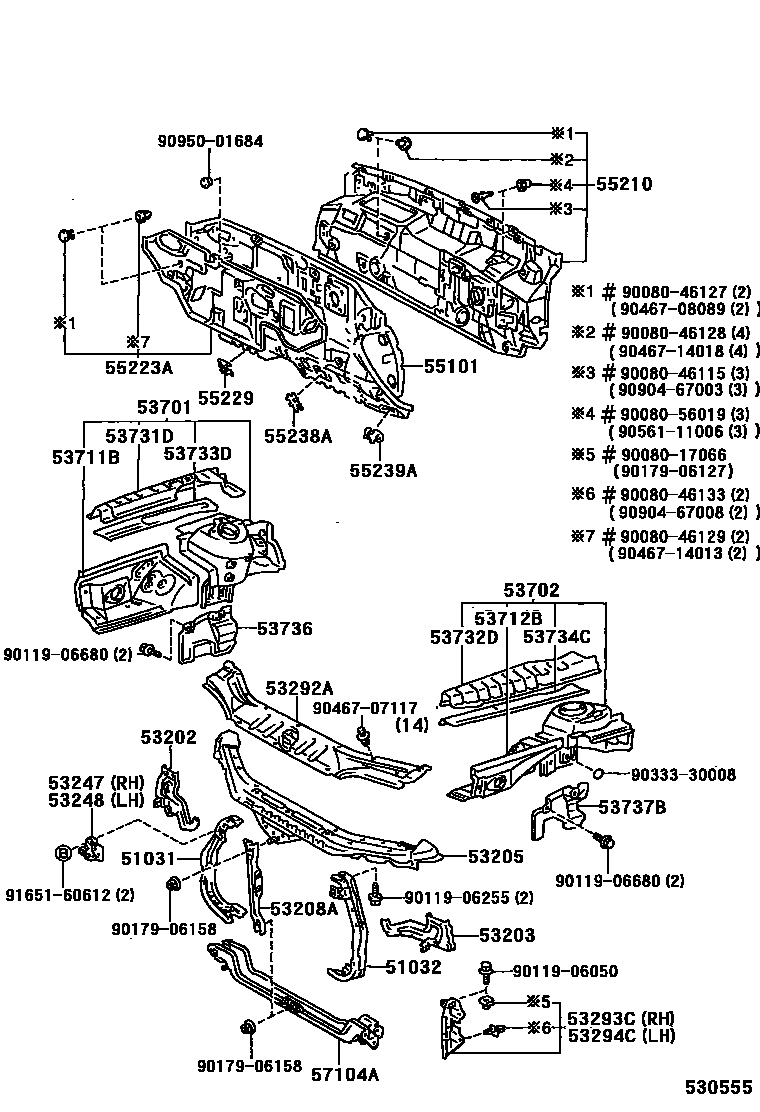

FRONT FENDER APRON & DASH PANEL

Parts diagram

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-33010i199209-199408

main51031-33020i199408-199607

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-33010i199209-199408

main51032-33020i199408-199607

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06010i199209-199309

main53202-06020i199309-199607

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06010i199209-199309

main53203-06020i199309-199607

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-33011i199209-199309

main53205-33020i199309-199408

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-33010i199209-199607

53247BRACKET, HEADLAMP MOUNTING, INNER RH

main53247-33020i199408-199607

53248BRACKET, HEADLAMP MOUNTING, INNER LH

main53248-33020i199408-199607

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-06010i199209-199408

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06010i199209-199607

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06010i199209-199607

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06010i199209-199309

main53701-06030i199309-199601

main53701-06050i199601-199607

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06010i199209-199607

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06010i199209-199309

main53711-06040i199601-199607

main53711-06900i199309-199601

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06010i199209-199607

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06011i199209-199607

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06011i199209-199607

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06010i199310-199607

(L)

main53733-33900i199209-199607

(J)

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06010i199310-199607

(L)

main53734-33900i199209-199607

(J)

53736SEAL, FRONT FENDER APRON, RH

main53736-06010i199209-199604

main53736-06020i199604-199607

53737BSEAL, FRONT FENDER APRON, LH

main53737-06010i199209-199607

55101PANEL SUB-ASSY, DASH

main55101-06010i199209-199307

main55101-06011i199307-199309

main55101-06012i199309-199409

main55101-06030i199209-199307

main55101-06032i199307-199408

main55101-06080i199409-199607

main55101-06100i199409-199607

main55101-06110i199408-199607

55210INSULATOR ASSY, DASH PANEL

main55210-06010i199209-199409

main55210-06020i199409-199607

55223AINSULATOR, DASH PANEL, OUTER

main55223-06010i199209-199309

main55223-06011i199309-199409

main55223-06020i199409-199607

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-33010i199209-199607

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-33010×3i199209-199607

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-33010×2i199209-199607

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-33010i199209-199607

9008017066

main90080-17066

9008046115

main90080-46115

9008046127

main90080-46127

9008046128

main90080-46128

9008046129

main90080-46129

9008046133

main90080-46133

9008056019

main90080-56019

9011906050

main90119-06050

9011906255

main90119-06255

9011906680

main90119-06680

9017906127

main90179-06127

9017906158

main90179-06158

9033330008

main90333-30008

9046707117

main90467-07117

9046708089

main90467-08089

9046714013

main90467-14013

9046714018

main90467-14018

9056111006

main90561-11006

9090467003

main90904-67003

9090467008

main90904-67008

9095001684

main90950-01684

9165160612

main91651-60612

50 parts on this diagram · 1 diagram in section
