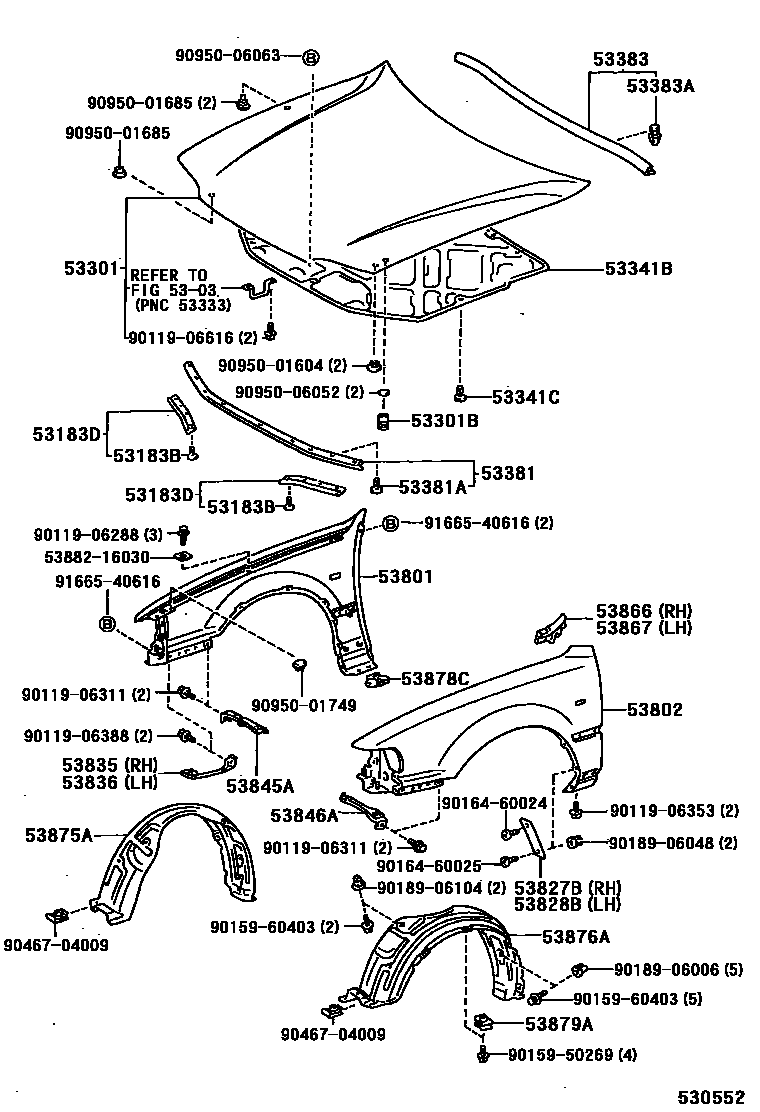

HOOD & FRONT FENDER
5303HOOD LOCK & HINGE
53183BCLIP(FOR HEADLAMP COVER SEAL)
53183DSEAL, HEADLAMP COVER TO HOOD
RH
LH
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53383SEAL, HOOD TO COWL TOP
53383ACLIP(FOR HOOD TO COWL TOP SEAL)
CENTER
RH
LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53827BPROTECTOR, FRONT FENDER SIDE PANEL
53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH
53835BRACE, FRONT FENDER TO EXTENSION, RH
53836BRACE, FRONT FENDER TO EXTENSION, LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53878CSPACER, FRONT FENDER
53879ARETAINER, FRONT FENDER LINER
5388216030PACKING, FRONT FENDER MAIN
main53882-16030
9011906288
main90119-06288
9011906311
main90119-06311
9011906353
main90119-06353
9011906388
main90119-06388
9011906616
main90119-06616
9015950269
main90159-50269
9015960403
main90159-60403
9016460024
main90164-60024
9016460025
main90164-60025
9018906006
main90189-06006
9018906048
main90189-06048
9018906104
main90189-06104
9046704009
main90467-04009
9095001604
main90950-01604
9095001685
main90950-01685
9095001749
main90950-01749
9095006052
main90950-06052
9095006063
main90950-06063
9166540616
main91665-40616
45 parts on this diagram · 1 diagram in section
