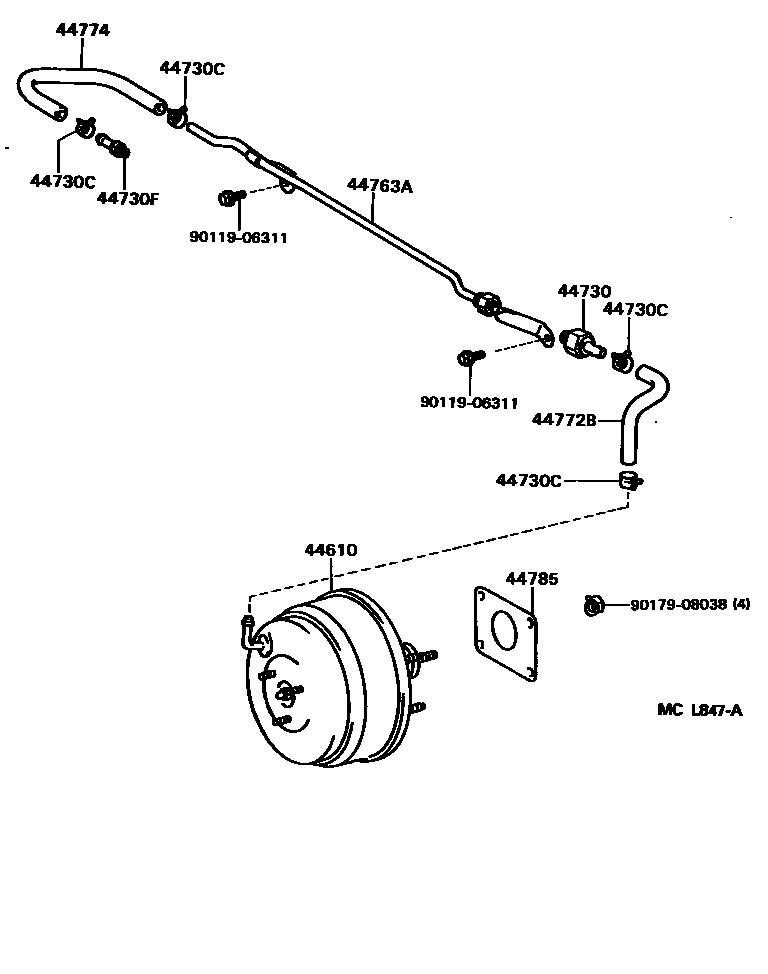

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-06010iSXV10..NAP199209-199309

main44610-06030iSXV10..NAP199309-199408

main44610-06070iSXV10..NAP199408-199607

main44610-06110iMCV10..NAP; SXV10..NAP..(LE,XE)199408-199607

W(ABS)

main44610-33190iMCV10..NAP; SXV10..NAP..(LE,XE)199309-199408

W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iMCV10,SXV10..NAP199408-199607

main44730-22120iMCV10,SXV10..NAP199209-199408

44730CCLIP(FOR VACUUM HOSE)

main90467-16002×6iMCV10,SXV10..NAP199408-199607

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iMCV10,SXV10..NAP199209-199607

44763ATUBE, HOSE TO HOSE, NO.1

main44763-07010iMCV10..NAP199408-199607

main44763-33010iMCV10,SXV10..NAP199209-199408

main44763-33020iSXV10..NAP199408-199607

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-07020iMCV10..NAP199408-199607

main44772-33040iSXV10..NAP199408-199607

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-07010iMCV10..NAP199408-199607

main44772-33020iMCV10,SXV10..NAP199209-199408

main44772-33030iSXV10..NAP199408-199607

44774HOSE, UNION TO CONNECTOR TUBE

main44774-07010iMCV10..NAP199408-199607

main44774-33010iSXV10..NAP199209-199408

main44774-33020iMCV10..NAP199309-199408

main44774-33030iSXV10..NAP199408-199607

44785GASKET, BRAKE BOOSTER

main44785-32010iMCV10,SXV10..NAP199209-199607

9011906311

main90119-06311

9017908038

main90179-08038

11 parts on this diagram · 4 diagrams in section
