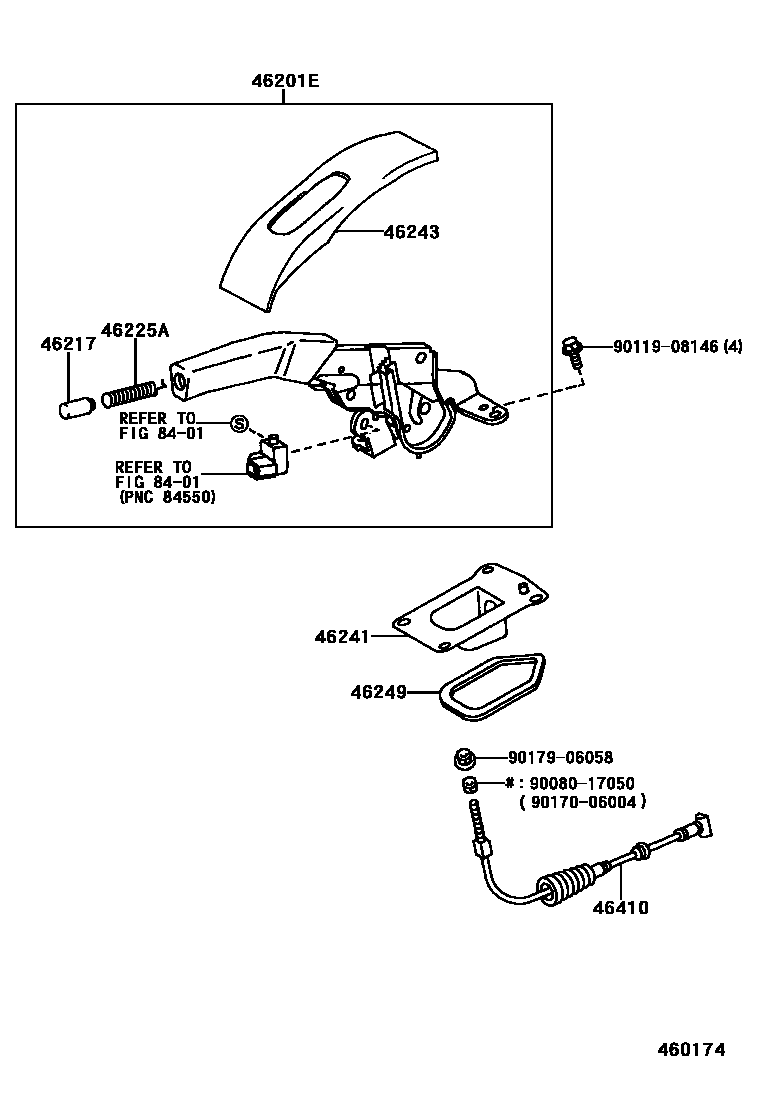

PARKING BRAKE & CABLE
46201ELEVER SUB-ASSY, PARKING BRAKE
MEDIUM GRAY,TRIM1#
OAK,TRIM4#
TAUPE,TRIM9#
MEDIUM GRAY,TRIM1#
W(ABS),MEDIUM GRAY,TRIM1#
BLACK,TRIM1#,4#
BLACK,TRIM1#,4#,8#
BLACK,TRIM1#,4#,9#
OAK,TRIM4#
W(ABS),OAK,TRIM4#
W(ABS),TAUPE,TRIM9#
TAUPE,TRIM9#
LEATHER & POWER SEAT PACKAGE,MEDIUM GRAY,TRIM1#
sub46201-33040
LEATHER & POWER SEAT PACKAGE,BLACK,TRIM1#,4#,9#
sub46201-33040
LEATHER & POWER SEAT PACKAGE,TAUPE,TRIM9#
sub46201-33040
46217KNOB, PARKING BRAKE RELEASE ROD
MEDIUM GRAY,TRIM1#
BLACK,TRIM1#,4#,8#
BLACK,TRIM1#,4#
OAK,TRIM4#
TAUPE,TRIM9#
LEATHER & POWER SEAT PACKAGE,MEDIUM GRAY,TRIM1#
sub46217-17010
LEATHER & POWER SEAT PACKAGE,BLACK,TRIM4#
sub46217-17010
LEATHER & POWER SEAT PACKAGE,TAUPE,TRIM9#
sub46217-17010
46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
LEATHER & POWER SEAT PACKAGE
46241BOOT, PARKING BRAKE LEVER
46243COVER, PARKING BRAKE LEVER
LEATHER & POWER SEAT PACKAGE
46249SHIELD, PARKING BRAKE HOLE
46410CABLE ASSY, PARKING BRAKE, NO.1
8401
9008017050
main90080-17050
9011908146
main90119-08146
9017006004
main90170-06004
9017906058
main90179-06058
12 parts on this diagram · 5 diagrams in section
