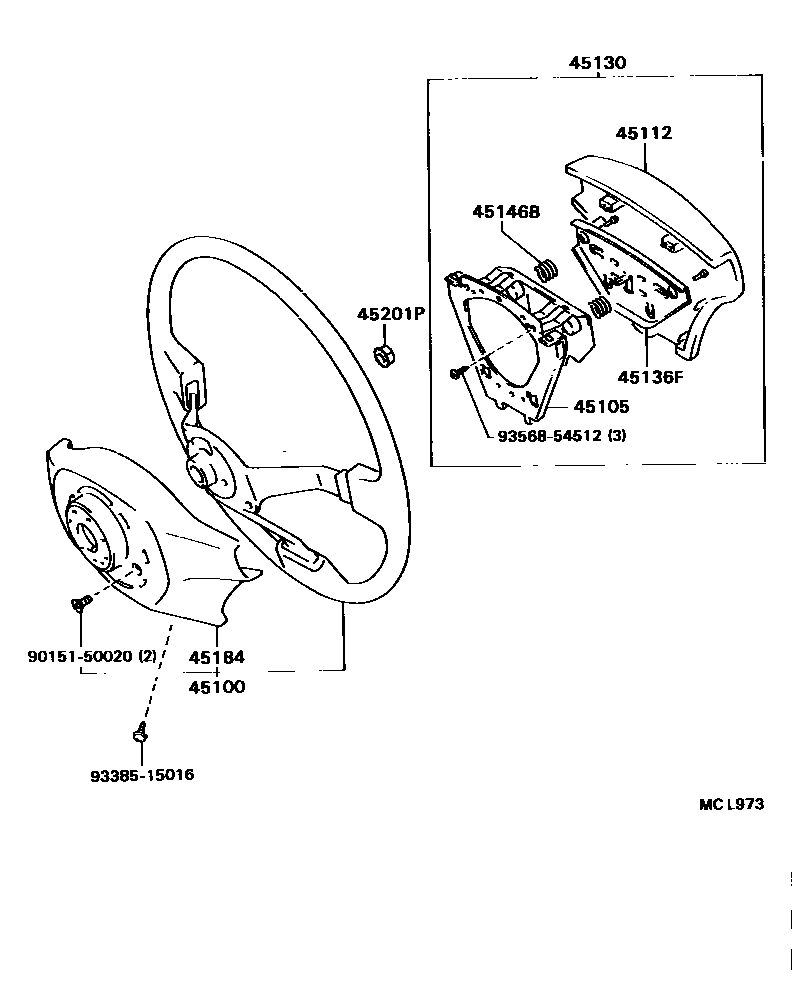

STEERING WHEEL

0001 13-SPOKE 0002 1W(*80) 0003 1W(MECHANICAL TYPE *80 & *CRC)

45100WHEEL ASSY, STEERING

main45100-06050-B0iSXV10..NAP..DX199309-199607

4-SPOKE,W(*80),MEDIUM GRAY,TRIM1#

main45100-06050-E0iSXV10..NAP..DX199309-199607

4-SPOKE,W(*80),OAK,TRIM4#

main45100-06050-K0iSXV10..NAP..DX199309-199607

4-SPOKE,W(*80),TAUPE,TRIM9#

main45100-06060-B0iMCV10,SXV10..NAP..(LE,XE)199309-199607

4-SPOKE,W(*80 & CRUISE CONTROL),MEDIUM GRAY,TRIM1#

main45100-06060-E0iMCV10,SXV10..NAP..(LE,XE)199309-199607

4-SPOKE,W(*80 & CRUISE CONTROL),OAK,TRIM4#

main45100-06060-K0iMCV10,SXV10..NAP..(LE,XE)199309-199607

4-SPOKE,W(*80 & CRUISE CONTROL),TAUPE,TRIM9#

main45100-06080-B0iMCV10,SXV10..NAP..XE199309-199607

4-SPOKE,LEATHER,LEATHER PACKAGE,MEDIUM GRAY,TRIM1#

main45100-06080-C0iMCV10..NAP..SE199309-199408

4-SPOKE,LEATHER,W(*80),BLACK,TRIM1#,4#,9#

main45100-06080-E0iMCV10,SXV10..NAP..XE199309-199607

4-SPOKE,LEATHER,LEATHER PACKAGE,OAK,TRIM4#

main45100-06080-K0iMCV10,SXV10..NAP..XE199309-199408

4-SPOKE,LEATHER,LEATHER PACKAGE,TAUPE,TRIM9#

main45100-32190-22iSXV10..NAP199209-199309

3-SPOKE,URETHANE,BLACK,TRIM1#,4#,8#

main45100-32191-22iSXV10..NAP..WG199309-199607

3-SPOKE,URETHANE,BLACK,TRIM1#,4#

main45100-33160-C0iSXV10..NAP..WG199508-199607

4-SPOKE,URETHANE,W(*80),BLACK,TRIM1#,4#

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-32060iSXV10..NAP..WG199209-199607

45112PAD, STEERING WHEEL

main45112-33100-C0iSXV10..NAP199209-199309

BLACK,TRIM1#,4#,8#

main45112-33101-C0iSXV10..NAP..WG199309-199408

BLACK,TRIM1#,4#

main45112-33160-C0iSXV10..NAP..WG199408-199607

BLACK,TRIM1#,4#

45130BUTTON ASSY, HORN

main45130-06010-B0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

MEDIUM GRAY,TRIM1#

main45130-06010-C0iMCV10..NAP..SE199309-199408

BLACK,TRIM1#,4#,9#

main45130-06010-E0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

OAK,TRIM4#

main45130-06010-K0iMCV10,SXV10..NAP..(DX,LE,XE)199309-199607

TAUPE,TRIM9#

main45130-33050-C0iSXV10..NAP..WG199508-199510

W(*80),BLACK,TRIM1#,4#

main45130-33051-C0iSXV10..NAP..WG199510-199607

W(*80),BLACK,TRIM1#,4#

main45130-33070-22iSXV10..NAP199209-199309

BLACK,TRIM1#,4#,8#

main45130-33071-22iSXV10..NAP..WG199309-199408

BLACK,TRIM1#,4#

main45130-33170-C0iSXV10..NAP..WG199408-199607

BLACK,TRIM1#,4#

45136FPLATE, HORN BUTTON CONTACT, NO.1

main45136-32110iSXV10..NAP..WG199209-199607

45146SPRING, HORN BUTTON CONTACT

main45146-20230×2iSXV10..NAP..WG199508-199607

45146BSPRING, HORN BUTTON CONTACT, NO.1

main45146-20140×3iSXV10..NAP..WG199209-199607

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-32080-C0iSXV10..NAP199209-199309

BLACK,TRIM1#,4#,8#

45201PNUT, STEERING WHEEL SET

main90179-12071iMCV10,SXV10..NAP199306-199607

main90179-12086iSXV10..NAP199209-199306

9015150020

main90151-50020

9338515016

main93385-15016

9356854512

main93568-54512

12 parts on this diagram · 3 diagrams in section
