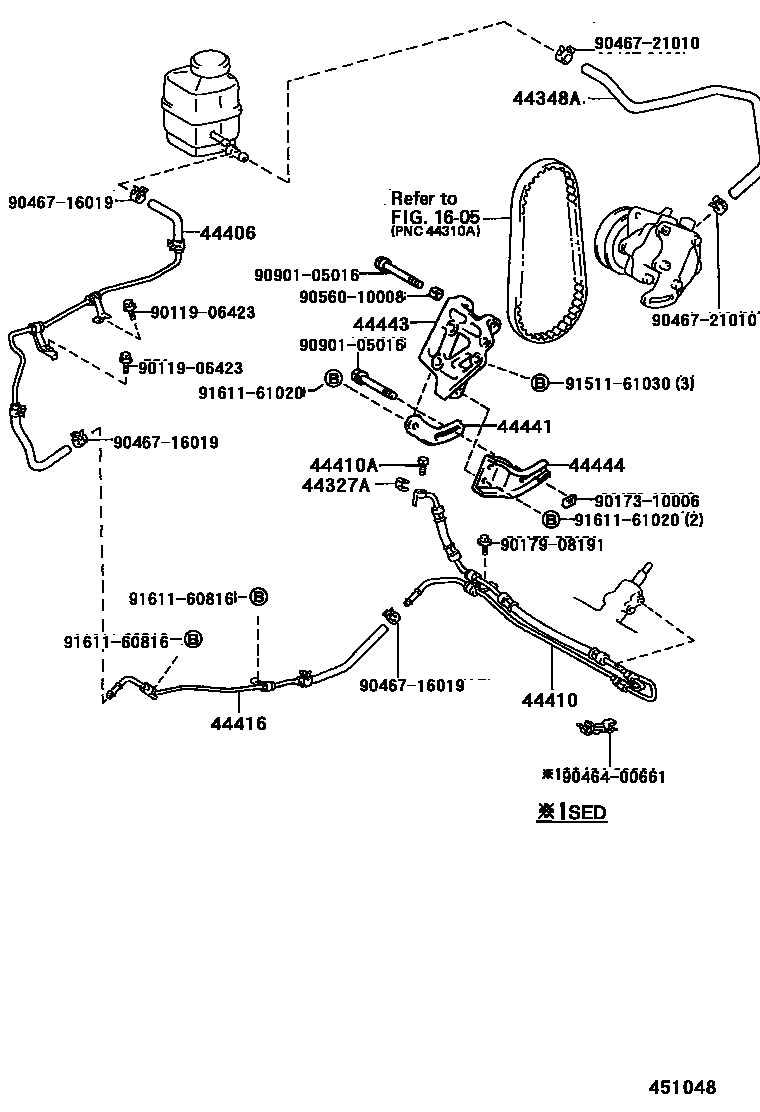

POWER STEERING TUBE

0001 1 0002 1 0003 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iMCV10,SXV10..NAP199209-199607

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06080iSXV10..NAP199311-199402

(L)

main44348-06100iMCV10..NAP199311-199402

(L)

main44348-06120iSXV10..NAP..WG199408-199607

main44348-06140iMCV10..NAP199408-199607

main44348-07010iMCV10..NAP199408-199607

(L)

main44348-33070iSXV10..NAP..SED199408-199607

(J)

main44348-33090iMCV10..NAP199309-199409

(J)

44406TUBE SUB-ASSY, RETURN

main44406-06020iSXV10..NAP199209-199607

main44406-06030iSXV10..NAP..(LE,XE)199309-199607

W(*66)

main44406-06040iMCV10..NAP199309-199408

44410TUBE ASSY, PRESSURE FEED

main44410-06010iMCV10..NAP199309-199607

main44410-06021iSXV10..NAP..WG199408-199607

main44410-06060iSXV10..NAP199209-199408

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16008iMCV10,SXV10..NAP199209-199607

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06010iMCV10,SXV10..NAP199209-199607

44441BRACKET, PUMP, FRONT

main44441-32010iSXV10..NAP..WG199408-199607

44443BRACKET, PUMP

main44443-20050iSXV10..NAP..WG199408-199607

main44443-33020iSXV10..NAP199209-199408

main44443-33030iMCV10..NAP199309-199408

main44443-33040iMCV10..NAP199408-199607

44444STAY, PUMP, REAR

main44444-20030iSXV10..NAP..WG199408-199607

9011906423

main90119-06423

9017310006

main90173-10006

9017908191

main90179-08191

9046400661

main90464-00661

9046716019

main90467-16019

9046721010

main90467-21010

9056010008

main90560-10008

9090105016

main90901-05016

9151161030

main91511-61030

9161160816

main91611-60816

9161161020

main91611-61020

20 parts on this diagram · 3 diagrams in section
