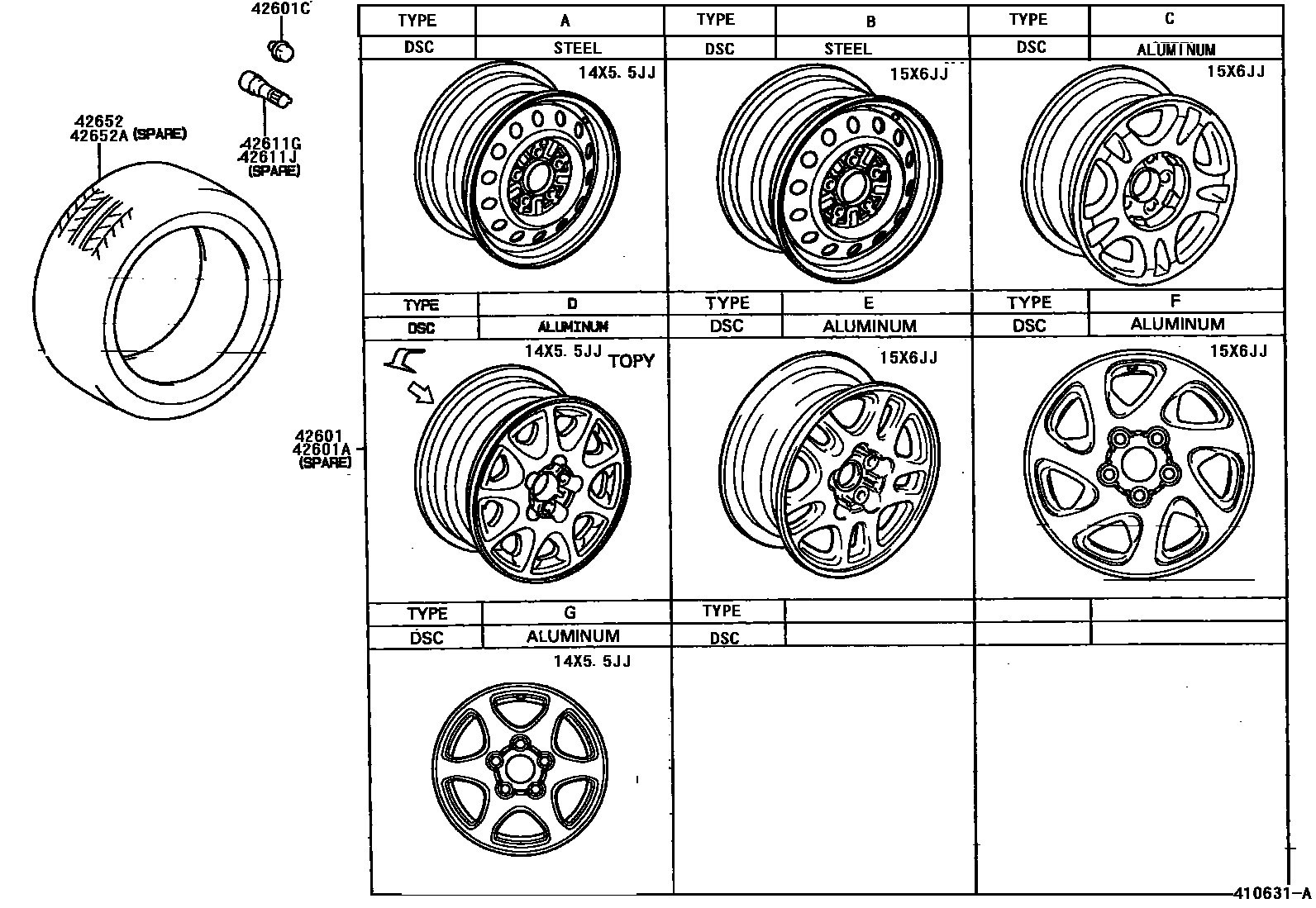

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-06010×4iSXV10..NAP..(DX,GL,LE,XL)199508-199607

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-06020×4iSXV10..NAP..XE199508-199607

14X5.5JJ,TYPE D:REFER TO ILLUSTRATION, CENTRAL LIGHT ALLOY

main42611-06040×4iMCV10..NAP..XE199309-199607

15X6JJ,#,TYPE C:REFER TO ILLUSTRATION,(L)

main42611-06070×4iMCV10..NAP..SE199309-199408

15X6JJ,TYPE E:REFER TO ILLUSTRATION

main42611-06090×4iSXV10..NAP..XE199508-199607

14X5.5JJ,TYPE D:REFER TO ILLUSTRATION

main42611-33050×4iMCV10..NAP..XE199309-199607

15X6JJ,#,TYPE C:REFER TO ILLUSTRATION,(J)

42601AWHEEL, DISC (FOR SPARE)

main42611-06010iSXV10..NAP199209-199607

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-06030iMCV10..NAP199309-199607

15X6JJ,TYPE B:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90080-17035×20iSXV10..NAP199209-199408

main90080-17036×20iSXV10..NAP..XE199508-199607

main90080-17038×20iSXV10..NAP..(GL,LE)199510-199607

main90080-17097×20iMCV10..NAP199408-199607

(L)

main90942-01021×20iSXV10..NAP..(GL,LE)199408-199510

main90942-01062×20iMCV10..NAP..XE199309-199607

(J)

42611GVALVE (FOR TUBELESS TIRE)

main90080-45001×4iMCV10,SXV10..NAP199209-199607

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45001iMCV10,SXV10..NAP199209-199607

42652TIRE

main42652-06090×4iSXV10..NAP199209-199607

195/70R14 91V

main42652-06100×4iMCV10..NAP..XE199309-199607

205/65R15 91V

42652ATIRE (FOR SPARE)

main42652-06090iSXV10..NAP199209-199607

195/70R14 91V

main42652-06100iMCV10..NAP..XE199309-199607

205/65R15 91V

7 parts on this diagram · 3 diagrams in section
