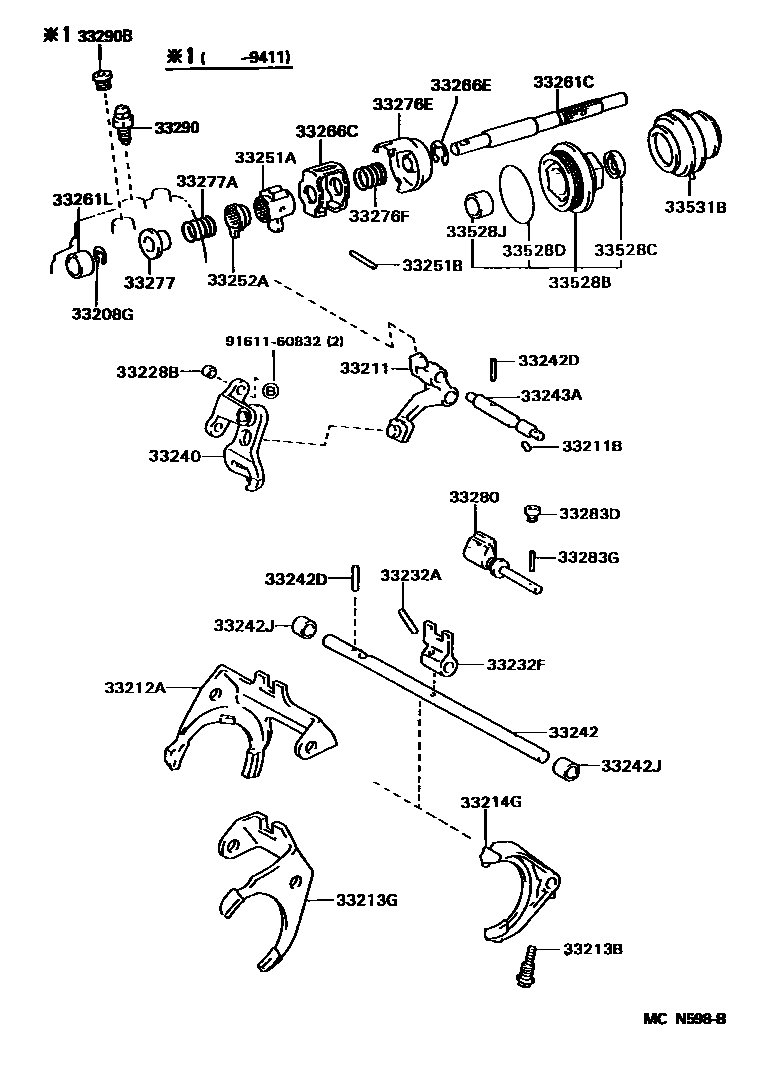

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33208GRING, E(FOR REVERSE RESTRICT PIN)
33211FORK, REVERSE SHIFT
33211BROLLER(FOR REVERSE SHIFT FORK)
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
sub33220-32024
33214GFORK, GEAR SHIFT, NO.3
33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242DPIN, SLOTTED SPRING (FOR SHIFT FORK SHAFT)
33242JBUSH (FOR SHIFT FORK SHAFT)
L=12.0
L=10.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
sub33243-32011
33251ALEVER, SHIFT, INNER NO.1
sub33251-33011
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
33252ALEVER, SHIFT, INNER NO.2
33261CSHAFT, SHIFT & SELECT LEVER
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33266ERING, E (FOR SHIFT INTERLOCK PLATE)
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33277SEAT, SELECT SPRING, NO.2
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BBALL ASSY, LOCK, NO.2
33528BCOVER, CONTROL SHAFT
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528DRING, O (FOR CONTROL SHAFT COVER)
33528JBUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
9161160832
main91611-60832
37 parts on this diagram · 1 diagram in section
