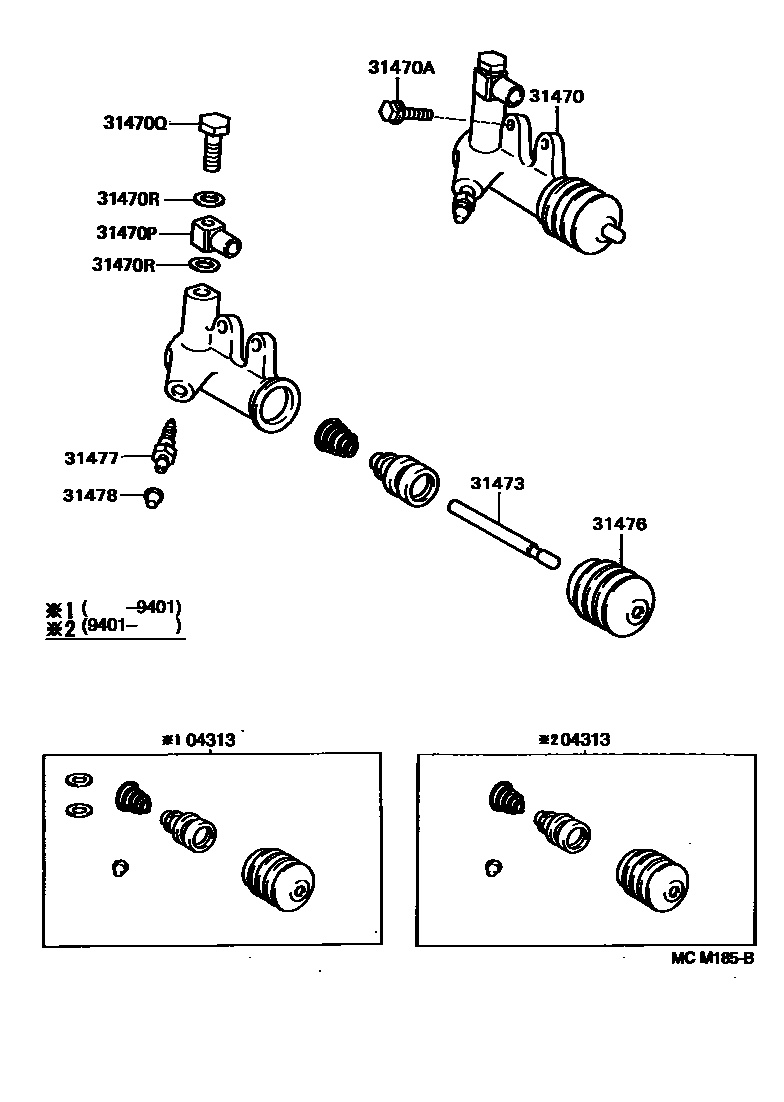

CLUTCH RELEASE CYLINDER
04313CYLINDER KIT, CLUTCH RELEASE
31470CYLINDER ASSY, CLUTCH RELEASE
sub31470-33010
31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
sub91611-B0825
31470PUNION(FOR CLUTCH RELEASE)
31470QBOLT, UNION(FOR CLUTCH RELEASE)
31470RGASKET(FOR CLUTCH RELEASE)
31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31476BOOT, CLUTCH RELEASE CYLINDER
31477PLUG, BLEEDER(FOR RELEASE CYLINDER)
31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
10 parts on this diagram · 1 diagram in section
