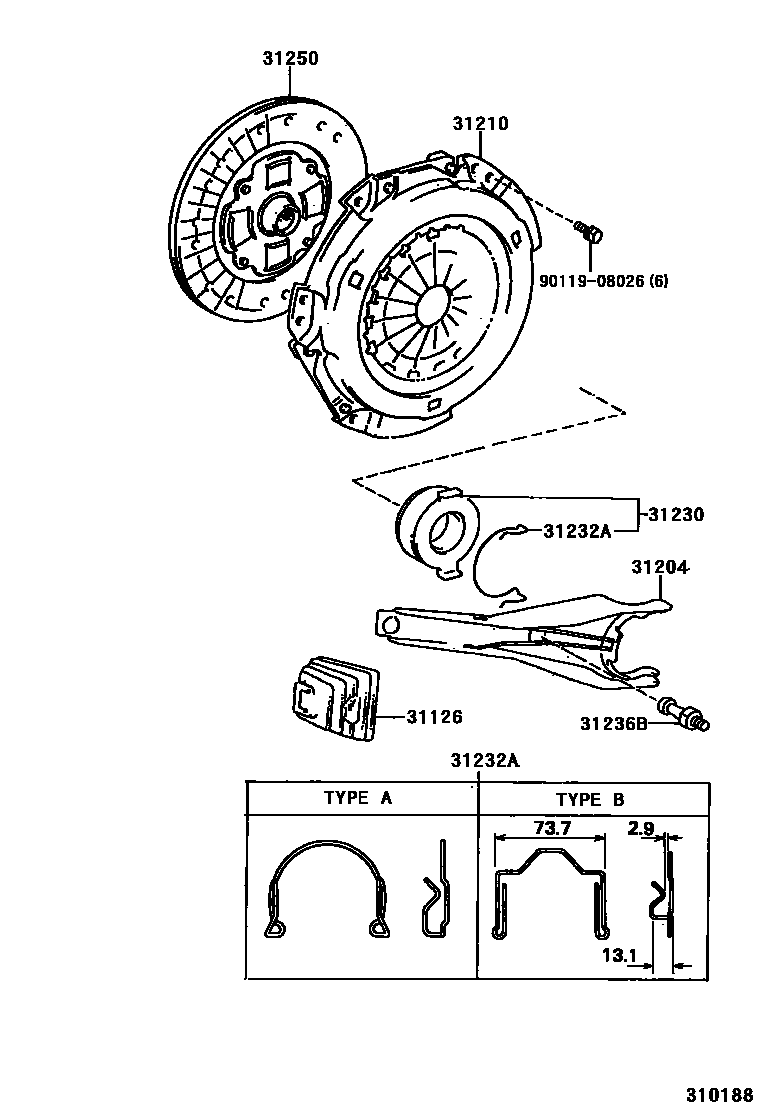

CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31204FORK SUB-ASSY, CLUTCH RELEASE
31210COVER ASSY, CLUTCH
31230BEARING ASSY, CLUTCH RELEASE
31232ACLIP, RELEASE BEARING HUB
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
31236BSUPPORT, RELEASE FORK
31250DISC ASSY, CLUTCH
9011908026
main90119-08026
8 parts on this diagram · 1 diagram in section
