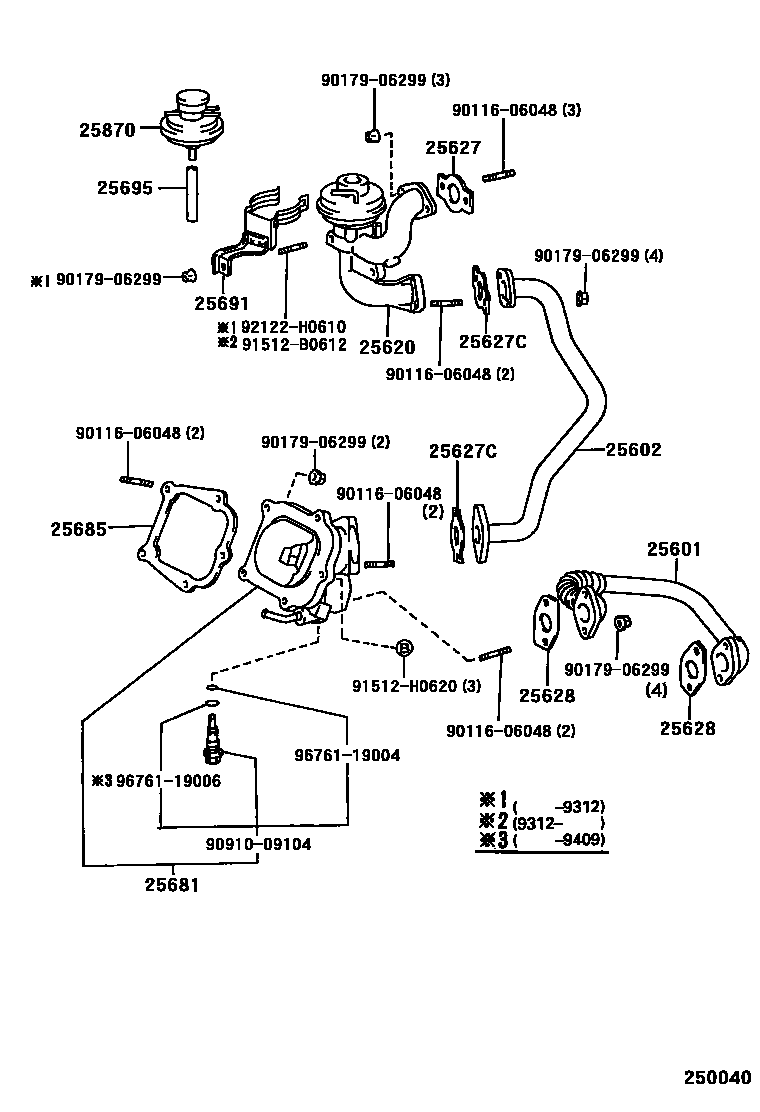

EXHAUST GAS RECIRCULATION SYSTEM
25601PIPE SUB-ASSY, EGR, NO.1
(L)
(L)
(L)
(J)
(J)
25602PIPE SUB-ASSY, EGR, NO.2
(L)
(J)
25620VALVE ASSY, EGR
25627GASKET, EGR VALVE
(L)
(J)
25627CGASKET(FOR EGR PIPE NO.2)
(L)
25628GASKET, EGR INLET
(L)
(J)
25681COOLER, EGR, NO.1
25685GASKET, EGR COOLER, NO.1
(L)
(J)
25691BRACKET, EGR VACUUM MODULATOR
25695HOSE, EGR VACUUM MODULATOR
25870VALVE ASSY, EGR VACUUM MODULATOR
9011606048
main90116-06048
9017906299
main90179-06299
9091009104
main90910-09104
91512B0612
main91512-B0612
91512H0620
main91512-H0620
92122H0610
main92122-H0610
9676119004
main96761-19004
9676119006
main96761-19006
19 parts on this diagram · 2 diagrams in section
