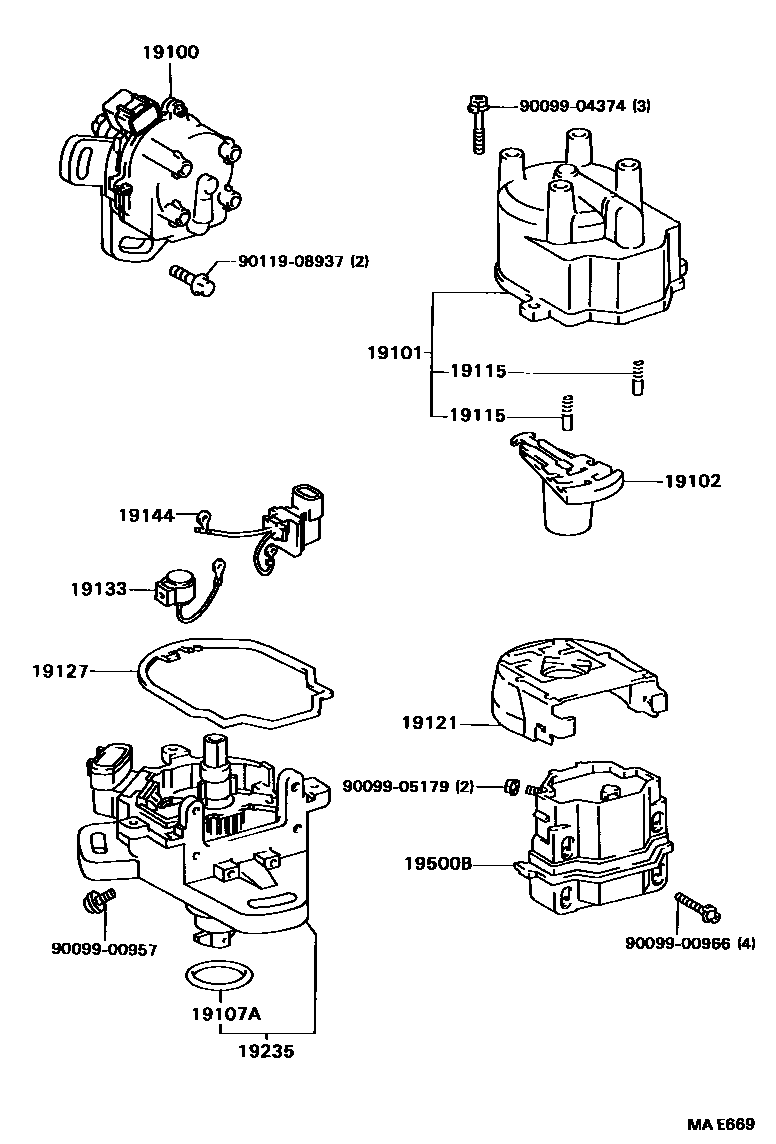

DISTRIBUTOR

0001 1 0003 1

19100DISTRIBUTOR ASSY

main19050-74010i5SFE..SXV10..NAP199209-199309

main19050-74030i5SFE..SXV10..NAP199309-199508

main19100-74230i5SFE..SXV10..NAP..SED199508-199607

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74110i5SFE..SXV10..NAP..SED199508-199607

main19101-74170i5SFE..SXV10..NAP199209-199309

main19101-74180i5SFE..SXV10..NAP199309-199508

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i5SFE..SXV10..NAP199209-199508

main19102-74040i5SFE..SXV10..NAP..SED199508-199607

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14091i5SFE..SXV10..NAP199209-199408

main90099-14127i5SFE..SXV10..NAP199408-199607

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i5SFE..SXV10..NAP199209-199508

main19115-88280i5SFE..SXV10..NAP..SED199508-199607

19121COVER, DUST PROOF

main19121-11080i5SFE..SXV10..NAP199209-199508

19127PACKING, DUST PROOF

main19127-63080i5SFE..SXV10..NAP199209-199309

main19127-74040i5SFE..SXV10..NAP..SED199508-199607

main19127-74050i5SFE..SXV10..NAP199309-199508

19133CONDENSER, DISTRIBUTOR

main19133-16240i5SFE..SXV10..NAP199209-199508

19144LEAD, DISTRIBUTOR BREAKER

main19144-74100i5SFE..SXV10..NAP..WG199508-199607

19235HOUSING, DISTRIBUTOR

main19235-74180i5SFE..SXV10..NAP199209-199508

main19235-74230i5SFE..SXV10..NAP..SED199508-199607

19500BCOIL ASSY, IGNITION

main90919-02163i5SFE..SXV10..NAP199209-199508

9009900957

main90099-00957

9009900966

main90099-00966

9009904374

main90099-04374

9009905179

main90099-05179

9011908937

main90119-08937

16 parts on this diagram · 2 diagrams in section
