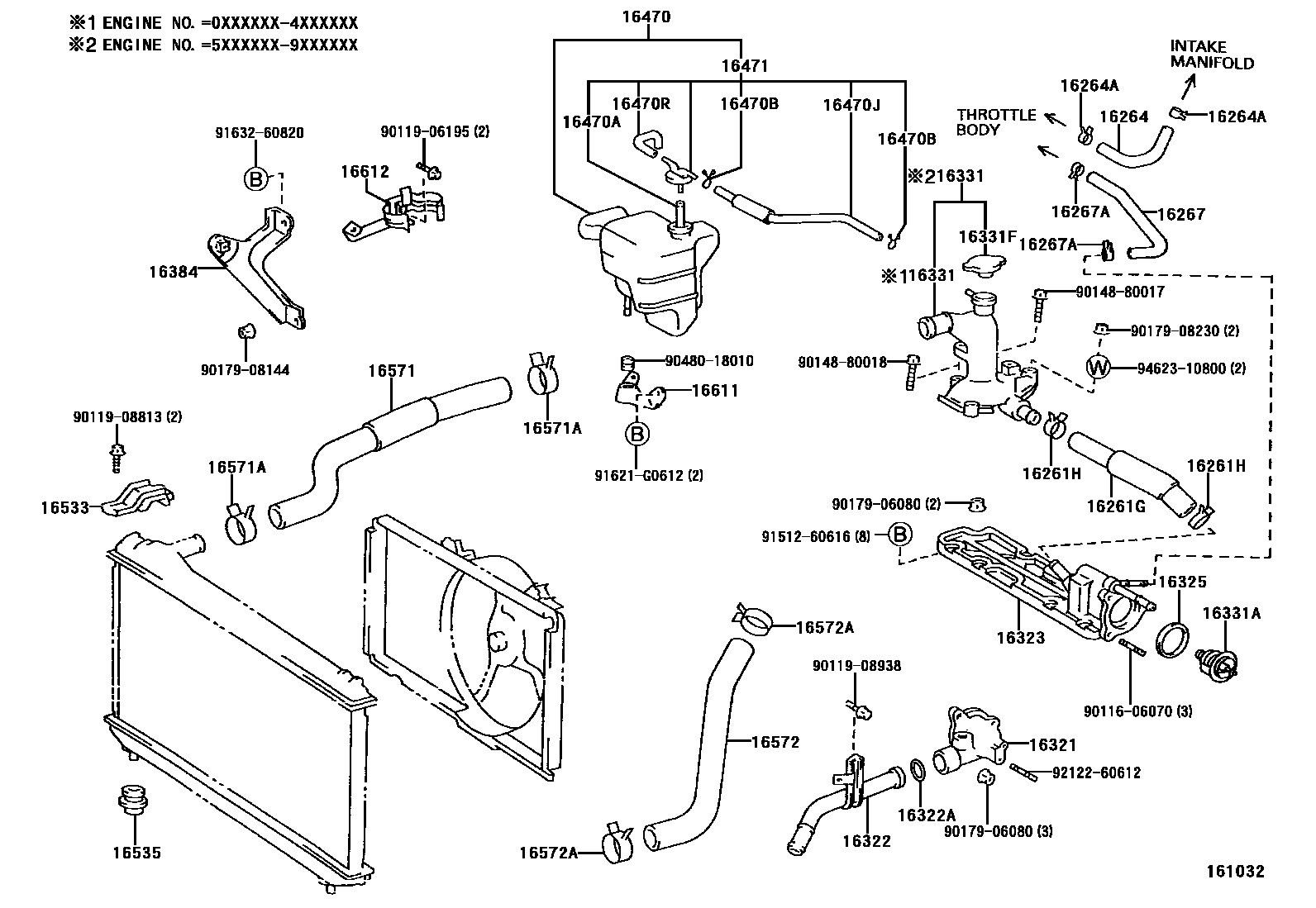

RADIATOR & WATER OUTLET
16261HOSE, WATER BY-PASS
(L)
(J)
16261GHOSE, WATER BY-PASS, NO.1
(L)
(J)
16261HCLIP(FOR WATER BY-PASS HOSE NO.1)
16264HOSE, WATER BY-PASS, NO.2
(L)
(J)
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16267HOSE, WATER BY-PASS, NO.3
(L)
(J)
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
16321INLET, WATER
(L)
(L)
(J)
(J)
16322PIPE, WATER INLET
(L)
(J)
16322ARING, O(FOR WATER INLET)
16323HOUSING, WATER INLET
(L)
(J)
16325GASKET, WATER INLET HOUSING, NO.1
16331OUTLET, WATER
ENGINE NO.=5XXXXXX-9XXXXXX
(L)
(L)
(L)
ENGINE NO.=0XXXXXX-4XXXXXX
(J)
16331ATHERMOSTAT
*WAX 82-95
*WAX 82-95
*WAX 82-95
16331FCAP SUB-ASSY(FOR WATER OUTLET)
16384BRACKET, FAN BELT ADJUSTING BAR
16470TANK ASSY, RADIATOR RESERVE
(L)
(L)
(J)
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
SALGA
L=600(*H,L=140)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470JHOSE, NO.3(FOR RADIATOR RESERVE TANK)
SALGA
*H,L=890,*ND
*H,L=575
16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)
SALGA
*ND
16471CAP SUB-ASSY, RESERVE TANK
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
(L)
(J)
16571HOSE, RADIATOR, INLET
(L)
(L)
(J)
(J)
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
(L)
(L)
(L)
(J)
(J)
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16611BRACKET, RADIATOR RESERVE TANK
NO.1,(L)
NO.1,(J)
NO.2,(L)
NO.2,(L)
NO.2,(J)
NO.2,(J)
16612BRACKET, RADIATOR RESERVE TANK, NO.2
9011606070
main90116-06070
9011906195
main90119-06195
9011908813
main90119-08813
9011908938
main90119-08938
9014880017
main90148-80017
9014880018
main90148-80018
9017906080
main90179-06080
9017908144
main90179-08144
9017908230
main90179-08230
9048018010
main90480-18010
9151260616
main91512-60616
91621G0612
main91621-G0612
9163260820
main91632-60820
9212260612
main92122-60612
9462310800
main94623-10800
45 parts on this diagram · 6 diagrams in section
